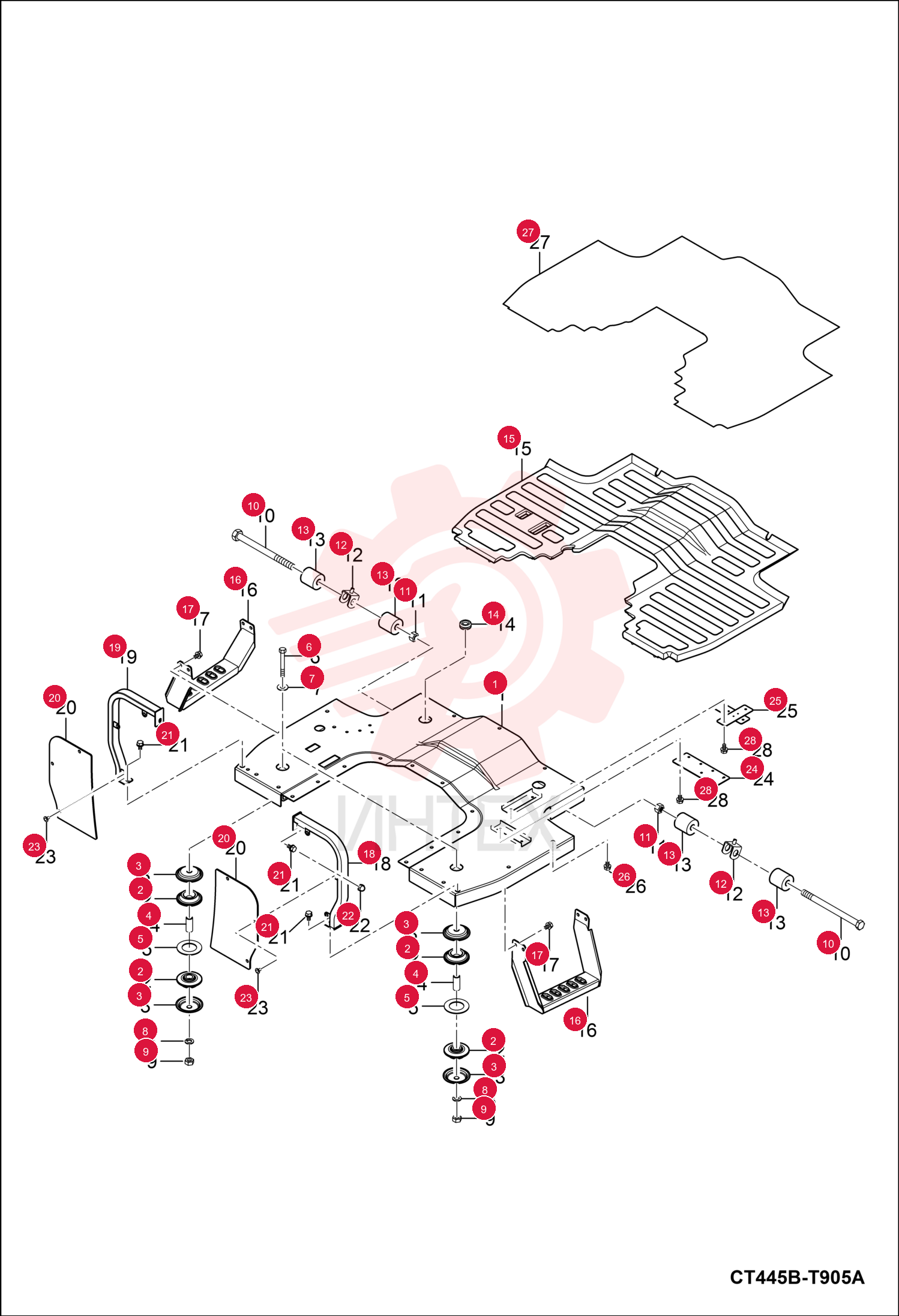

PLATE, FLOOR 7013057 (1)

PLATE, FLOOR 7013057 (1)

PLATE, FLOOR 7013057 (1)

1 7013057

  • 7013057 - PLATE
  • FLOOR
  • Was 7002682

2 6697202

  • 6697202 - WASHER
  • CUSHION

3 6697677

  • 6697677 - STOP

4 6696704

  • 6696704 - SPACER

5 7002523

  • 7002523 - COLLAR

6 6694004

  • 6694004 - BOLT

7 7002315

  • 7002315 - WASHER
  • PLAIN

8 6694094

  • 6694094 - WASHER SPRING

9 6694044

  • 6694044 - NUT

10 7002493

  • 7002493 - BOLT

11 6694061

  • 6694061 - NUT

12 7002519

  • 7002519 - BRACKET

13 6697201

  • 6697201 - BUSHING CUSHION

14 6696060

  • 6696060 - GROMMET

15 7002415

  • 7002415 - MAT
  • STEP

16 7002681

  • 7002681 - STEP

17 6694027

  • 6694027 - BOLT FLANGE

18 7002256

  • 7002256 - BRACKET
  • FLOOR

19 7002343

  • 7002343 - BRACKET
  • FLOOR

20 7002625

  • 7002625 - PLATE

21 6694027

  • 6694027 - BOLT FLANGE

22 6695694

  • 6695694 - CAP
  • NUT

23 6695597

  • 6695597 - BOLT
  • RIVET

24 7002210

  • 7002210 - PLATE
  • HARNESS

25 7002211

  • 7002211 - PLATE
  • HARNESS

26 6695557

  • 6695557 - BOLT

27 7002176

  • 7002176 - PAD

28 6694026

  • 6694026 - BOLT FLANGE
