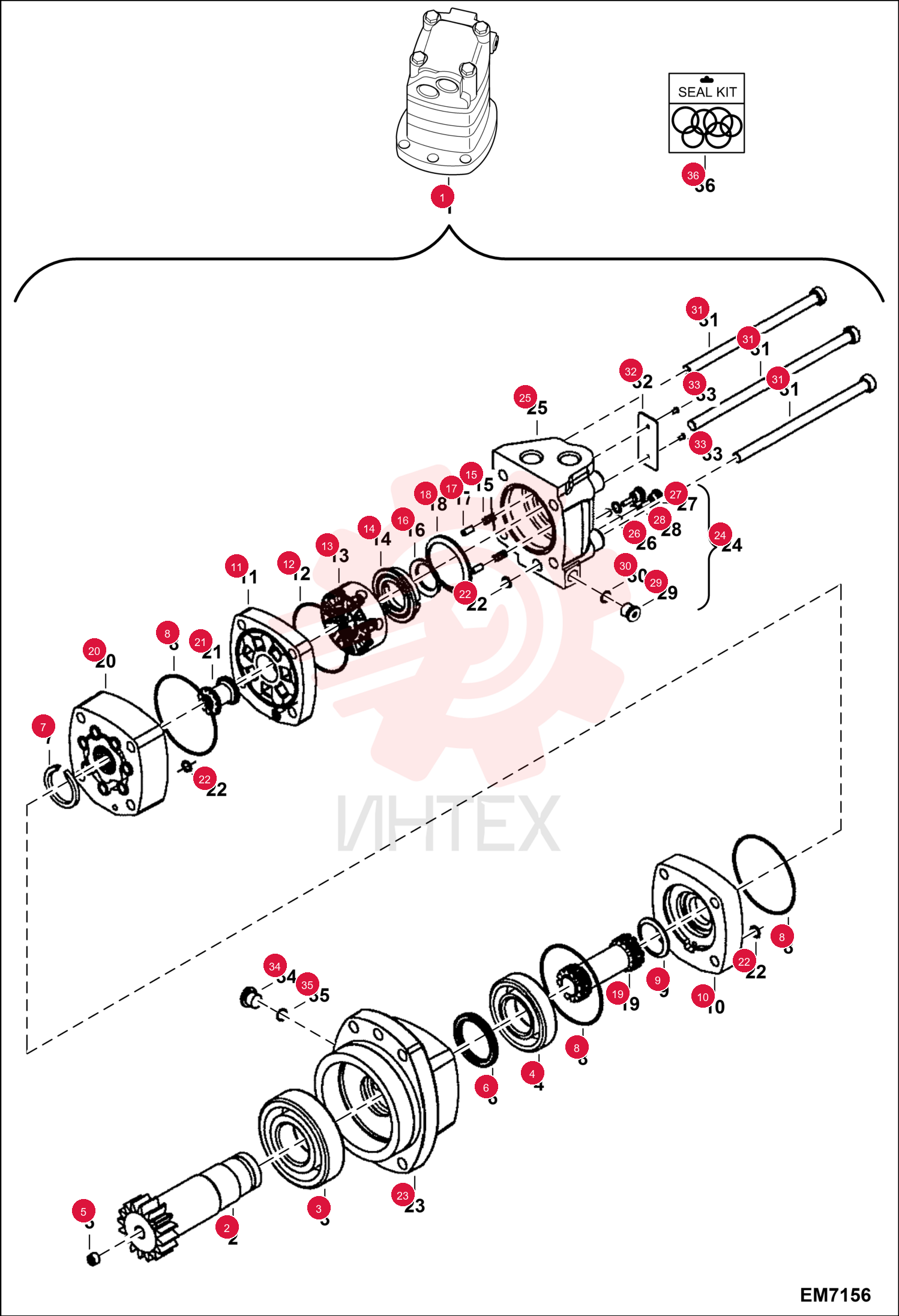

SLEW MOTOR 6693416 (1)

SLEW MOTOR 6693416 (1)

SLEW MOTOR 6693416 (1)

1 6693416

  • 6693416 - SLEW MOTOR
  • Ref. 2-35

2 7001008

  • 7001008 - GEAR PINION

3 7001009

  • 7001009 - BEARING BALL

4 1992098

  • 1992098 - SEAL

5 1992080

  • 1992080 - WEAR PLATE

6 1992085

  • 1992085 - PLATE VLV

7 6653297

  • 6653297 - O-RING

8 6684144

  • 6684144 - VALVE

9 6630027

  • 6630027 - PLATE

10 1992088

  • 1992088 - SPRING

11 1992102

  • 1992102 - PIN

12 7001010

  • 7001010 - DRIVE

13 7001011

  • 7001011 - HOUSING MOTOR

14 1992084

  • 1992084 - DR VALVE

15 7001012

  • 7001012 - ORING

16 6651950

  • 6651950 - BOLT
  • Was 6630030

17 7001013

  • 7001013 - PLUG

18 6669445

  • 6669445 - O'RING

19 7001014

  • 7001014 - KIT
  • SEAL
  • Ref. 6
  • 8-9
  • 12
  • 16
  • 18
  • 22
  • 28 & 30
