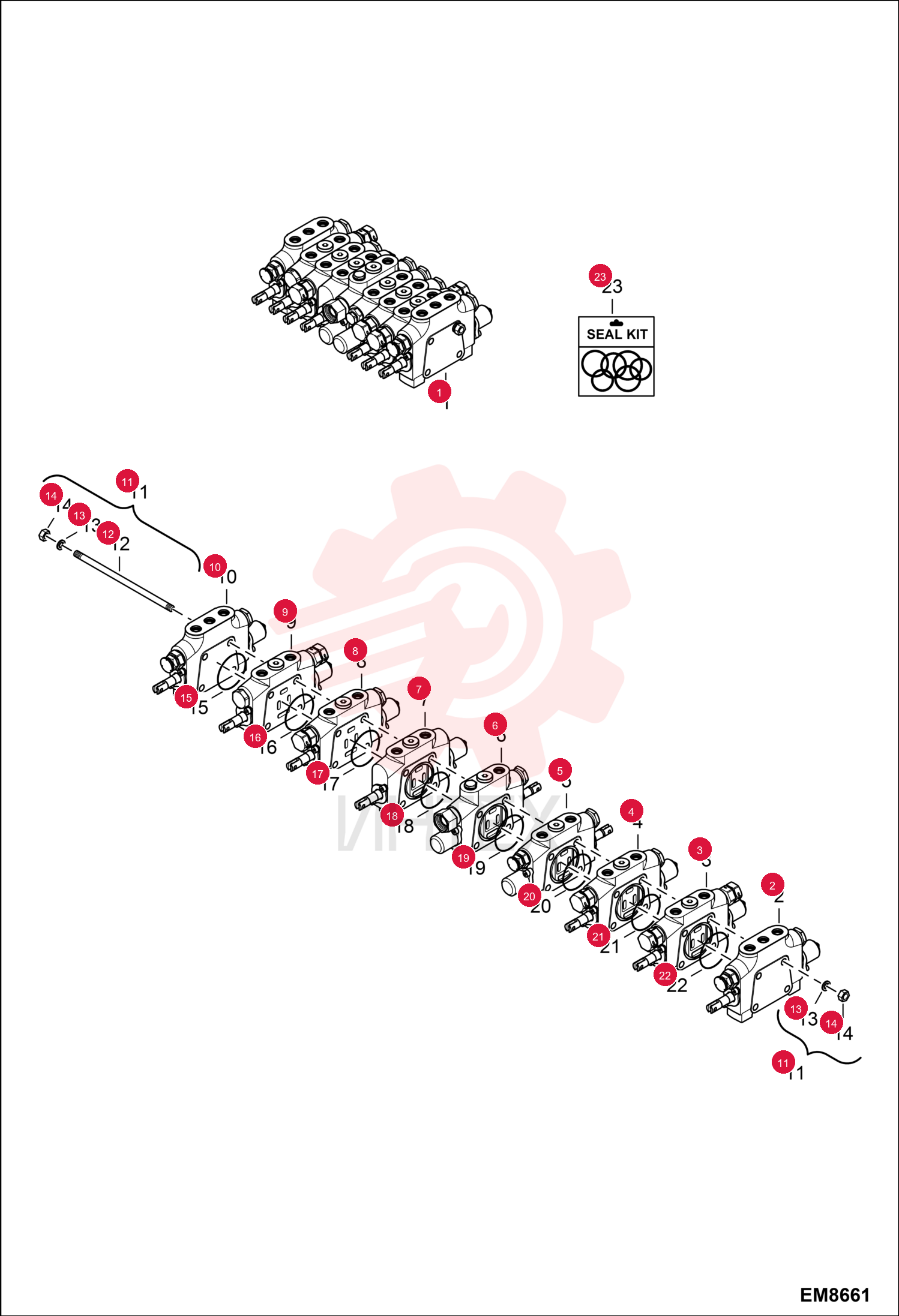

VALVE SECTION 7000525 (2)

VALVE SECTION 7000525 (2)

VALVE SECTION 7000525 (2)

1 7000525

  • 7000525 - VALVE SECTION
  • - LH travel

2 7022008

  • 7022008 - VALVE
  • SECTION
  • - slew

3 7022009

  • 7022009 - VALVE
  • SECTION
  • - arm

4 7000528

  • 7000528 - VALVE SECTION
  • - offset

5 7000529

  • 7000529 - VALVE SECTION
  • - aux

6 7000530

  • 7000530 - VALVE SECTION
  • - blade

7 7022010

  • 7022010 - VALVE
  • SECTION
  • - bucket

8 7022011

  • 7022011 - VALVE
  • SECTION
  • - boom

9 7000533

  • 7000533 - VALVE SECTION
  • - RH travel

10 7000514

  • 7000514 - KIT TIE ROD
  • Ref. 12-14

11 7022012

  • 7022012 - KIT
  • SEAL
  • Ref. 15-22
