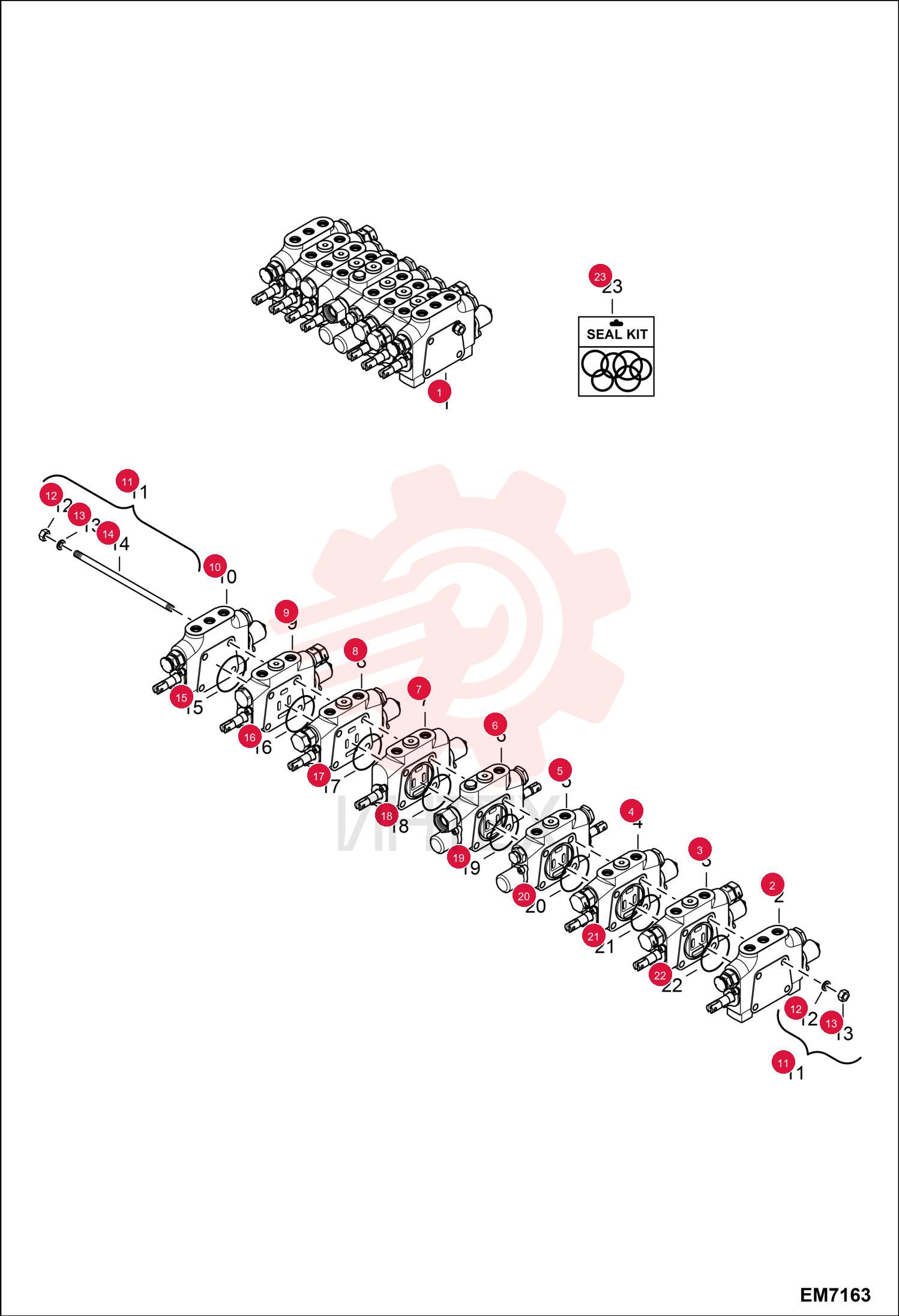

VALVE SECTION 7000525 (1)

VALVE SECTION 7000525 (1)

VALVE SECTION 7000525 (1)

1 7000525

  • 7000525 - VALVE SECTION
  • - LH travel

2 7000526

  • 7000526 - VALVE SECTION
  • slew

3 7010907

  • 7010907 - VALVE SECTION
  • arm - Was 7000527

4 7000528

  • 7000528 - VALVE SECTION
  • - offset

5 7000529

  • 7000529 - VALVE SECTION
  • - aux

6 7000530

  • 7000530 - VALVE SECTION
  • - blade

7 7189616

  • 7189616 - VALVE SECTION
  • bucket - Was 7000531

8 7000532

  • 7000532 - VALVE SECTION
  • boom

9 7000533

  • 7000533 - VALVE SECTION
  • RH travel

10 7000514

  • 7000514 - KIT TIE ROD
  • Ref. 12-14

11 7000545

  • 7000545 - GASKET KIT
  • Ref. 15-22
