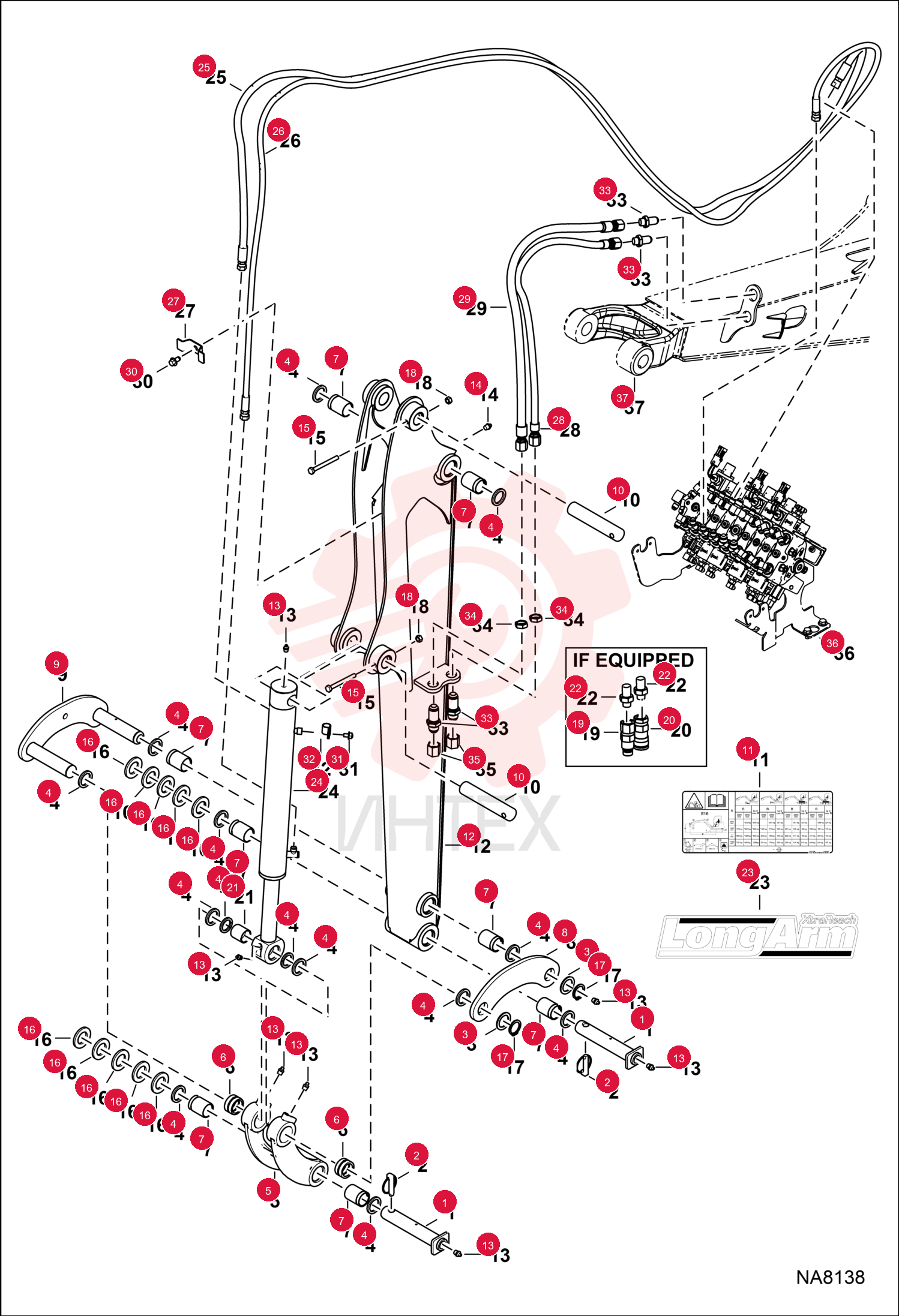

PIN, PIVOT 6539737 (3)
1 6539737
- 6539737 - PIN
- PIVOT
- 183 mm (7.25") long
2 6560382
- 6560382 - PIN
- LOCK
3 6589699
- 6589699 - WASHER
4 6653534
- 6653534 - SEAL
- OIL 5
5 6802218
- 6802218 - LINK
- BUCKET MACHINED
- Was 7302031
6 6802588
- 6802588 - BUSHING
- PRESS FIT
7 7100276
- 7100276 - BUSHING
8 7107768
- 7107768 - LINK
- GUIDE LOOSE
9 7107769
- 7107769 - LINK WA
- GUIDE
10 7176919
- 7176919 - PIN
11 7188324
- 7188324 - DECAL
- LIFT CAPACITY
12 7231385
- 7231385 - ARM W/A
- 1270 mm (50") long - Was 7208624
13 10H25
- 10H25 - FTG GREASE STRAIGHT
14 10H35
- 10H35 - FTG GREASE STRAIGHT
- straight
15 1CM875
- 1CM875 - BOLT
- was 1CM880
16 1EM280
- 1EM280 - WASHER
- FLAT
- Was 1EM270
17 22J19
- 22J19 - SNAP RING
18 16DM8
- 16DM8 - NUT
- was 4DM8
19 7246791EF
- 7246791EF - COUPLER FF MALE 1/2 BODY 3/4 SAE THREAD
20 7246791
- 7246791 - COUPLER FF MALE 1/2
- - Was 7246777
21 7246790EF
- 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD
22 7246790
- 7246790 - COUPLER FF FEM 1/2
- - Was 6672960
23 6804060
- 6804060 - BUSHING
24 6812816
- 6812816 - ADAPTER
25 7147433
- 7147433 - DECAL
- ARM LONG
26 7167819
- 7167819 - CYLINDER ASSY BUCKET
27 7173099
- 7173099 - ASSY
- HOSE
28 7173100
- 7173100 - ASSY
- HOSE
29 7244104
- 7244104 - CLAMP
- Was 7174104
30 7208793
- 7208793 - HOSE
- HYD ASSY
31 7208795
- 7208795 - HOSE
- HYD ASSY
32 26GM10020
- 26GM10020 - SCREW HEX THRDRLG
33 29CM812
- 29CM812 - BOLT
34 30H38
- 30H38 - CLIP
35 45K7
- 45K7 - CONNECTR
36 86F7
- 86F7 - NUT 5
37 36K7
- 36K7 - FITTING
