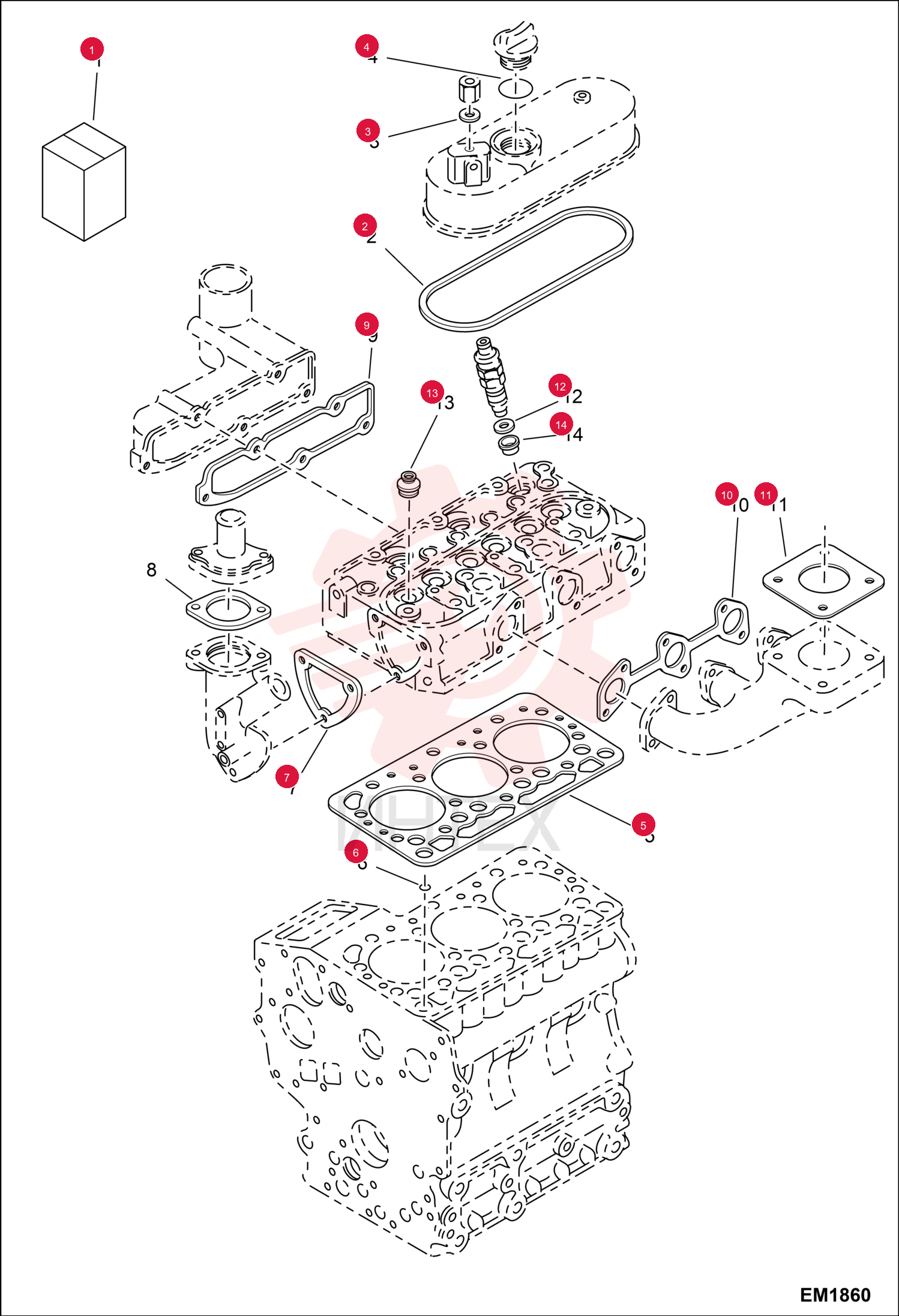

UPPER GASKET KIT TIER II ENGINE 6689009

UPPER GASKET KIT TIER II ENGINE 6689009

UPPER GASKET KIT TIER II ENGINE 6689009

1 6689009

  • 6689009 - UPPER GASKET KIT TIER II ENGINE
  • Ref. 2-14

2 6670372

  • 6670372 - GASKET

3 3974972

  • 3974972 - GASKET

4 3966602

  • 3966602 - O RING

5 7000501

  • 7000501 - GASKET
  • Was 6670354

6 3974038

  • 3974038 - O-RING

7 6670500

  • 6670500 - GASKET

8 6670535

  • 6670535 - GASKET

9 6670530

  • 6670530 - ПРОКЛАДКА КОЛЛЕКТОРА ВЫПУСКНОГО
  • BOBCAT

10 MG60008

  • MG60008 - ПРОКЛАДКА КОЛЛЕКТОРА ВЫПУСКНОГО
  • AUTOWELT

11 6575580

  • 6575580 - GASKET

12 6655218

  • 6655218 - GASKET

13 6670517

  • 6670517 - SEAL

14 6655872

  • 6655872 - SEAL
