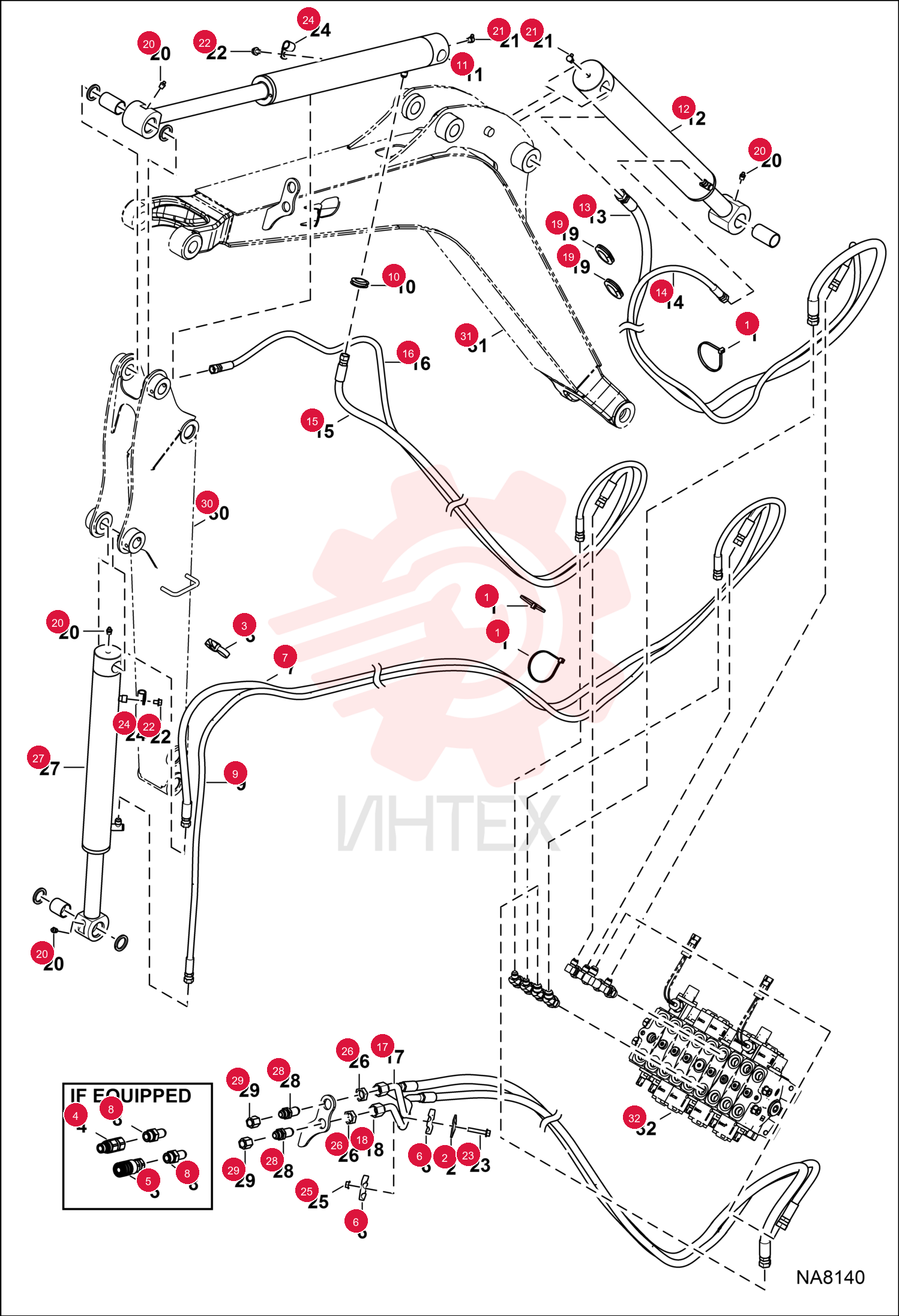

STRAP, TIE 6624289 (5)

STRAP, TIE 6624289 (5)

STRAP, TIE 6624289 (5)

1 6624289

  • 6624289 - STRAP
  • TIE

2 6652521

  • 6652521 - PLATE

3 6678668

  • 6678668 - STRAP

4 7246791

  • 7246791 - COUPLER FF MALE 1/2
  • - Was 7246777

5 7246791EF

  • 7246791EF - COUPLER FF MALE 1/2 BODY 3/4 SAE THREAD

6 7246790

  • 7246790 - COUPLER FF FEM 1/2
  • - Was 6672960

7 7246790EF

  • 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD

8 6701893

  • 6701893 - CLAMP

9 7173101

  • 7173101 - HOSE
  • HYD

10 6812816

  • 6812816 - ADAPTER

11 7173102

  • 7173102 - HOSE
  • HYD

12 7135240

  • 7135240 - GROMMET ELIPTICAL

13 7168224

  • 7168224 - CYLINDER
  • HYDRAULIC

14 7168435

  • 7168435 - CYLINDER ASSY BOOM

15 7204432

  • 7204432 - HOSE HYDRAULIC ASSY
  • Was 7173095

16 7173096

  • 7173096 - HOSE ASSEMBLY

17 7173097

  • 7173097 - HOSE ASSEMBLY

18 7173098

  • 7173098 - HOSE ASSEMBLY

19 7173108

  • 7173108 - HOSE TUBE ASSY

20 7173764

  • 7173764 - GROMMET

21 10H25

  • 10H25 - FTG GREASE STRAIGHT

22 12H15

  • 12H15 - FTG GREASE 90

23 29CM812

  • 29CM812 - BOLT

24 29CM845

  • 29CM845 - SCREW HEX FLANGE

25 30H38

  • 30H38 - CLIP

26 43DM8

  • 43DM8 - NUT FLANGED HEX

27 86F7

  • 86F7 - NUT 5

28 7167819

  • 7167819 - CYLINDER ASSY BUCKET

29 45K7

  • 45K7 - CONNECTR

30 36K7

  • 36K7 - FITTING
