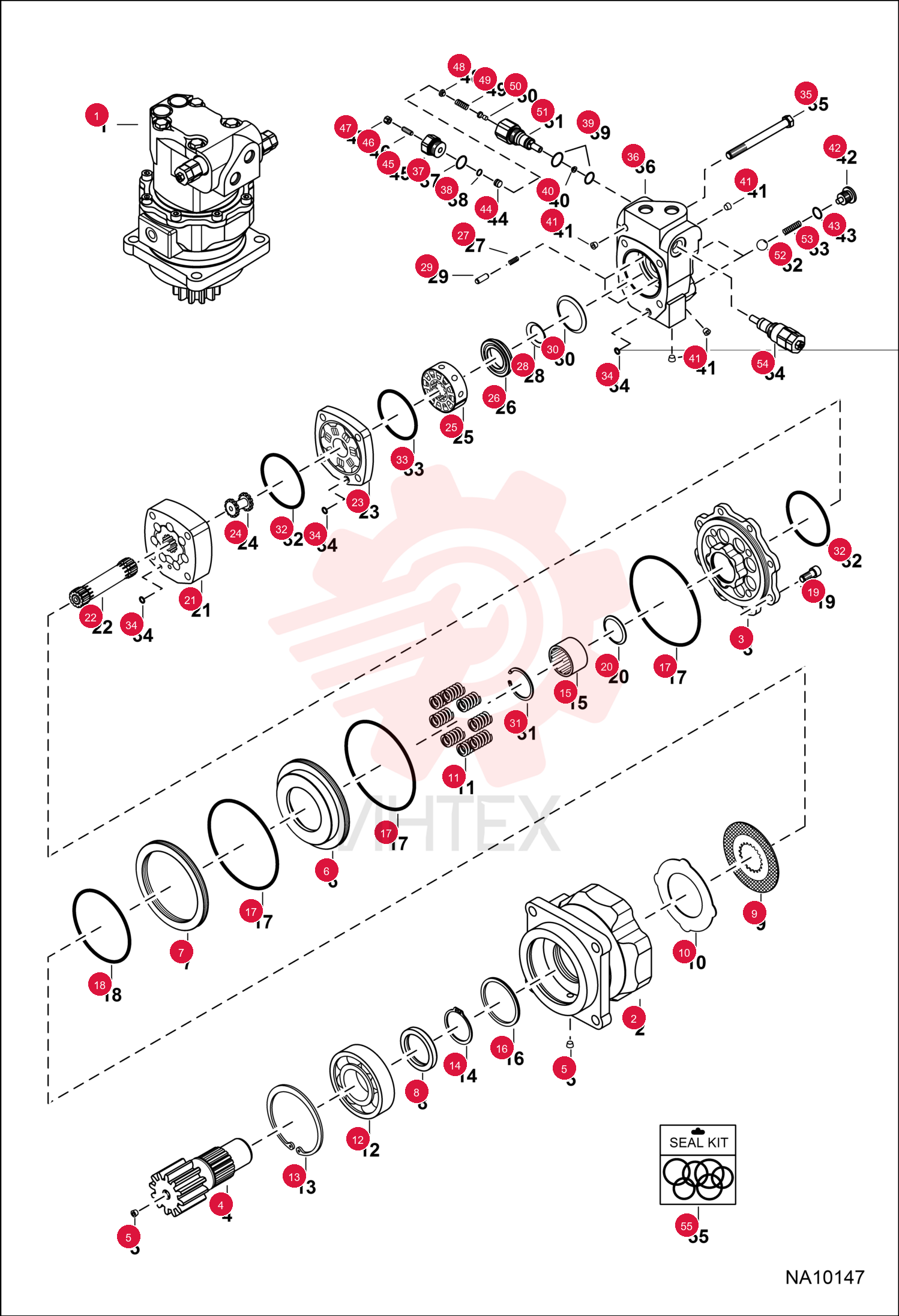

SLEW MOTOR 7024419 (2)

SLEW MOTOR 7024419 (2)

SLEW MOTOR 7024419 (2)

1 7024419

  • 7024419 - SLEW MOTOR

2 7265145

  • 7265145 - HOUSING
  • BEARING

3 7265146

  • 7265146 - FLANGE
  • MOUNTING

4 7265147

  • 7265147 - GEAR
  • PINION

5 7265184

  • 7265184 - PLUG
  • Was 7265148

6 7265149

  • 7265149 - PISTON

7 7265150

  • 7265150 - RING

8 7265151

  • 7265151 - COLLAR

9 7265152

  • 7265152 - DISC
  • FRICTION

10 7265153

  • 7265153 - PLATE
  • DISC

11 7265154

  • 7265154 - SPRING

12 7265155

  • 7265155 - BEARING

13 7265156

  • 7265156 - RING
  • SNAP

14 7265158

  • 7265158 - BEARING

15 7265162

  • 7265162 - BOLT

16 7265163

  • 7265163 - SEAL
  • SHAFT

17 7001011

  • 7001011 - HOUSING MOTOR

18 7001010

  • 7001010 - DRIVE

19 7265166

  • 7265166 - PLATE
  • VALVE

20 1992084

  • 1992084 - DR VALVE
  • Was 7265167

21 7265168

  • 7265168 - VALVE

22 6630027

  • 6630027 - PLATE
  • Was 7265169

23 1992088

  • 1992088 - SPRING
  • Was 7265170

24 7265171

  • 7265171 - SEAL

25 1992102

  • 1992102 - PIN
  • Was 7265172

26 7265173

  • 7265173 - SEAL

27 7265174

  • 7265174 - RING
  • SNAP

28 7265178

  • 7265178 - BOLT

29 7265895

  • 7265895 - VALVE
  • RELIEF

30 7265184

  • 7265184 - PLUG

31 7265185

  • 7265185 - PLUG

32 7265895

  • 7265895 - VALVE
  • RELIEF

33 7273497

  • 7273497 - KIT
  • SEAL
  • Ref. 16-18
  • 20
  • 28
  • 30
  • 32-34
  • 37-39
  • 43 - Was 7265654
