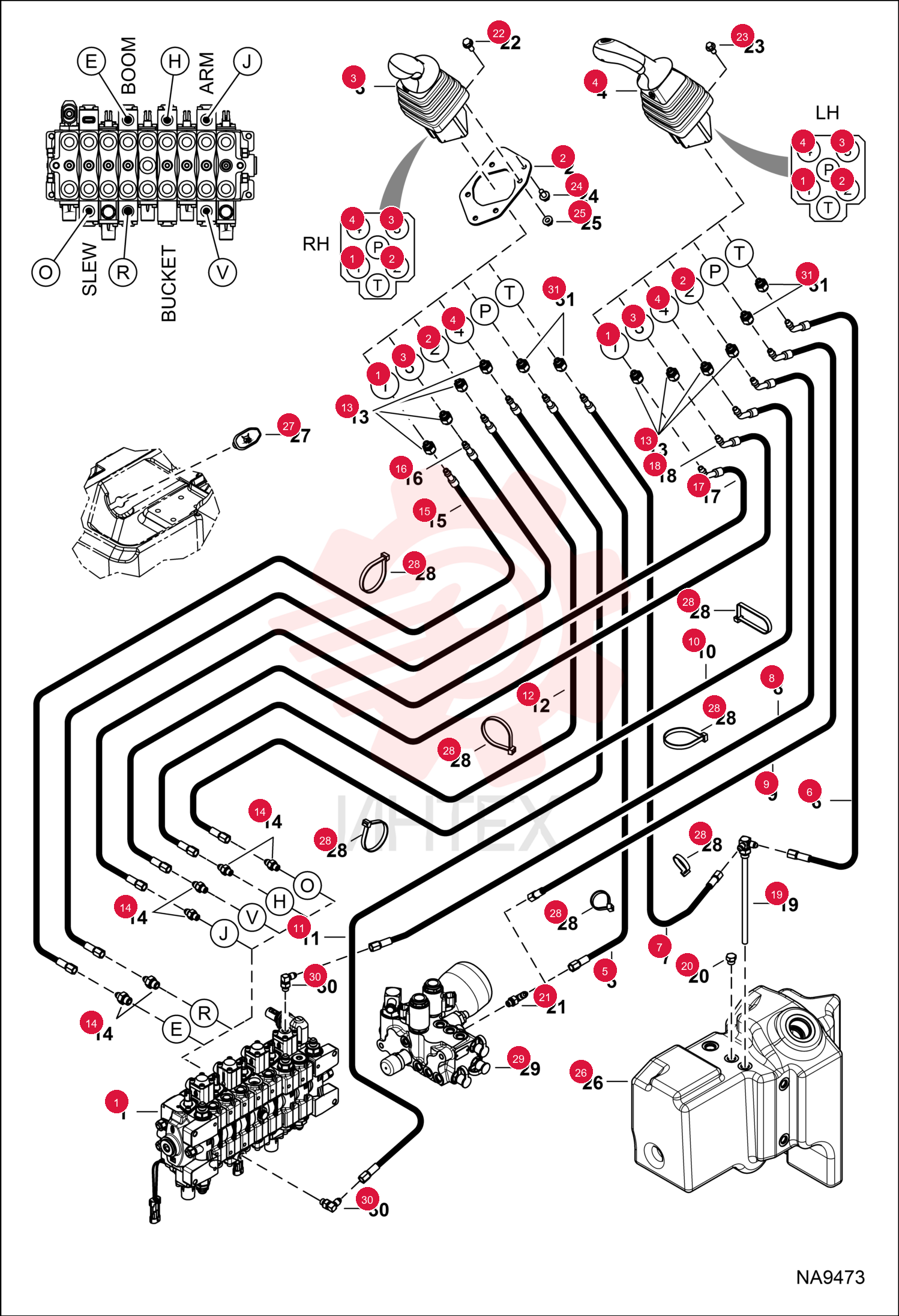

VALVE, CONTROL 7024225

VALVE, CONTROL 7024225

VALVE, CONTROL 7024225

1 7024225

  • 7024225 - VALVE
  • CONTROL

2 7218028

  • 7218028 - PLATE

3 7220730

  • 7220730 - JOYSTICK
  • RH
  • - manual controls

4 7220731

  • 7220731 - JOYSTICK
  • LH
  • - manual controls

5 7221986

  • 7221986 - HOSE
  • HYD

6 7221987

  • 7221987 - HOSE
  • HYD ASSY

7 7222467

  • 7222467 - HOSE
  • HYD ASSY

8 7222468

  • 7222468 - HOSE
  • HYD ASSY

9 7222469

  • 7222469 - HOSE
  • HYD ASSY

10 7222475

  • 7222475 - HOSE
  • HYD

11 7222476

  • 7222476 - HOSE
  • HYD

12 7222477

  • 7222477 - HOSE
  • HYD

13 7344615

  • 7344615 - CAP PLASTIC

14 7011053

  • 7011053 - CLIP

15 78K4

  • 78K4 - O'RING

16 10L0604

  • 10L0604 - FITTING
  • HYD CONNECTOR

17 15KB0404

  • 15KB0404 - FTG HYD S CONNECTOR

18 7222972

  • 7222972 - HOSE
  • HYD ASSY

19 7222973

  • 7222973 - HOSE
  • HYD

20 7228138

  • 7228138 - HOSE
  • HYD

21 7228137

  • 7228137 - HOSE
  • HYD

22 7240072

  • 7240072 - FITTING
  • CROSS

23 24K5

  • 24K5 - PLUG

24 21KB0404

  • 21KB0404 - FITTING
  • HYD TEE

25 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

26 26GM8020

  • 26GM8020 - SCREW SELF TAPPING

27 29CM816

  • 29CM816 - SCREW FLGD HEX CAP

28 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

29 7221862

  • 7221862 - TANK
  • HYD

30 7224269

  • 7224269 - BOOT
  • RUBBER

31 6624289

  • 6624289 - STRAP
  • TIE

32 7025064

  • 7025064 - MANIFOLD
  • - single speed

33 7025063

  • 7025063 - MANIFOLD
  • HYD ASSY
  • - 2-speed

34 17KB0404

  • 17KB0404 - FTG HYD ELBOW 90

35 7319693

  • 7319693 - FITTING HYDRAULIC STRAIGHT
  • EMEA only

36 7344615

  • 7344615 - CAP PLASTIC

37 7011053

  • 7011053 - CLIP

38 78K4

  • 78K4 - O'RING

39 10L0604

  • 10L0604 - FITTING
  • HYD CONNECTOR
