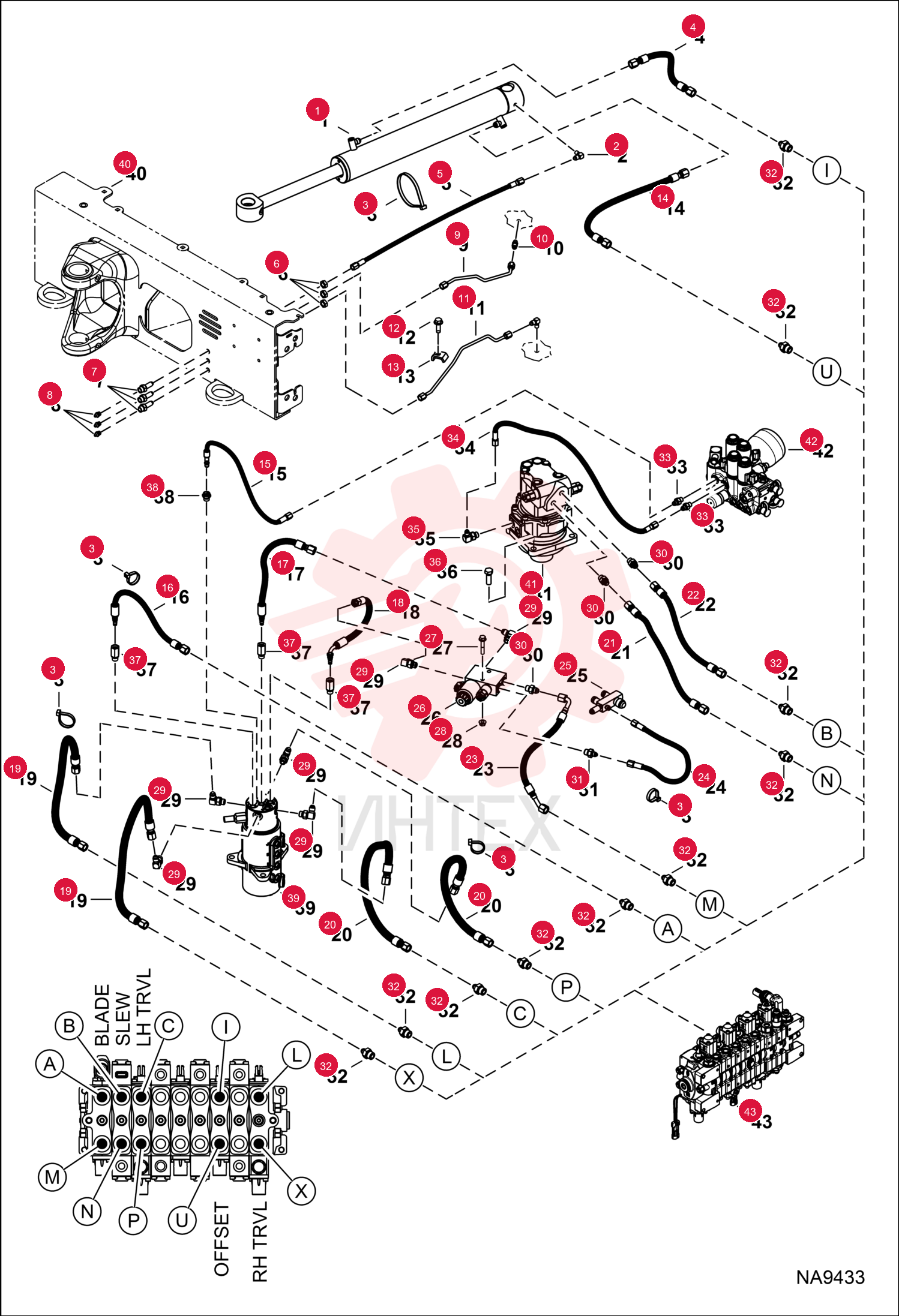

ELBOW 5 83F3 (2)

ELBOW 5 83F3 (2)

ELBOW 5 83F3 (2)

1 83F3

  • 83F3 - ELBOW 5

2 6624289

  • 6624289 - STRAP
  • TIE

3 7223212

  • 7223212 - HOSE
  • HYD

4 7223596

  • 7223596 - HOSE
  • HYD

5 86F3

  • 86F3 - NUT 10

6 6807184

  • 6807184 - FITTING

7 10H25

  • 10H25 - FTG GREASE STRAIGHT

8 7223118

  • 7223118 - TUBELINE
  • HYD

9 89F3

  • 89F3 - ADAPTOR

10 7223117

  • 7223117 - TUBELINE
  • HYD

11 29CM1030

  • 29CM1030 - SCREW FLGD HEX CAP

12 6562266

  • 6562266 - CLAMP TUBE

13 7223211

  • 7223211 - HOSE
  • HYD

14 7223443

  • 7223443 - HOSE
  • HYD
  • Was 7223444

15 7222876

  • 7222876 - HOSE
  • HYD

16 7223069

  • 7223069 - HOSE
  • HYD

17 7223068

  • 7223068 - HOSE
  • HYD

18 7222874

  • 7222874 - HOSE
  • HYD

19 7222873

  • 7222873 - HOSE
  • HYD

20 7225502

  • 7225502 - HOSE
  • HYD

21 7235370

  • 7235370 - HOSE
  • HYD

22 7223070

  • 7223070 - HOSE
  • HYD

23 7280149

  • 7280149 - HOSE
  • HYD
  • 500 mm (19.69") long

24 7221114

  • 7221114 - FITTING
  • CROSS

25 29CM845

  • 29CM845 - SCREW HEX FLANGE

26 43DM8

  • 43DM8 - NUT FLANGED HEX

27 79K6

  • 79K6 - O RING 10

28 17KB0606

  • 17KB0606 - FTG HYD 90 ELBOW

29 79K6

  • 79K6 - O RING 10

30 15KB0606

  • 15KB0606 - FITTING
  • HYD CONNECTOR

31 79K6

  • 79K6 - O RING 10

32 15KB0406

  • 15KB0406 - FITTING
  • HYD CONNECTOR

33 79K8

  • 79K8 - O RING 10

34 15KB0608

  • 15KB0608 - FITTING
  • HYD CONNECTOR

35 79K4

  • 79K4 - O RING 10

36 15KB0404

  • 15KB0404 - FTG HYD S CONNECTOR

37 7223141

  • 7223141 - HOSE
  • HYD

38 79K6

  • 79K6 - O RING 10

39 7244659

  • 7244659 - FITTING
  • HYD ELBOW

40 55CM1235

  • 55CM1235 - BOLT

41 79K6

  • 79K6 - O RING 10

42 15HB0406

  • 15HB0406 - FITTING
  • HYD CONNECTOR

43 79K6

  • 79K6 - O RING 10

44 10L0606

  • 10L0606 - FITTING
  • HYD CONNECTOR
