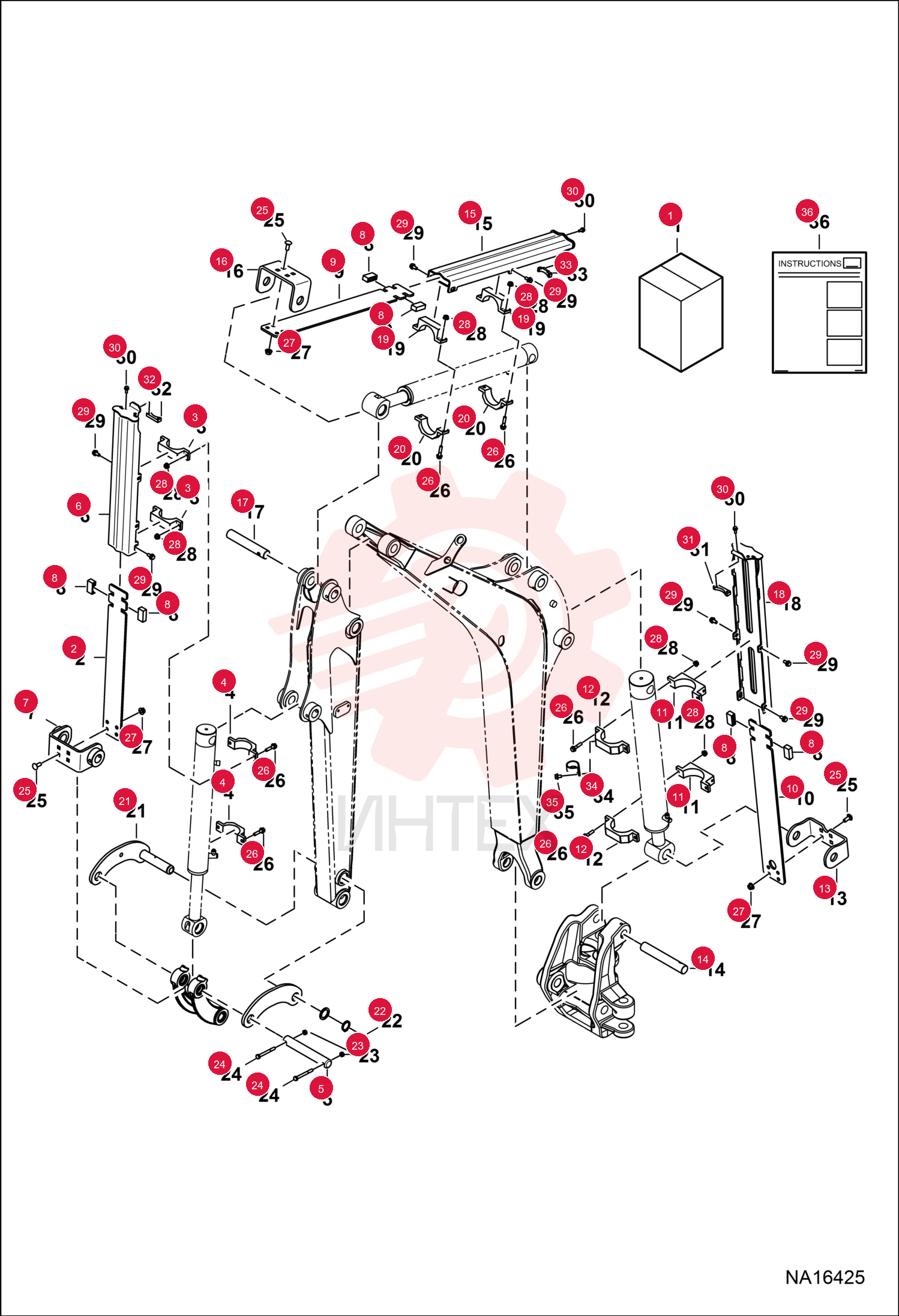

KIT DEMOLITION 7335808 (1)

KIT DEMOLITION 7335808 (1)

KIT DEMOLITION 7335808 (1)

1 7335808

  • 7335808 - KIT DEMOLITION
  • Ref. 2-36

2 7282233

  • 7282233 - COVER
  • PISTON

3 7313569

  • 7313569 - CLAMP UPPER

4 7313570

  • 7313570 - CLAMP LOWER

5 7282238

  • 7282238 - PIN
  • BUCKET

6 7313575

  • 7313575 - COVER CYLINDER

7 7282505

  • 7282505 - COVER
  • CYL

8 7282910

  • 7282910 - SLIDE WEAR

9 7284968

  • 7284968 - COVER
  • CYL

10 7284980

  • 7284980 - COVER
  • PISTON

11 7313585

  • 7313585 - CLAMP UPPER

12 7313586

  • 7313586 - CLAMP LOWER

13 7284985

  • 7284985 - BRACKET MOUNTING

14 7284986

  • 7284986 - PIN CYLINDER

15 7313584

  • 7313584 - COVER CYLINDER

16 7323136

  • 7323136 - BRACKET MOUNTING

17 7285743

  • 7285743 - PIN
  • CYL

18 7313593

  • 7313593 - COVER CYLINDER

19 7287023

  • 7287023 - CLAMP
  • CYL

20 7287024

  • 7287024 - CLAMP
  • CYL

21 7288686

  • 7288686 - LINK
  • ARM DIPPER

22 10H25

  • 10H25 - FTG GREASE STRAIGHT

23 16DM8

  • 16DM8 - NUT

24 1CM875

  • 1CM875 - BOLT

25 28CM1025

  • 28CM1025 - BOLT CARRIAGE 8.8

26 29CM830

  • 29CM830 - SCREW HEX
  • Was 29CM835

27 43DM10

  • 43DM10 - NUT FLANGED HEX

28 43DM8

  • 43DM8 - NUT FLANGED HEX

29 59CM816

  • 59CM816 - BOLT

30 29CM616

  • 29CM616 - SCREW FLGD HEX CAP

31 7313588

  • 7313588 - PLATE SUPPORT

32 7313589

  • 7313589 - PLATE SUPPORT

33 7337734

  • 7337734 - PLATE SUPPORT

34 30H60

  • 30H60 - CLIP INSULATED

35 59CM812

  • 59CM812 - SCREW HX FLNG W/T8.8

36 7304426

  • 7304426 - INSTRUCTIONS
