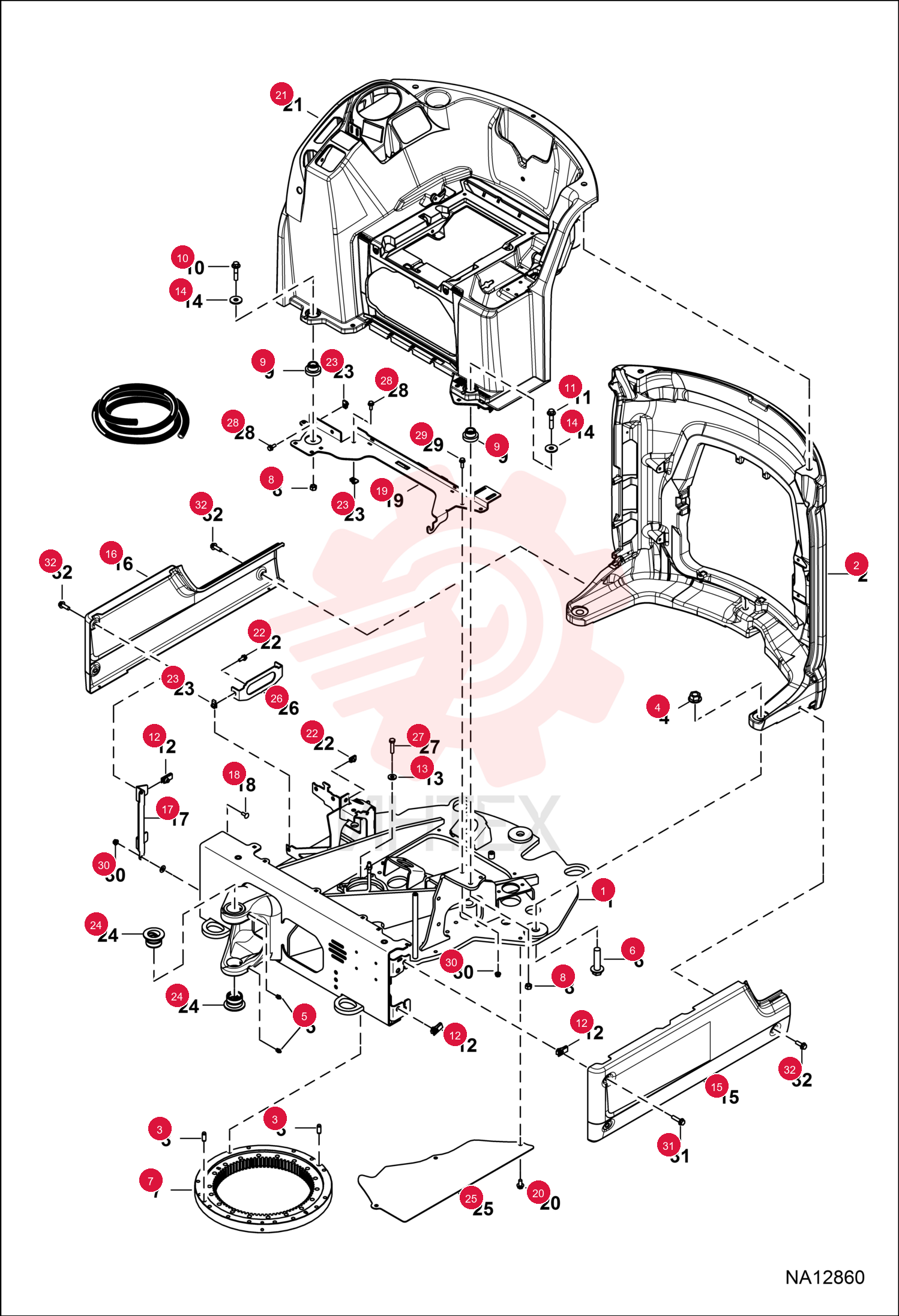

UPPERSTRUCTURE 7305685 (1)

UPPERSTRUCTURE 7305685 (1)

UPPERSTRUCTURE 7305685 (1)

1 7305685

  • 7305685 - UPPERSTRUCTURE

2 7311658

  • 7311658 - COUNTERWEIGHT

3 23JM1232

  • 23JM1232 - PIN PARALLEL

4 43DM20

  • 43DM20 - NUT

5 10H25

  • 10H25 - FTG GREASE STRAIGHT

6 29CM2080

  • 29CM2080 - BOLT

7 7222567

  • 7222567 - BEARING SLEW

8 51DM12

  • 51DM12 - NUT

9 7001052

  • 7001052 - MOUNT
  • ENG

10 29CM1250

  • 29CM1250 - BOLT

11 29CM1255

  • 29CM1255 - BOLT

12 6675722

  • 6675722 - NUT

13 27E6

  • 27E6 - WASHER HARDEN PLAIN

14 17EM120

  • 17EM120 - WASHER

15 7312346

  • 7312346 - CHANNEL LH

16 7312345

  • 7312345 - CHANNEL RH

17 7215474

  • 7215474 - MOUNT
  • CHANNEL

18 28CM820

  • 28CM820 - BOLT CARRIAGE 8.8

19 7279724

  • 7279724 - BRACE
  • CAB

20 29CM1020

  • 29CM1020 - SCREW HEX 10MMX20MM

21 7218002

  • 7218002 - BONNET
  • OPERATOR

22 6675859

  • 6675859 - RETAINER

23 6676169

  • 6676169 - NUT

24 7182633

  • 7182633 - INSERT SWING

25 7225548

  • 7225548 - PLATE
  • VALVE

26 7270246

  • 7270246 - PLATE BATTERY

27 56CM1045

  • 56CM1045 - SCREW

28 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

29 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

30 43DM8

  • 43DM8 - NUT FLANGED HEX

31 29CM1040

  • 29CM1040 - SCREW

32 29CM1030

  • 29CM1030 - SCREW FLGD HEX CAP
