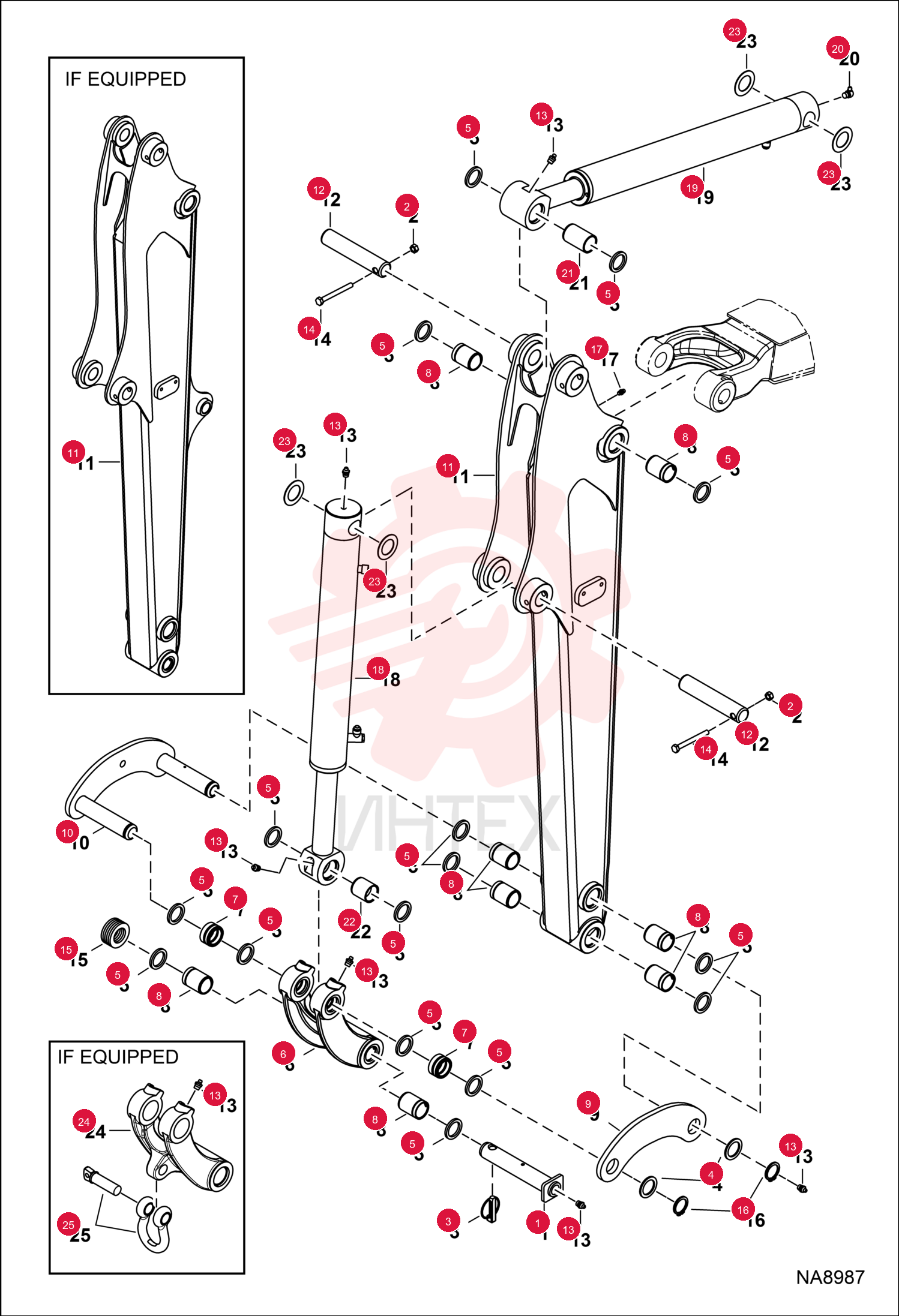

PIN, PIVOT 6539737 (2)

PIN, PIVOT 6539737 (2)

PIN, PIVOT 6539737 (2)

1 6539737

  • 6539737 - PIN
  • PIVOT
  • 183 mm (7.25") long

2 4DM8

  • 4DM8 - NUT HEX

3 6560382

  • 6560382 - PIN
  • LOCK
  • Was 7310872

4 6589699

  • 6589699 - WASHER

5 6653534

  • 6653534 - SEAL
  • OIL 5

6 7303890

  • 7303890 - LINK BUCKET MACHINED ASSY
  • Ref. 5-8 & 13

7 6802218

  • 6802218 - LINK
  • BUCKET MACHINED
  • Was 7302031

8 6802588

  • 6802588 - BUSHING
  • PRESS FIT

9 7100276

  • 7100276 - BUSHING

10 7107768

  • 7107768 - LINK
  • GUIDE LOOSE

11 7107769

  • 7107769 - LINK WA
  • GUIDE

12 7274610

  • 7274610 - ARM
  • LONG
  • Was 7242173

13 7274609

  • 7274609 - ARM
  • W/A
  • std - Was 7242224

14 7176919

  • 7176919 - PIN

15 10H25

  • 10H25 - FTG GREASE STRAIGHT

16 1CM880

  • 1CM880 - SCREW HEX HD 8.8

17 1EM280

  • 1EM280 - WASHER
  • FLAT
  • Was 1EM270

18 22J19

  • 22J19 - SNAP RING

19 10H35

  • 10H35 - FTG GREASE STRAIGHT
  • straight

20 12H15

  • 12H15 - FTG GREASE 90

21 6803814

  • 6803814 - BUSHING

22 6804060

  • 6804060 - BUSHING

23 6533856

  • 6533856 - SHIM 5

24 7246265

  • 7246265 - LINK
  • BUCKET MACHINED
  • lift eye

25 7303889

  • 7303889 - LINK BUCKET MACHINED ASSY
  • Ref. 5
  • 7
  • 8
  • 13 & 24

26 7250480

  • 7250480 - SHACKLE
  • Use W/Ref. 24
