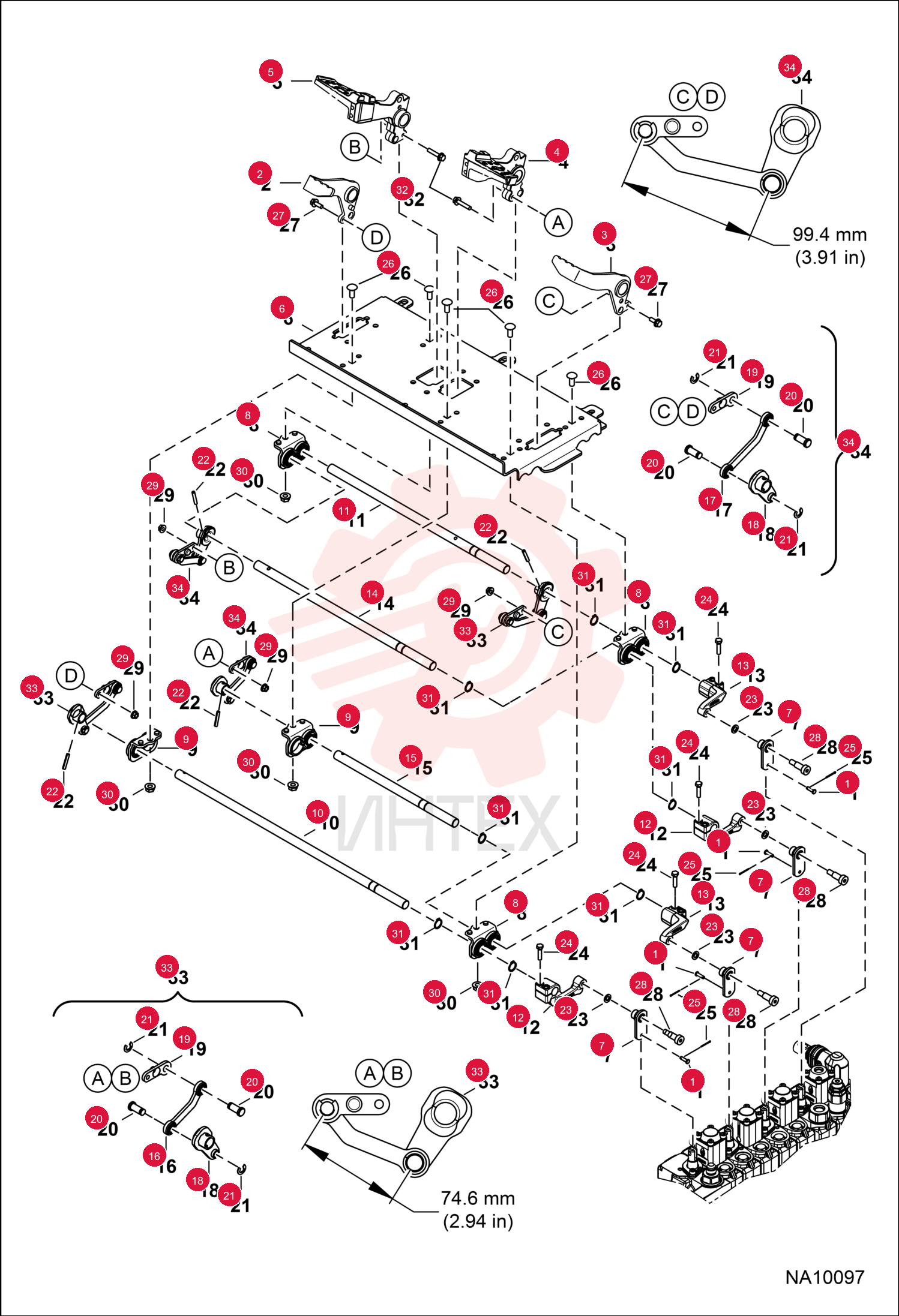

PIN 6801068 (3)

PIN 6801068 (3)

PIN 6801068 (3)

1 6801068

  • 6801068 - PIN

2 7217931

  • 7217931 - PEDAL ASSEMBLY

3 7217936

  • 7217936 - PEDAL
  • AUX

4 7233976

  • 7233976 - PEDAL
  • LH

5 7233974

  • 7233974 - PEDAL
  • RH

6 7276849

  • 7276849 - PLATE
  • FLOOR
  • manual controls - Was 7217950

7 7234338

  • 7234338 - LINK
  • SPOOL

8 7234339

  • 7234339 - MOUNT
  • BEARING

9 7234340

  • 7234340 - MOUNT
  • BEARING

10 7234345

  • 7234345 - SHAFT

11 7234348

  • 7234348 - SHAFT

12 7234349

  • 7234349 - BELLCRANK
  • STRG

13 7234351

  • 7234351 - BELLCRANK
  • STRG

14 7234346

  • 7234346 - SHAFT
  • LEVER

15 7234347

  • 7234347 - SHAFT

16 7234333

  • 7234333 - LINK
  • 75 mm

17 7234334

  • 7234334 - LINK
  • OFFSET
  • 100 mm

18 7234337

  • 7234337 - BELLCRANK

19 7234341

  • 7234341 - BRACKET

20 7242019

  • 7242019 - PIN

21 9JM80

  • 9JM80 - RING
  • SNAP

22 7274126

  • 7274126 - PIN
  • ROLL

23 15EM80

  • 15EM80 - WASHER

24 1CM625

  • 1CM625 - BOLT

25 1F212

  • 1F212 - PIN

26 28CM820

  • 28CM820 - BOLT CARRIAGE 8.8

27 29CM616

  • 29CM616 - SCREW FLGD HEX CAP

28 38CM1020

  • 38CM1020 - BOLT
  • SHOULDER

29 43DM6

  • 43DM6 - NUT FLANGED HEX

30 43DM8

  • 43DM8 - NUT FLANGED HEX

31 5JM16

  • 5JM16 - SNAPRING

32 29CM630

  • 29CM630 - SCREW FLGD HEX CAP

33 7241969

  • 7241969 - LINKAGE
  • W/Ref. 16
  • 18
  • 19
  • (2) each of Ref. 20
  • 21

34 7241970

  • 7241970 - LINKAGE
  • W/Ref. 19
  • 37
  • 38
  • (2) each of Ref. 39
  • 40
