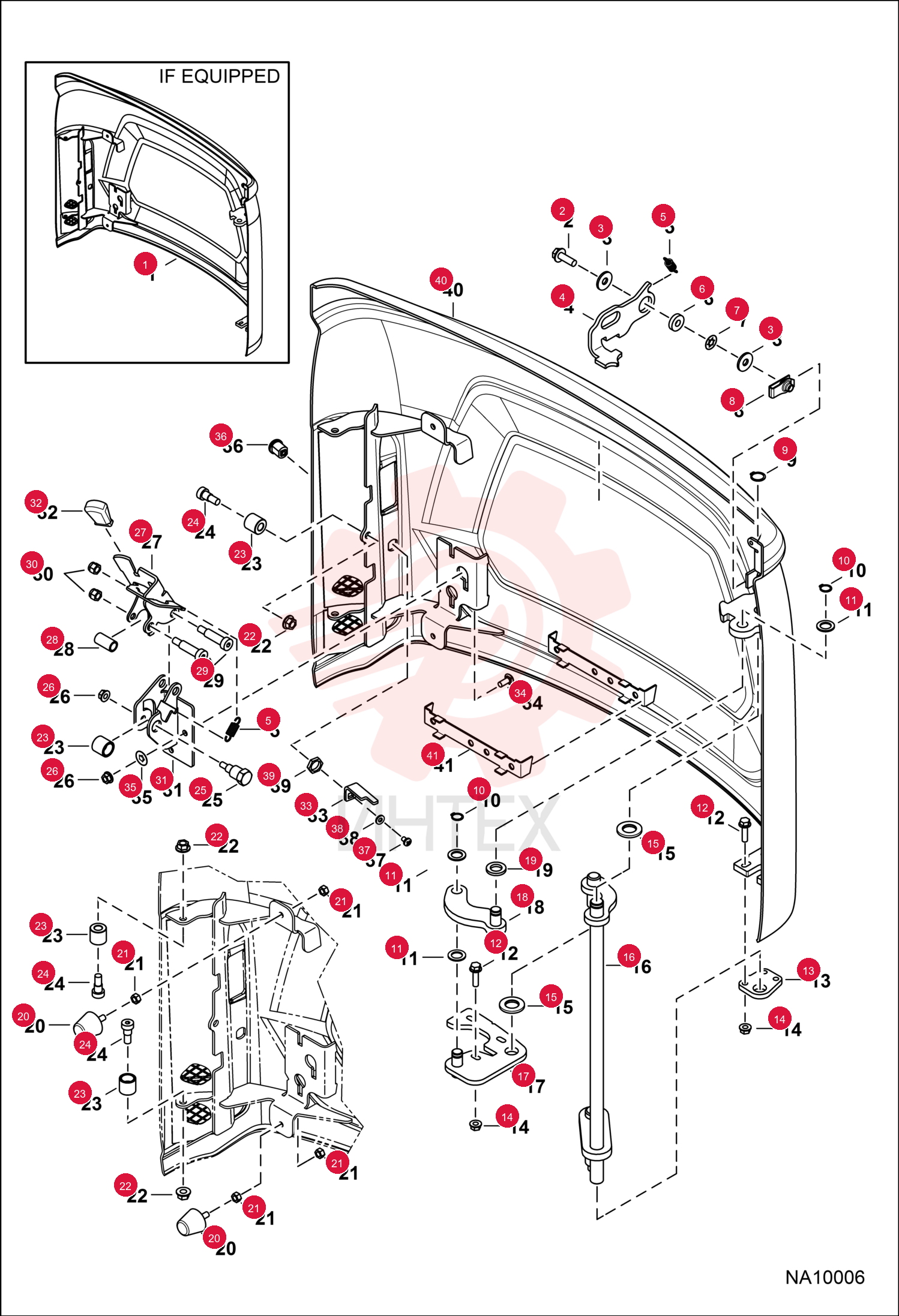

SCREW FLGD HEX CAP 29CM1030 (1)

SCREW FLGD HEX CAP 29CM1030 (1)

SCREW FLGD HEX CAP 29CM1030 (1)

1 29CM1030

  • 29CM1030 - SCREW FLGD HEX CAP

2 17EM100

  • 17EM100 - WASHER

3 7187739

  • 7187739 - PLATE
  • LATCH

4 6714210

  • 6714210 - SPRING

5 616783

  • 616783 - WASHER

6 6674264

  • 6674264 - RETAINER BOLT

7 6675722

  • 6675722 - NUT

8 5JM20

  • 5JM20 - RING RTNG EXT HVY

9 5JM16

  • 5JM16 - SNAPRING

10 15EM160

  • 15EM160 - WASHER

11 29CM830

  • 29CM830 - SCREW HEX

12 7184014

  • 7184014 - PLATE
  • ADJUST

13 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

14 6576033

  • 6576033 - WASHER 5

15 7187847

  • 7187847 - SUPPORT

16 7187845

  • 7187845 - PLATE
  • ADJUST

17 7187839

  • 7187839 - BAR

18 1EM160

  • 1EM160 - WASHER

19 6733616

  • 6733616 - BUMPER

20 61D5

  • 61D5 - NUT HEX FINISHED GR5

21 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

22 7187740

  • 7187740 - ROLLER

23 38CM1212

  • 38CM1212 - BOLT
  • SHOULDER

24 7187781

  • 7187781 - PIN

25 43DM8

  • 43DM8 - NUT FLANGED HEX

26 7187843

  • 7187843 - LEVER

27 7184677

  • 7184677 - BUSHING

28 38C824

  • 38C824 - SCREW

29 59D6

  • 59D6 - NUT LOCK HEX PT

30 7219265

  • 7219265 - LATCH
  • DOOR REAR

31 6564452

  • 6564452 - GRIP LEVER

32 7219268

  • 7219268 - LATCH
  • DOOR

33 28CM820

  • 28CM820 - BOLT CARRIAGE 8.8

34 6675859

  • 6675859 - RETAINER

35 6670726

  • 6670726 - LOCK ONLY
  • W/Ref. 37-39

36 7288647

  • 7288647 - DOOR
  • REAR
  • W/Ref. 41

37 7280163

  • 7280163 - MOUNT
  • weld-on - grease gun
