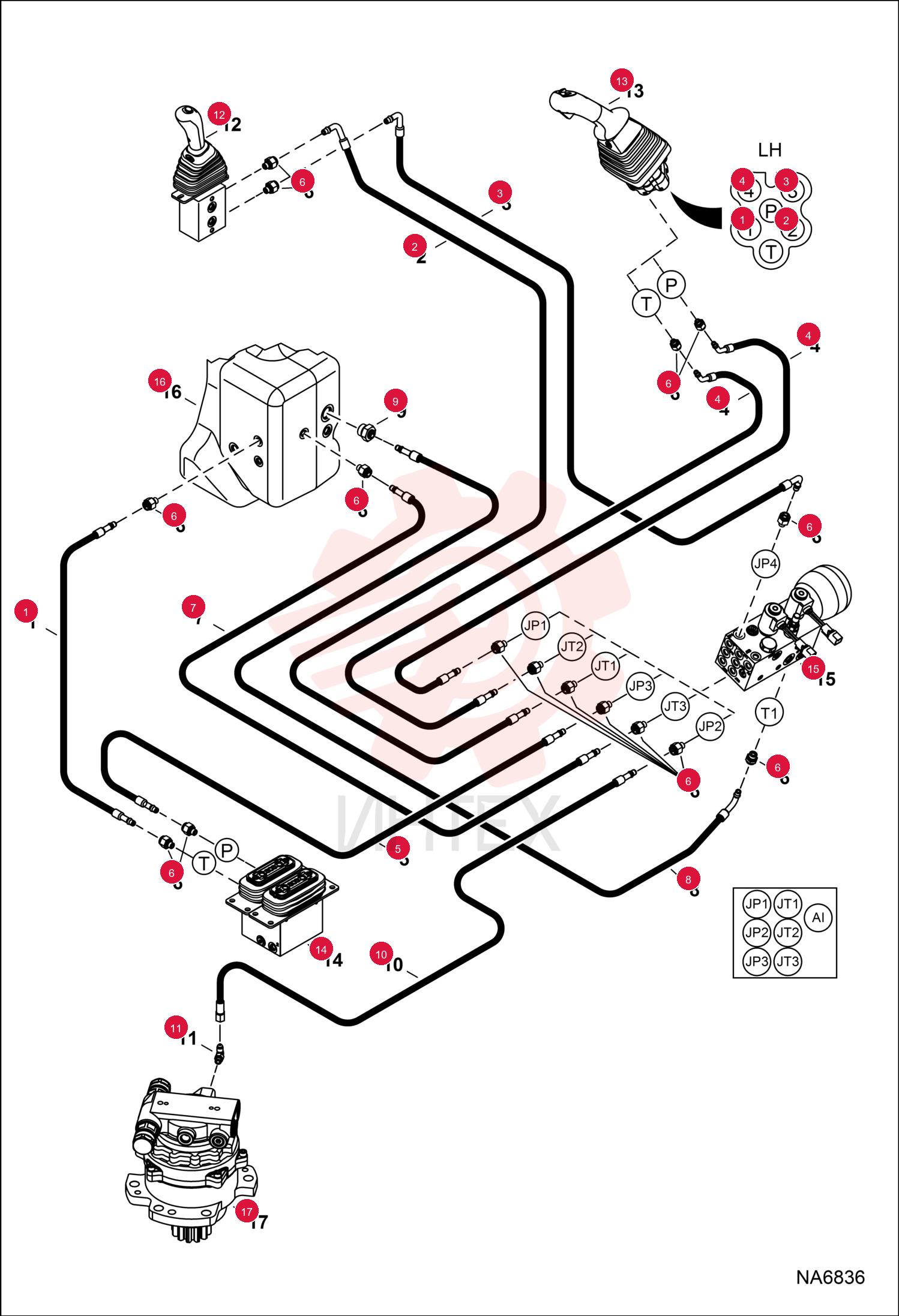

HOSE, HYD 7196580

HOSE, HYD 7196580

HOSE, HYD 7196580

1 7196580

  • 7196580 - HOSE
  • HYD

2 7196581

  • 7196581 - HOSE
  • HYD

3 7196582

  • 7196582 - HOSE
  • HYD

4 7198633

  • 7198633 - HOSE
  • HYD

5 7202316

  • 7202316 - HOSE
  • HYD

6 10L0604

  • 10L0604 - FITTING
  • HYD CONNECTOR

7 78K4

  • 78K4 - O'RING

8 7011053

  • 7011053 - CLIP

9 7344615

  • 7344615 - CAP PLASTIC

10 7201281

  • 7201281 - HOSE
  • HYD

11 7201282

  • 7201282 - HOSE
  • HYD

12 7011053

  • 7011053 - CLIP

13 10L0610

  • 10L0610 - FITTING
  • HYD CONNECTOR

14 78K4

  • 78K4 - O'RING

15 7202286

  • 7202286 - HOSE
  • HYD

16 17KB0404

  • 17KB0404 - FTG HYD ELBOW 90

17 79K4

  • 79K4 - O RING 10

18 7220733

  • 7220733 - JOYSTICK
  • LH
  • LH

19 7024440

  • 7024440 - JOYSTICK
  • LH ASSY

20 7180565

  • 7180565 - VALVE
  • PEDAL DUAL

21 7204476

  • 7204476 - MANIFOLD
  • HYD ASSY

22 7219299

  • 7219299 - MOTOR
  • SLEW
