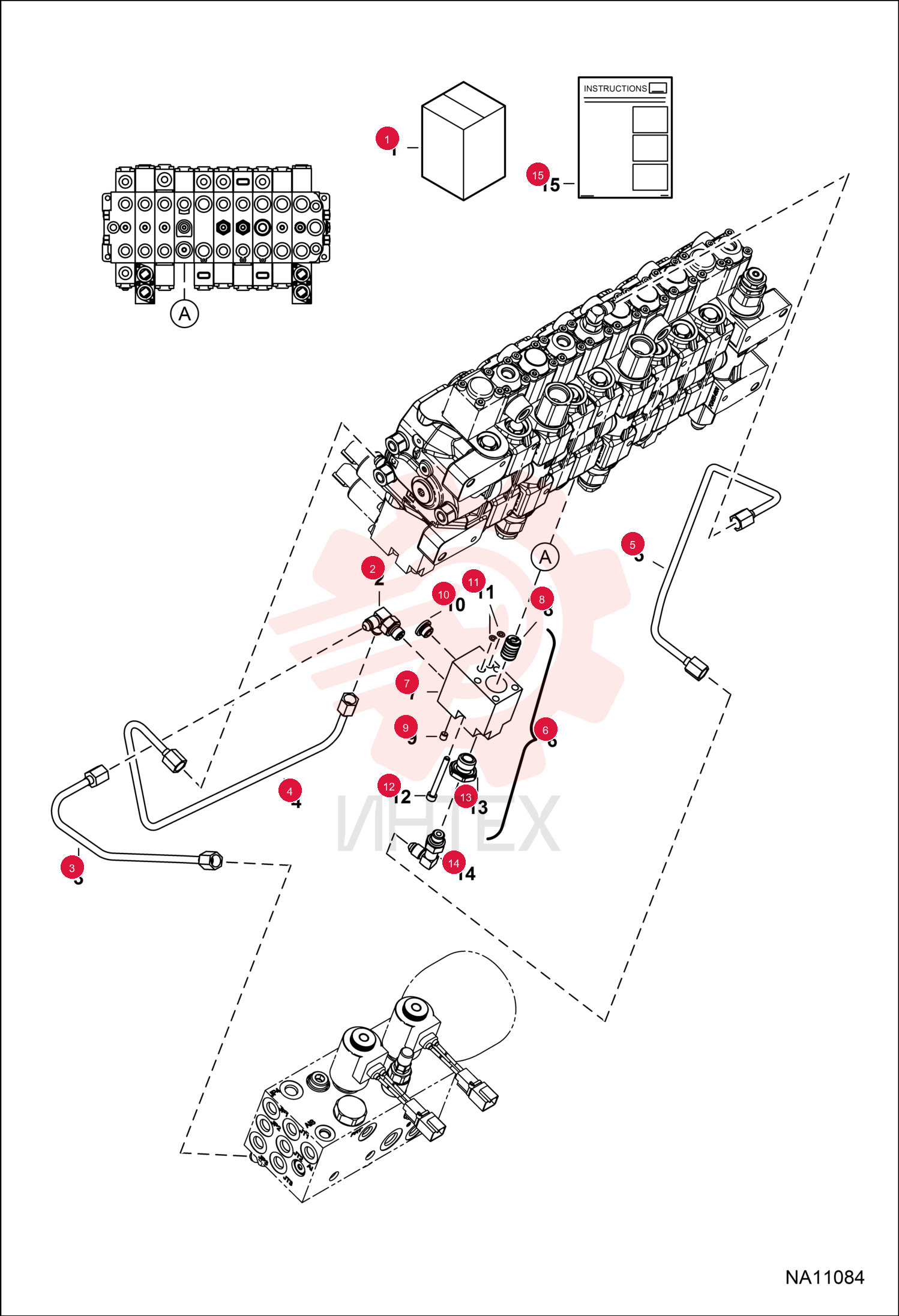

KIT, 2ND AUX PRESSURE RELEASE

KIT, 2ND AUX PRESSURE RELEASE

KIT, 2ND AUX PRESSURE RELEASE

1 7282120

  • 7282120 - KIT
  • 2ND AUX PRESSURE RELEASE
  • Ref. 2-6 & 15

2 7166606

  • 7166606 - TEE

3 7257739

  • 7257739 - TUBELINE
  • HYD ASSY

4 7257740

  • 7257740 - TUBELINE
  • HYD ASSY

5 7257741

  • 7257741 - TUBELINE
  • HYD ASSY

6 7282514

  • 7282514 - KIT
  • MCV PRESSURE RELEASE
  • Ref. 7-13

7 6686236

  • 6686236 - PLUG

8 7259722

  • 7259722 - O-RING

9 6682248

  • 6682248 - SCREW

10 18KB0404

  • 18KB0404 - FITTING
  • HYD ELBOW
  • not in kit

11 7303615ENUS

  • 7303615ENUS - INSTRUCTIONS
