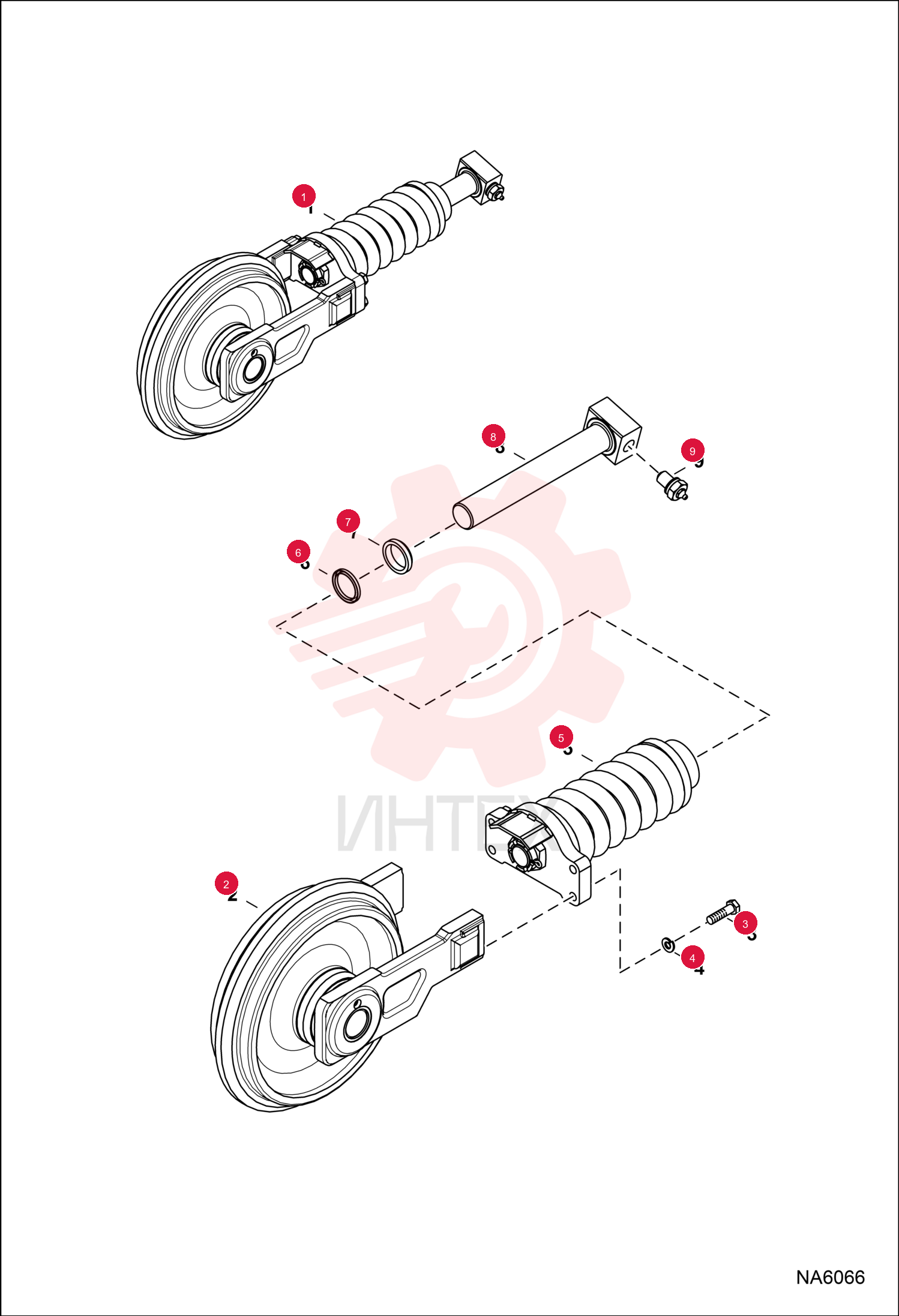

IDLER ASSEMBLY 7205956

IDLER ASSEMBLY 7205956

IDLER ASSEMBLY 7205956

1 7205956

  • 7205956 - IDLER ASSEMBLY
  • rubber track - Ref. 2-8 - Also Order Ref. 9

2 7022139

  • 7022139 - IDLER
  • TRACK FRONT

3 7022140

  • 7022140 - BOLT
  • HEX SOCKET

4 7022141

  • 7022141 - WASHER

5 7022142

  • 7022142 - TENSIONER
  • TRACK ASSY
  • rubber track - includes Ref. 6-8

6 7022143

  • 7022143 - RING
  • WEAR

7 7022144

  • 7022144 - SEAL
  • WIPER ROD

8 7022145

  • 7022145 - SHAFT
  • ROD CYL

9 7282154

  • 7282154 - WASHER

10 7177516

  • 7177516 - FITTING
  • GREASE
