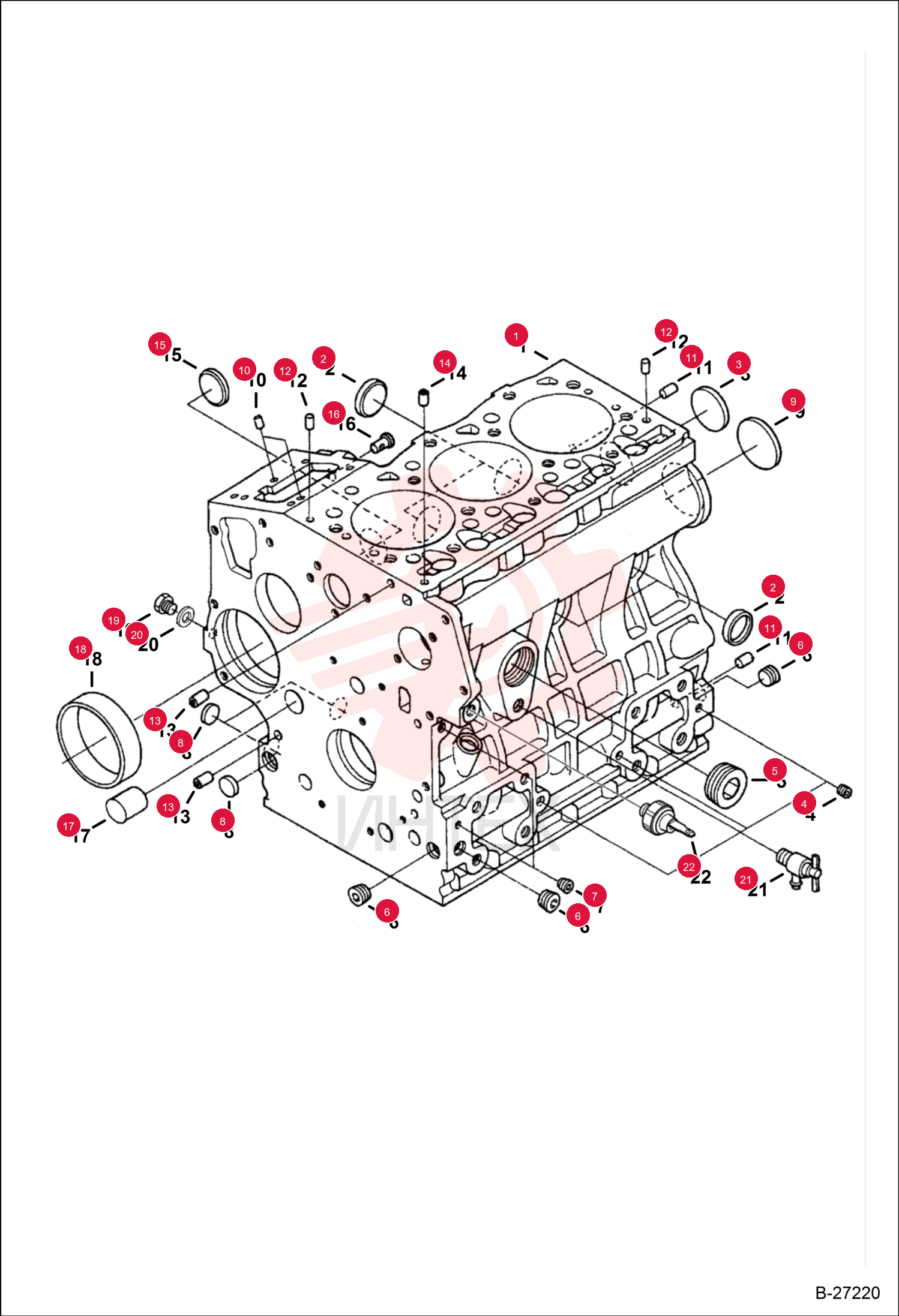

BLOCK ENGINE 7001441 (1)

BLOCK ENGINE 7001441 (1)

BLOCK ENGINE 7001441 (1)

1 7001441

  • 7001441 - BLOCK ENGINE
  • W/Ref. 2 - 20

2 6657431

  • 6657431 - CAP
  • sealing

3 3974433

  • 3974433 - PLUG
  • sealing

4 6598116

  • 6598116 - PLUG

5 6672354

  • 6672354 - PLUG

6 6657600

  • 6657600 - PLUG

7 6652574

  • 6652574 - PLUG

8 6667418

  • 6667418 - PLUG
  • expansion

9 6657663

  • 6657663 - PLUG
  • expansion

10 6657423

  • 6657423 - PIN

11 21JM814

  • 21JM814 - PIN
  • dowel

12 6657424

  • 6657424 - PIN

13 3974039

  • 3974039 - PIN

14 6657548

  • 6657548 - PIPE PIN

15 6657601

  • 6657601 - PLUG

16 6672355

  • 6672355 - PIN

17 6657675

  • 6657675 - PLUG

18 6657647

  • 6657647 - BUSHING

19 7022679

  • 7022679 - PLUG

20 3974095

  • 3974095 - GASKET
  • METAL

21 7022680

  • 7022680 - FITTING
  • DRAIN

22 6969775

  • 6969775 - SWITCH
  • OIL PRESSURE
