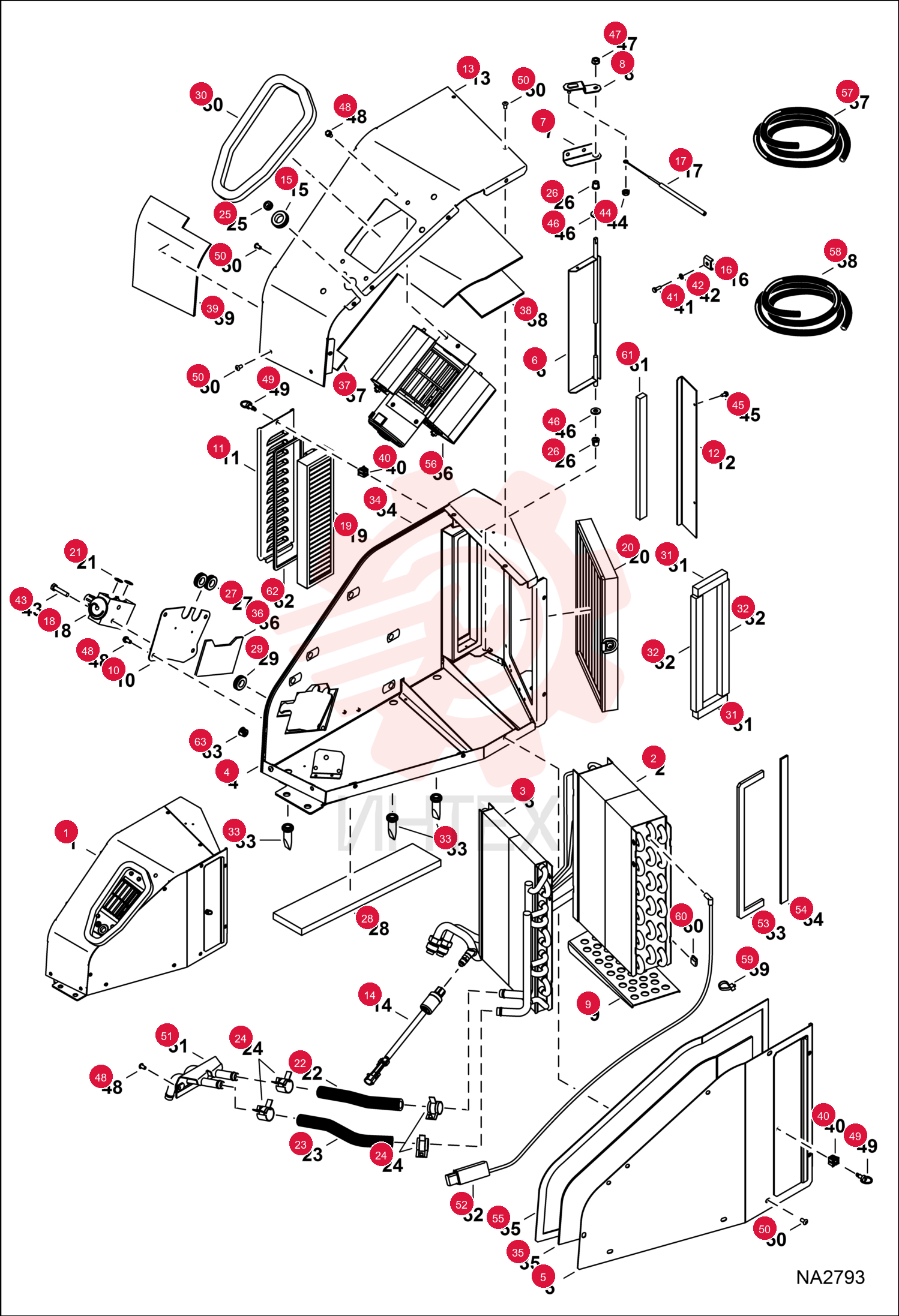

HVAC ASSEMBLY 7018005 (1)

HVAC ASSEMBLY 7018005 (1)

HVAC ASSEMBLY 7018005 (1)

1 7018005

  • 7018005 - HVAC ASSEMBLY
  • Ref. 2-62

2 7017995

  • 7017995 - EVAPORATOR

3 7011125

  • 7011125 - COIL
  • HEATER

4 7017997

  • 7017997 - HOUSING
  • BASE
  • Was 7019997

5 7018000

  • 7018000 - COVER
  • ASSY

6 7011122

  • 7011122 - DOOR
  • CONTROL AIR

7 7011121

  • 7011121 - BRACKET

8 7011120

  • 7011120 - LEVER

9 7011119

  • 7011119 - PLATE
  • SUPPORT

10 7017996

  • 7017996 - BRACKET
  • VALVE

11 7011118

  • 7011118 - LOUVER

12 7011117

  • 7011117 - PLATE

13 7017998

  • 7017998 - COVER
  • Was 7019998

14 6679085

  • 6679085 - SWITCH
  • LOW
  • LPCO - Was 6697954

15 7011128

  • 7011128 - HARNESS
  • HVAC
  • harness not shown - grommet included

16 7011112

  • 7011112 - CLAMP
  • CABLE

17 7011111

  • 7011111 - CABLE
  • A/C

18 7008034

  • 7008034 - BLOCK
  • VALVE A/C

19 7010331

  • 7010331 - FRESH AIR FILTER

20 7010332

  • 7010332 - FILTER RECIRCULATION

21 7009977

  • 7009977 - O-RING
  • #8 - Was 6675538

22 7003458

  • 7003458 - CLAMP
  • HOSE

23 6684947

  • 6684947 - GROMMET

24 7011110

  • 7011110 - BUSHING

25 7003459

  • 7003459 - GROMMET

26 7011109

  • 7011109 - FOAM

27 7003459

  • 7003459 - GROMMET

28 7018001

  • 7018001 - VALVE
  • DRAIN

29 7011108

  • 7011108 - INSULATION
  • HEATER

30 7011107

  • 7011107 - INSULATION
  • HEATER

31 7011106

  • 7011106 - INSULATION
  • HEATER

32 7011105

  • 7011105 - INSULATION
  • HEATER

33 7011104

  • 7011104 - INSULATION
  • HEATER

34 7011103

  • 7011103 - INSULATION
  • HEATER

35 6677555

  • 6677555 - RECEPTACLE

36 7011102

  • 7011102 - BOLT

37 6693223

  • 6693223 - WASHER

38 6691534

  • 6691534 - SCREW

39 6679675

  • 6679675 - NUT

40 6677119

  • 6677119 - SCREW

41 7011101

  • 7011101 - WASHER

42 7011100

  • 7011100 - NUT

43 6691532

  • 6691532 - SCREW
  • Was 6677118

44 7011099

  • 7011099 - STUD

45 6691532

  • 6691532 - SCREW
  • Was 7011098

46 7018002

  • 7018002 - CONNECTOR

47 7008040

  • 7008040 - MODULE
  • DE-ICER ELECTRONIC

48 6696953

  • 6696953 - FOAM

49 7011096

  • 7011096 - FOAM

50 6693236

  • 6693236 - FOAM

51 7023573

  • 7023573 - RESISTOR

52 7011131

  • 7011131 - BLOWER
  • HEATER AND A/C

53 6565977

  • 6565977 - HOSE HEATER BULK
  • sold per foot - Was 7003457

54 7003460

  • 7003460 - SEAL
  • FOAM

55 6684948

  • 6684948 - STRAP TIE

56 6676539

  • 6676539 - CLIP PANEL

57 6693234

  • 6693234 - FOAM

58 7018003

  • 7018003 - SEAL
  • FOAM

59 7003511

  • 7003511 - PLUG
