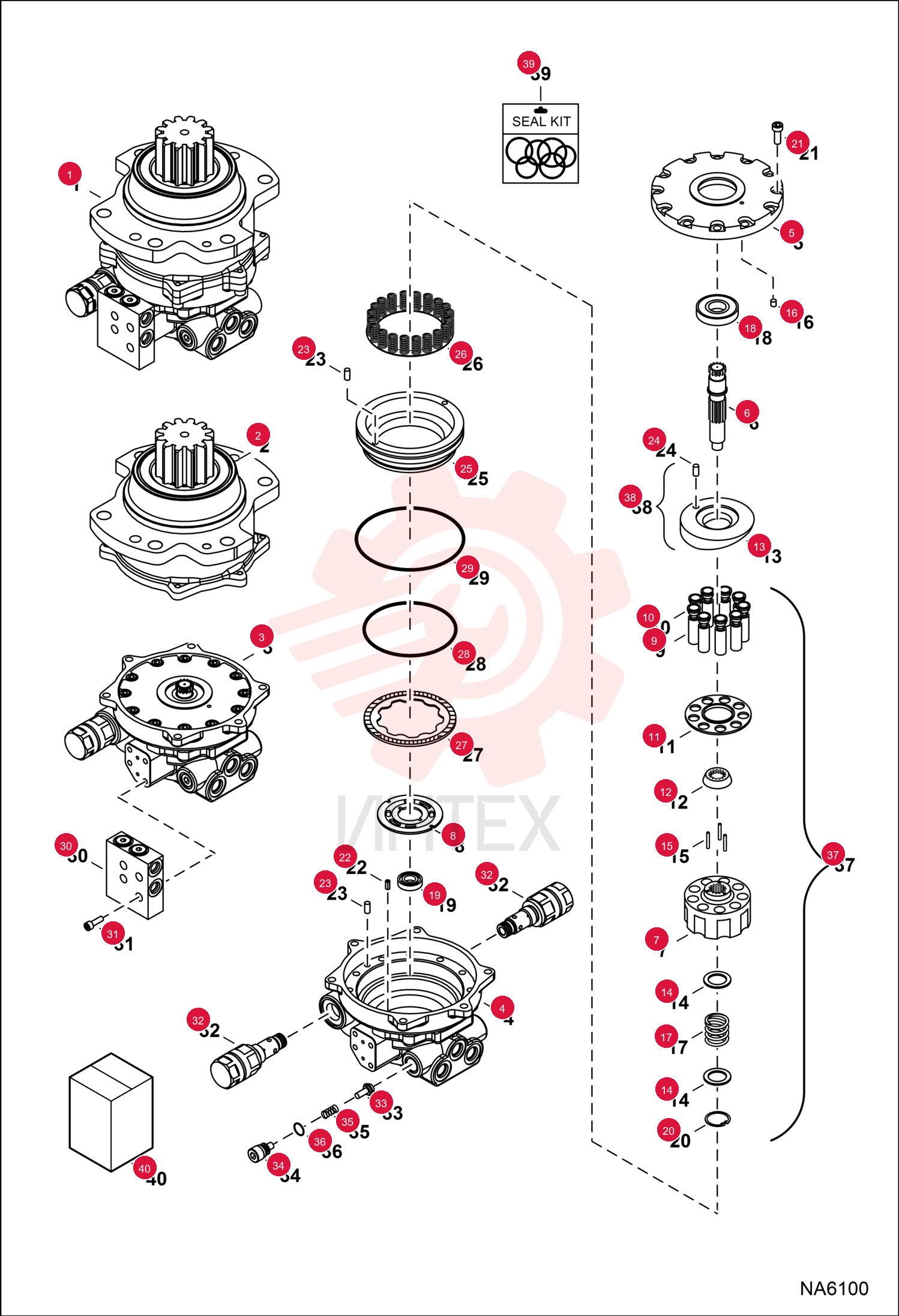

MOTOR, HYD SLEW 7008800 (2)

MOTOR, HYD SLEW 7008800 (2)

MOTOR, HYD SLEW 7008800 (2)

1 7008800

  • 7008800 - MOTOR
  • HYD SLEW
  • Ref. 2-36

2 7010801

  • 7010801 - SCREEN
  • DEBRIS

3 7022830

  • 7022830 - BEARING
  • MOTOR SLEW

4 7010803

  • 7010803 - BEARING
  • MOTOR SLEW

5 7010804

  • 7010804 - RING
  • SNAP

6 7010799

  • 7010799 - SCREW

7 7010807

  • 7010807 - PIN

8 7010808

  • 7010808 - O-RING

9 7010809

  • 7010809 - O-RING

10 7010821

  • 7010821 - VALVE
  • COUNTER BALANCE
  • - timer valve

11 7010810

  • 7010810 - SCREW

12 7022836

  • 7022836 - VALVE
  • RELIEF

13 7010811

  • 7010811 - O-RING

14 7022834

  • 7022834 - KIT
  • ROTARY GROUP
  • Ref. 7
  • 9-12
  • 14
  • 15
  • 17
  • & 20

15 7022835

  • 7022835 - SWASHPLATE
  • Ref. 13 & 24

16 7010828

  • 7010828 - KIT
  • SEAL
  • Ref. 28
  • 29
  • & 36

17 7022833

  • 7022833 - KIT
  • HOUSING MOTOR
  • Ref. 4
  • 19
  • 22
  • & 33-36
