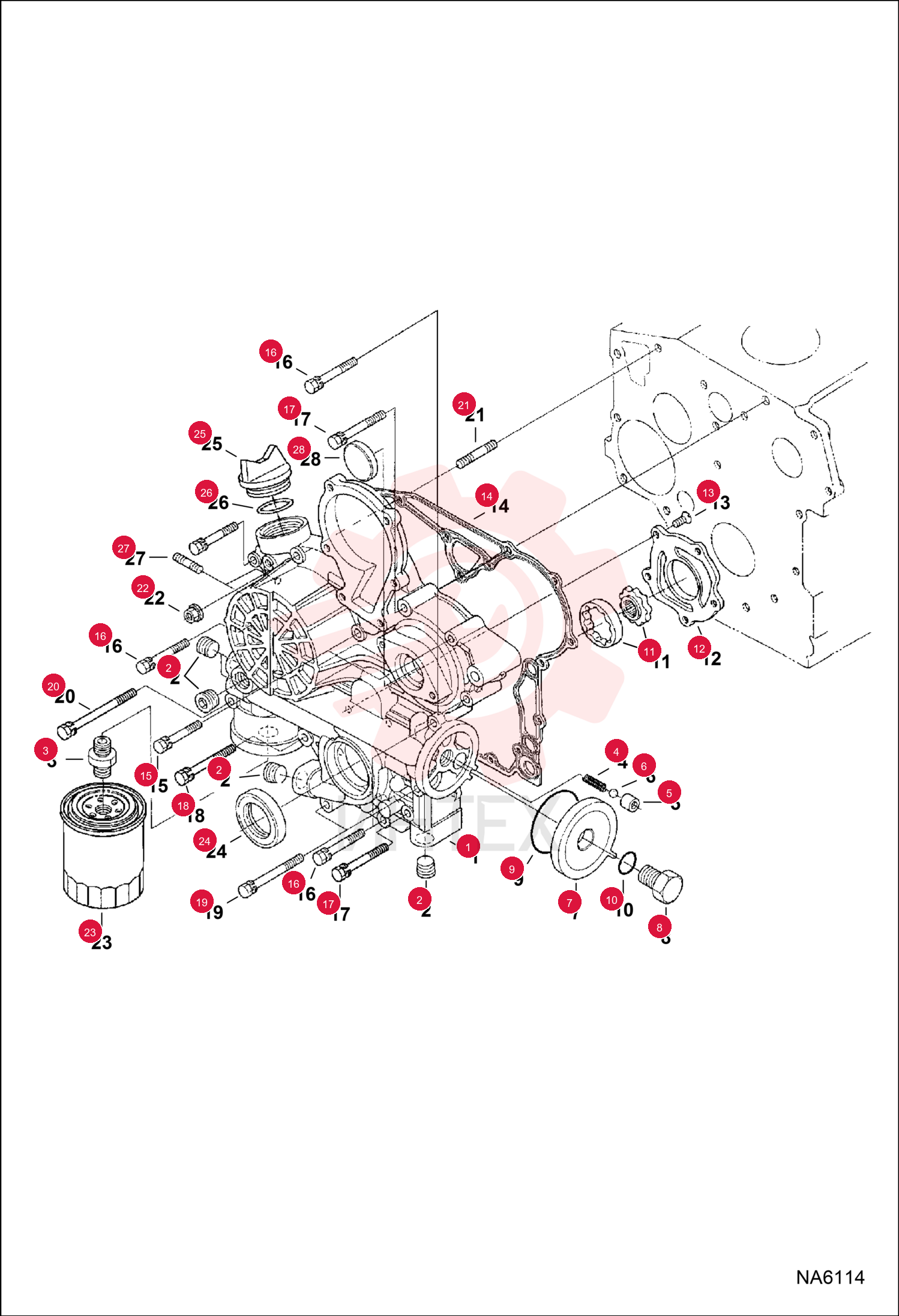

COMP. CASE, GEAR 6692540 (1)

COMP. CASE, GEAR 6692540 (1)

COMP. CASE, GEAR 6692540 (1)

1 6692540

  • 6692540 - COMP. CASE
  • GEAR
  • W/Ref. 2-13

2 6672360

  • 6672360 - PLUG

3 6652597

  • 6652597 - ADAPTER

4 6657554

  • 6657554 - SPRING

5 6657553

  • 6657553 - VALVE
  • SEAT

6 6657426

  • 6657426 - BALL

7 6657604

  • 6657604 - COVER

8 6688075

  • 6688075 - BOLT

9 6657422

  • 6657422 - O-RING

10 6670769

  • 6670769 - O-RING

11 6657549

  • 6657549 - ASY ROTOR

12 6657606

  • 6657606 - COVER

13 6657594

  • 6657594 - SCREW

14 6657479

  • 6657479 - GASKET

15 6657412

  • 6657412 - BOLT

16 6670770

  • 6670770 - BOLT

17 6657413

  • 6657413 - BOLT

18 6657457

  • 6657457 - BOLT

19 6657589

  • 6657589 - BOLT

20 6657613

  • 6657613 - BOLT

21 6680263

  • 6680263 - STUD

22 6653561

  • 6653561 - NUT

23 6657635

  • 6657635 - FILTER
  • OIL ENG

24 6657603

  • 6657603 - SEAL
  • OIL

25 6685924

  • 6685924 - OIL FILL CAP

26 6683009

  • 6683009 - O-RING

27 6680264

  • 6680264 - STUD

28 6681662

  • 6681662 - COVER
