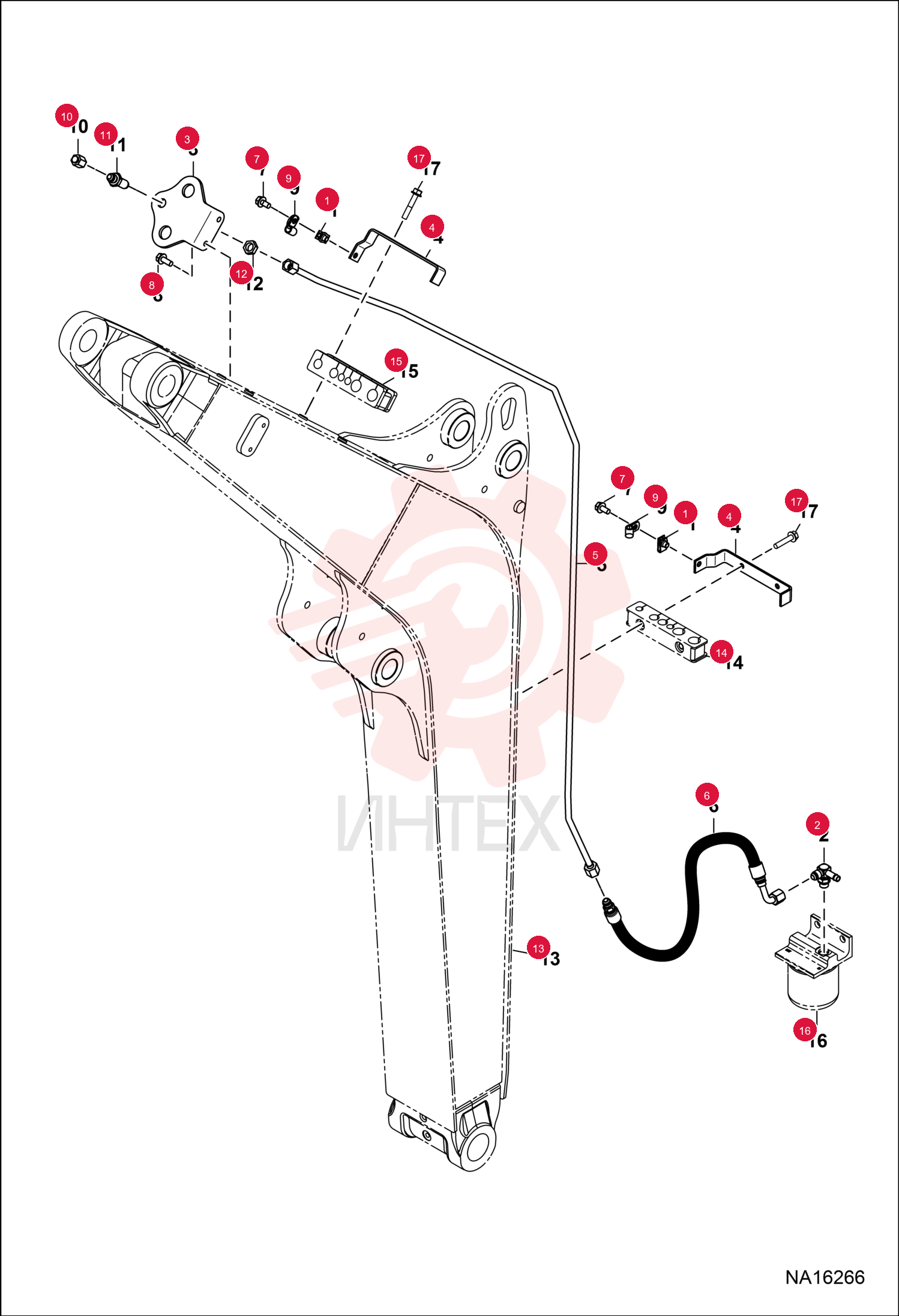

NUT 6676169 (2)

NUT 6676169 (2)

NUT 6676169 (2)

1 6676169

  • 6676169 - NUT

2 7244914

  • 7244914 - FITTING

3 7326272

  • 7326272 - PLATE AUXILIARY

4 7329993

  • 7329993 - BRACKET TUBELINES

5 7330832

  • 7330832 - TUBELINE HYDRAULIC

6 7343569

  • 7343569 - HOSE HYDRAULIC ASSY

7 29CM816

  • 29CM816 - SCREW FLGD HEX CAP

8 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

9 30H22

  • 30H22 - CLIP INSULATED

10 36K5

  • 36K5 - CAP

11 45K5

  • 45K5 - FITTING

12 86F5

  • 86F5 - NUT

13 7324498

  • 7324498 - CLAMP TUBELINE ASSY

14 7324691

  • 7324691 - CLAMP TUBELINE ASSY

15 7008929

  • 7008929 - FILTER
  • OIL HYD ASSY

16 29CM845

  • 29CM845 - SCREW HEX FLANGE
