Bobcat
/
E26
/

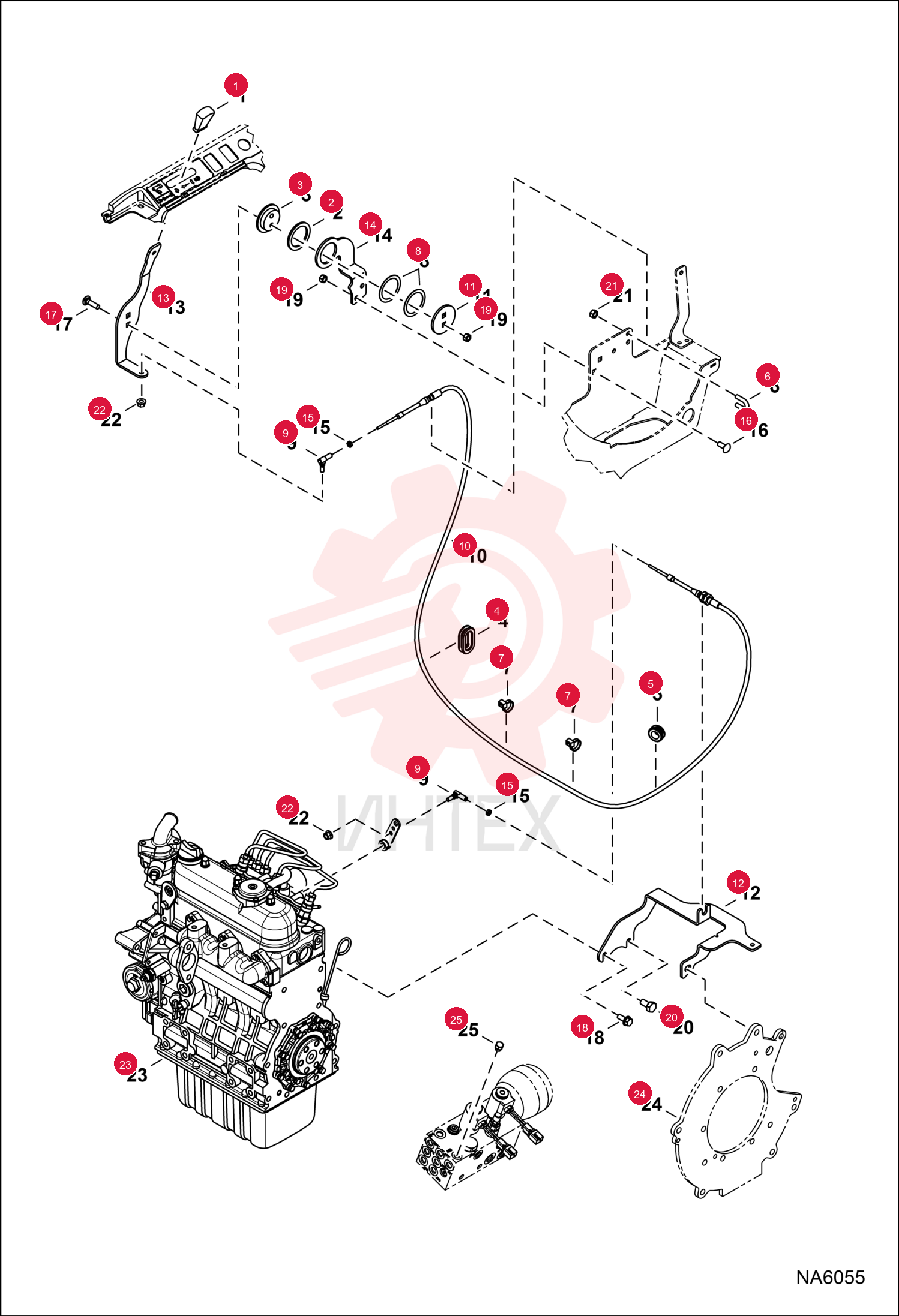

GRIP LEVER 6564452 (1)

GRIP LEVER 6564452 (1)

GRIP LEVER 6564452 (1)

1 6564452

  • 6564452 - GRIP LEVER

2 6567962

  • 6567962 - WASHER

3 6567963

  • 6567963 - SPACER

4 6577961

  • 6577961 - GROMMET

5 6587887

  • 6587887 - GROMMET

6 6592766

  • 6592766 - U-BOLT

7 6624289

  • 6624289 - STRAP
  • TIE

8 6630945

  • 6630945 - WASHER

9 6644965

  • 6644965 - BALL JOINT

10 6675668

  • 6675668 - CABLE
  • THROTTLE

11 7114497

  • 7114497 - WASHER

12 7187738

  • 7187738 - HOLDER
  • CABLE

13 7187750

  • 7187750 - LEVER
  • THROTTLE

14 7187751

  • 7187751 - BRACKET
  • LEVER

15 14D10

  • 14D10 - NUT HEX MACH SCREW

16 28CM820

  • 28CM820 - BOLT CARRIAGE 8.8

17 28CM830

  • 28CM830 - BOLT

18 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

19 53DM8

  • 53DM8 - NUT HX THDLK PREAPPL

20 5CM1020

  • 5CM1020 - SCREW FL THD HEX CAP

21 61D5

  • 61D5 - NUT HEX FINISHED GR5

22 98D4

  • 98D4 - NUT

23 24K2

  • 24K2 - PLUG

24 79K3

  • 79K3 - O RING 10
