Bobcat
/
E26
/

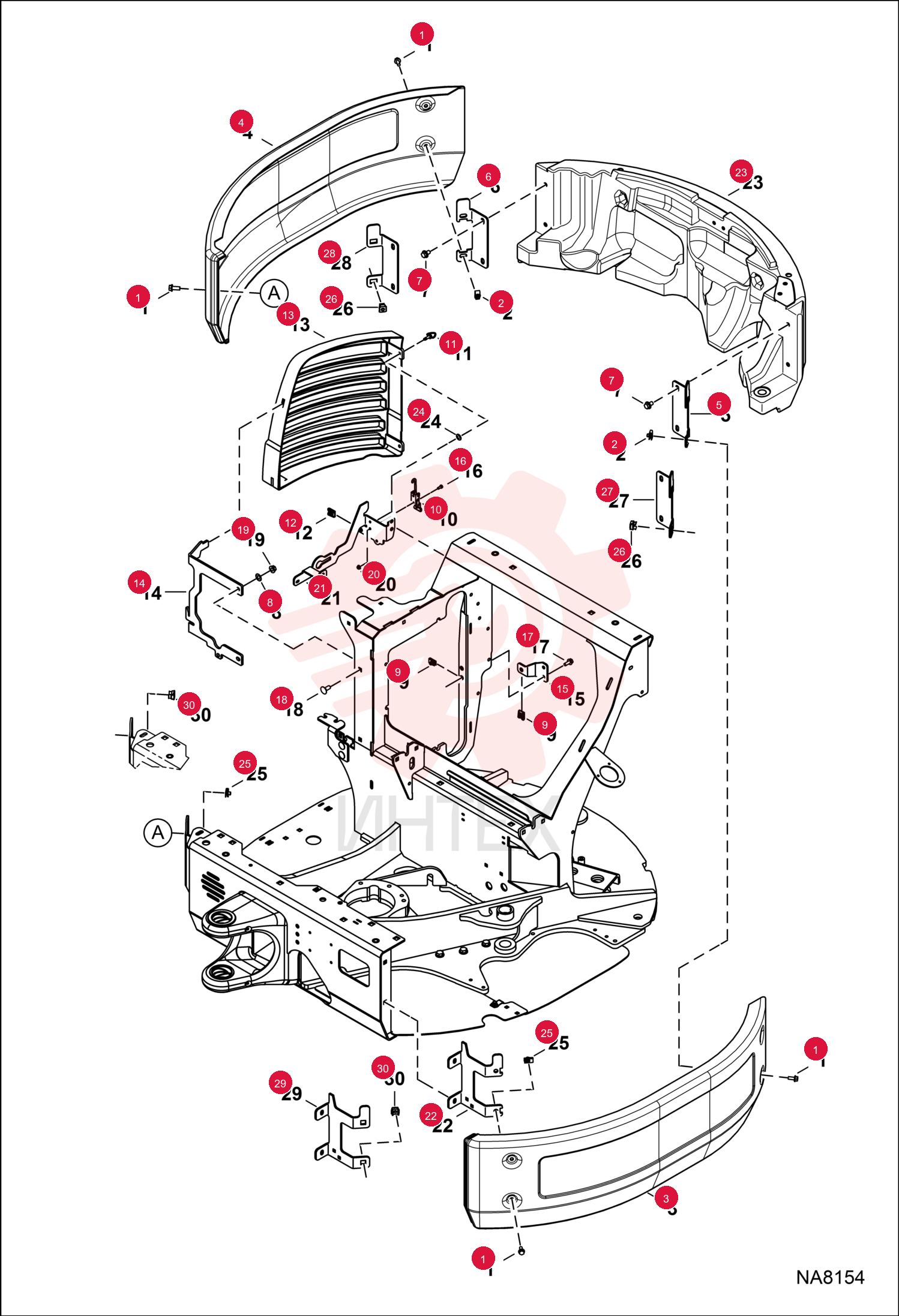

SCREW FLNGE HEX CAP 29CM820 (2)

SCREW FLNGE HEX CAP 29CM820 (2)

SCREW FLNGE HEX CAP 29CM820 (2)

1 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP
  • Was 29CM1025

2 6676169

  • 6676169 - NUT

3 7203629

  • 7203629 - COVER
  • SIDE

4 7203630

  • 7203630 - COVER
  • SIDE

5 7301407

  • 7301407 - BRACKET
  • CHANNEL SIDE

6 7301409

  • 7301409 - BRACKET
  • CHANNEL SIDE

7 29CM1016

  • 29CM1016 - SCREW FLANGE HEX CAP

8 6674264

  • 6674264 - RETAINER BOLT

9 6676169

  • 6676169 - NUT

10 7020243

  • 7020243 - LATCH

11 7020389

  • 7020389 - RETAINER

12 7186077

  • 7186077 - CLIP
  • - Was 7020390

13 7194839

  • 7194839 - SCREEN
  • DEBRIS

14 7194969

  • 7194969 - BRACKET

15 7195021

  • 7195021 - BRACKET

16 1CM512

  • 1CM512 - BOLT

17 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

18 33CM1025

  • 33CM1025 - BOLT

19 43DM10

  • 43DM10 - NUT FLANGED HEX

20 43DM5

  • 43DM5 - NUT

21 7189004

  • 7189004 - MOUNT
  • RADIATOR

22 7301410

  • 7301410 - BRACKET
  • CHANNEL SIDE

23 7186078

  • 7186078 - WASHER

24 6676169

  • 6676169 - NUT

25 7259002

  • 7259002 - CAGE
  • NUT

26 7189074

  • 7189074 - BRACKET
  • COVER

27 7189075

  • 7189075 - BRACKET
  • COVER

28 7187744

  • 7187744 - BRACKET
  • CHANNEL SIDE

29 7254120

  • 7254120 - NUT
  • CLIP
