E26
/

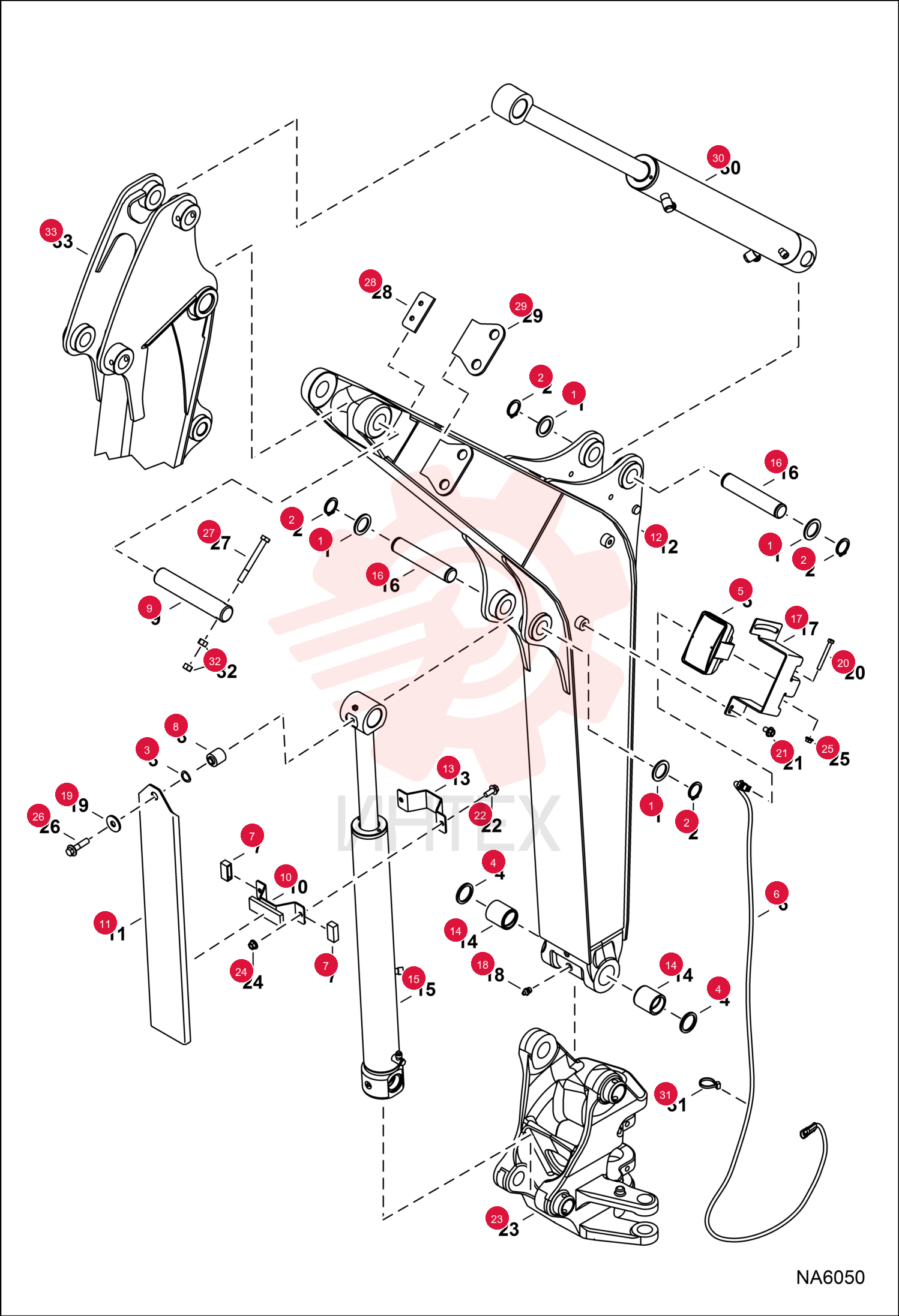

WASHER, 5 6534111 (14)

WASHER, 5 6534111 (14)

WASHER, 5 6534111 (14)

1 6534111

  • 6534111 - WASHER
  • 5

2 6534154

  • 6534154 - RING
  • RETAINER

3 6536803

  • 6536803 - WASHER

4 6660075

  • 6660075 - SEAL

5 6692400

  • 6692400 - BULB

6 6675938

  • 6675938 - LIGHT
  • SEALED BEAM
  • NLA - Was 7018038

7 7135895

  • 7135895 - HARNESS

8 7144089

  • 7144089 - COVER

9 7154460

  • 7154460 - SPACER

10 7154697

  • 7154697 - PIN

11 7270886

  • 7270886 - SHIELD
  • NLA - Was 7158551

12 7158554

  • 7158554 - SHIELD
  • CYL

13 7162323

  • 7162323 - BOOM
  • ARM DIPPER
  • Also Order Ref. 4
  • 14 & 18

14 7282693

  • 7282693 - CLAMP
  • SHIELD

15 7164261

  • 7164261 - BUSHING
  • WEAR

16 7183687

  • 7183687 - PIN

17 7195369

  • 7195369 - BRACKET
  • LIGHT WORKING
  • NA Only

18 7237068

  • 7237068 - BRACKET
  • EMEA Only - Was 7239093

19 10H25

  • 10H25 - FTG GREASE STRAIGHT

20 17EM120

  • 17EM120 - WASHER

21 1CM655

  • 1CM655 - SCREW

22 29CM1016

  • 29CM1016 - SCREW FLANGE HEX CAP

23 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

24 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

25 51DM6

  • 51DM6 - NUT HX THDLK PREAPPL

26 29CM1235

  • 29CM1235 - BOLT
  • Was 29CM01235B

27 7CM12110

  • 7CM12110 - SCREW HEX HD CAP

28 7207340

  • 7207340 - BRACKET
  • weld-on

29 7207339

  • 7207339 - BRACKET
  • weld-on

30 6624289

  • 6624289 - STRAP
  • TIE

31 4DM12

  • 4DM12 - NUT HEX
