Bobcat
/
E26
/

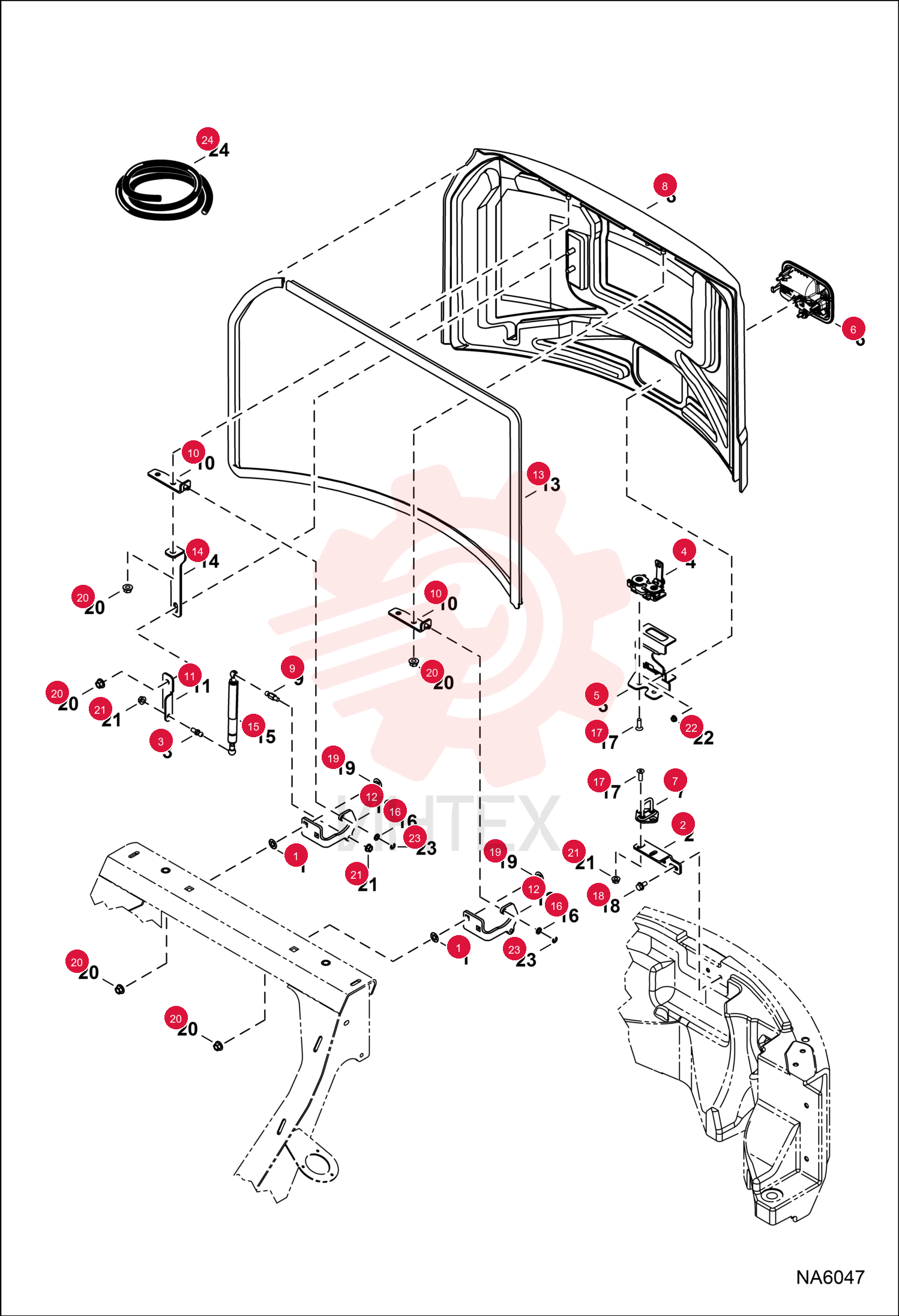

NUT 6675722

NUT 6675722

NUT 6675722

1 6675722

  • 6675722 - NUT
  • - Use W/ 7282453 (hinge) & 6817769 (screw)

2 6674264

  • 6674264 - RETAINER BOLT
  • - Use W/ 7254921 (hinge) & 28CM1025 (bolt)

3 7166867

  • 7166867 - BRACKET

4 7170322

  • 7170322 - STUD
  • BALL JOINT

5 7170871

  • 7170871 - LATCH
  • DOOR REAR

6 7170872

  • 7170872 - BRACKET
  • LATCH

7 7351798

  • 7351798 - HANDLE DOOR
  • Was 7170873

8 7170944

  • 7170944 - STRIKER
  • LATCH DOOR

9 7173084

  • 7173084 - REAR DOOR

10 7177735

  • 7177735 - STUD
  • BALL JOINT

11 7280926

  • 7280926 - HINGE
  • TAILGATE
  • - Use W/ 7282453 (hinge) & 6513495 (pin)

12 7196490

  • 7196490 - HINGE
  • DOOR REAR
  • - Use W/ 7254921 (hinge) & 9JM60 (pin)

13 7196591

  • 7196591 - PLATE
  • HOLDER

14 7282453

  • 7282453 - HINGE
  • TAILGATE
  • - if equipped - round bolt holes - Use W/ 6675722 (nut)
  • 7280926 (hinge)
  • 6817769 (screw)
  • & 6513495 (pin)

15 7254921

  • 7254921 - HINGE
  • TAILGATE
  • - if equippped - square carriage bolt holes - Use W/ 6674264 (nut)
  • 7196490 (hinge)
  • 28CM1025 (bolt)
  • & 9JM60 (pin)

16 7254922

  • 7254922 - BRACE
  • UPRIGHT

17 7355815

  • 7355815 - SPRING GAS
  • Was 7202414

18 15EM80

  • 15EM80 - WASHER

19 23GM825

  • 23GM825 - SCREW

20 29CM816

  • 29CM816 - SCREW FLGD HEX CAP

21 6817769

  • 6817769 - SCREW
  • - Use W/ 7282453 (hinge)
  • & 6675722 (nut)

22 28CM1025

  • 28CM1025 - BOLT CARRIAGE 8.8
  • - Use W/ 7254921 (hinge) & 6674264 (nut)

23 43DM10

  • 43DM10 - NUT FLANGED HEX

24 43DM8

  • 43DM8 - NUT FLANGED HEX

25 51DM6

  • 51DM6 - NUT HX THDLK PREAPPL

26 6513495

  • 6513495 - PIN 5
  • - Use W/ 7280926 (hinge)

27 9JM60

  • 9JM60 - PIN
  • RETAINER
  • - Use W/ 7196490 (hinge)

28 7160901

  • 7160901 - SEAL
  • BULB
  • bulk - sold per foot
