Bobcat
/
E27
/

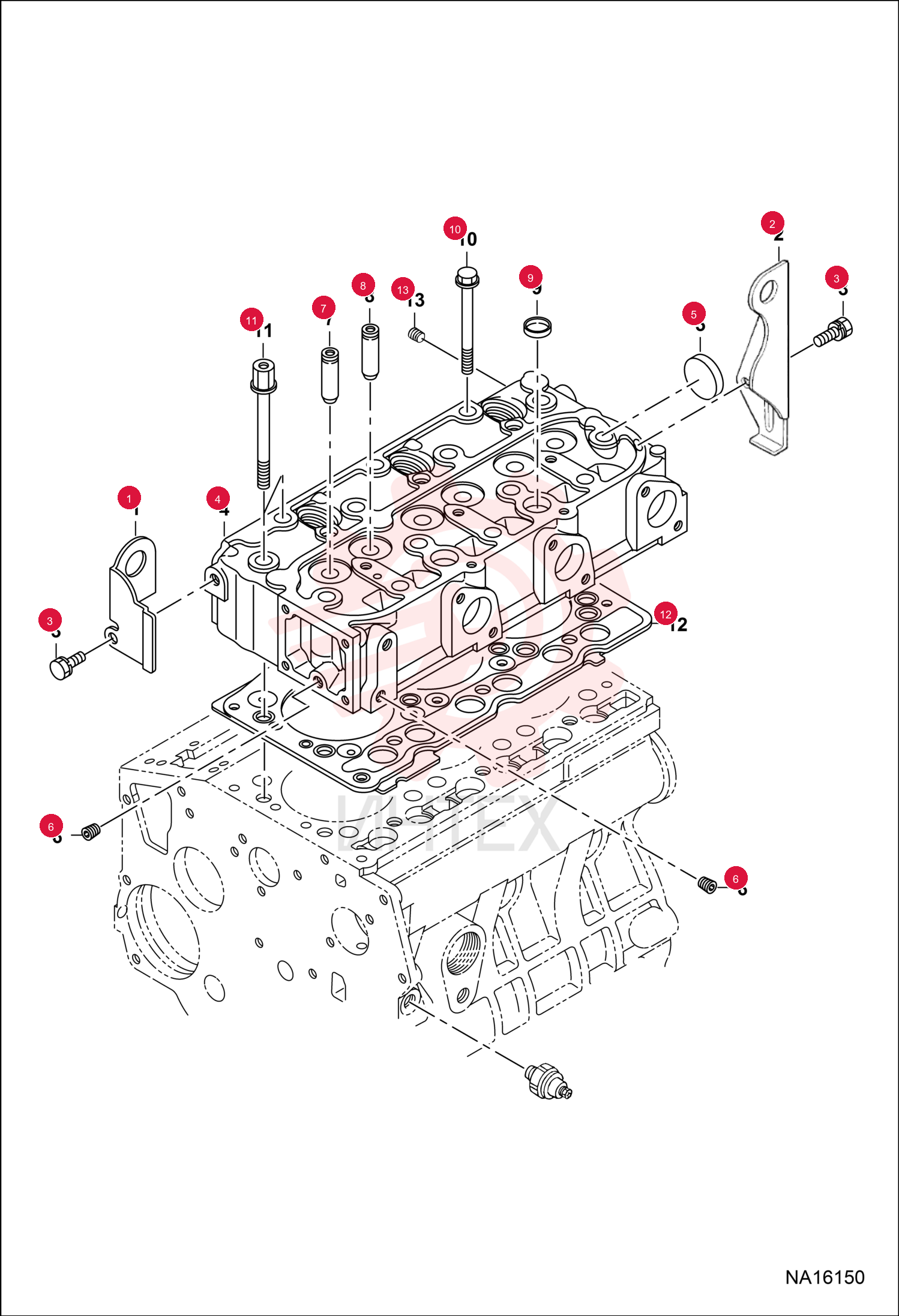

HOOK 6657476 (1)

HOOK 6657476 (1)

HOOK 6657476 (1)

1 6657476

  • 6657476 - HOOK
  • Was 6680485

2 6657477

  • 6657477 - HOOK
  • Was 6680486

3 6693964

  • 6693964 - BOLT
  • Was 7353945

4 7353946

  • 7353946 - HEAD CYLINDER
  • W/Ref. 5 -9

5 7247454

  • 7247454 - PLUG
  • sealing

6 6598116

  • 6598116 - PLUG

7 6685957

  • 6685957 - GUIDE
  • inlet valve

8 6685958

  • 6685958 - GUIDE
  • exhaust valve

9 6680637

  • 6680637 - CAP
  • sealing

10 6657478

  • 6657478 - BOLT

11 7022682

  • 7022682 - BOLT

12 7348626

  • 7348626 - GASKET HEAD

13 6657466

  • 6657466 - GASKET
