Bobcat
/
E27
/

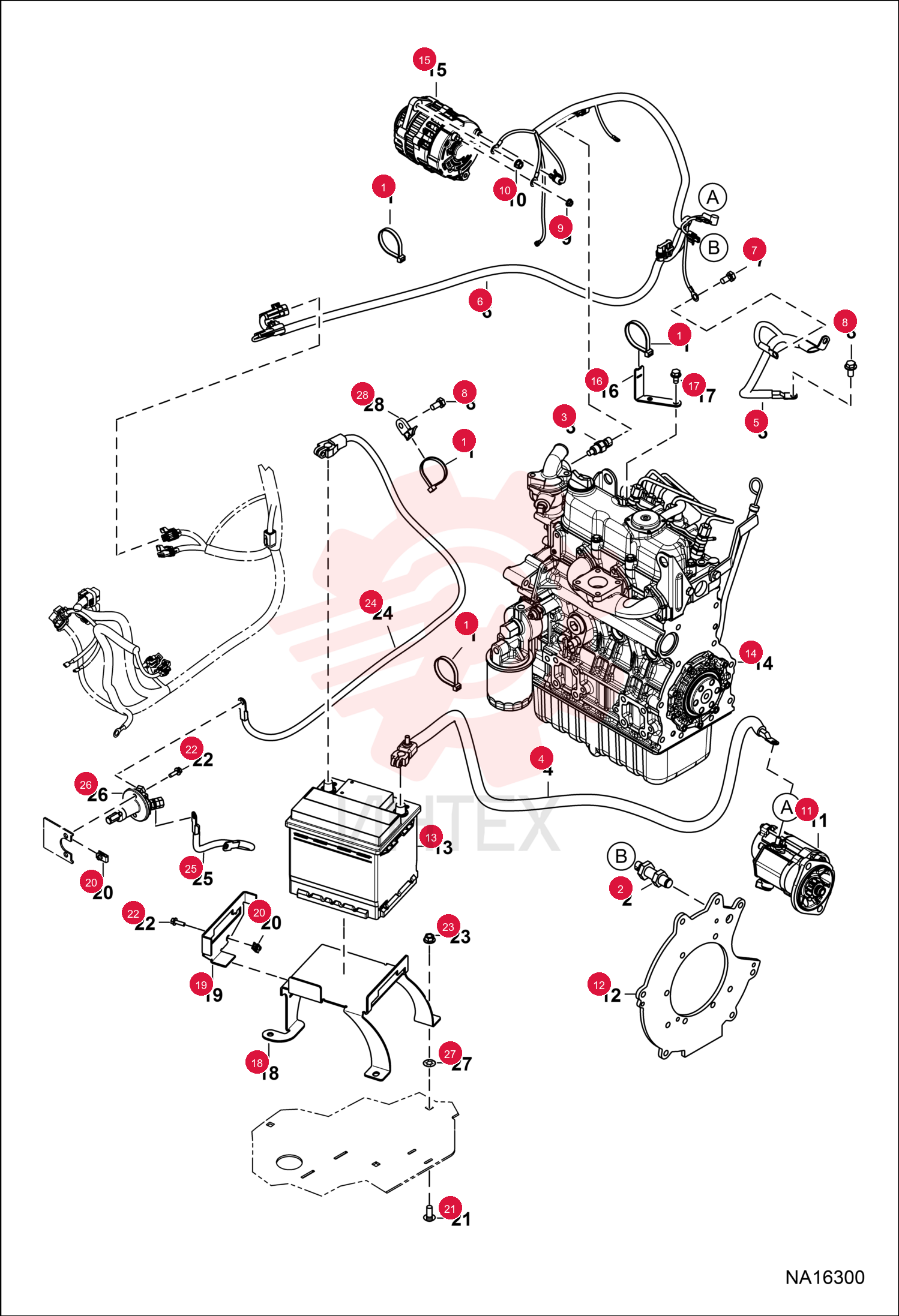

STRAP, TIE 6624289 (5)

STRAP, TIE 6624289 (5)

STRAP, TIE 6624289 (5)

1 6624289

  • 6624289 - STRAP
  • TIE

2 6693921

  • 6693921 - SENSOR
  • RPM

3 6718414

  • 6718414 - SENDER
  • TEMP ENG

4 7283254

  • 7283254 - CABLE BATTERY POSITIVE

5 7283080

  • 7283080 - CABLE BATTERY NEGATIVE

6 7283150

  • 7283150 - HARNESS ENGINE

7 29CM1020

  • 29CM1020 - SCREW HEX 10MMX20MM
  • frame ground

8 5CM1020

  • 5CM1020 - SCREW FL THD HEX CAP
  • engine ground

9 43DM6

  • 43DM6 - NUT FLANGED HEX
  • alternator

10 43DM8

  • 43DM8 - NUT FLANGED HEX

11 7253205

  • 7253205 - STARTER

12 7226759

  • 7226759 - PLATE
  • FLYWHEEL

13 7304126

  • 7304126 - BATTERY DRY

14 7277380

  • 7277380 - ENGINE D1305 24.8 HP EPA T4 / EU STG V

15 7276403

  • 7276403 - ALTERNATOR 65 AMP

16 7338316

  • 7338316 - BRACKET HARNESS

17 29CM812

  • 29CM812 - BOLT

18 7305739

  • 7305739 - BATTERY BASE

19 7306854

  • 7306854 - BATTERY LOCK

20 6676026

  • 6676026 - NUT

21 28CM1025

  • 28CM1025 - BOLT CARRIAGE 8.8

22 29CM620

  • 29CM620 - SCREW FLGD HEX CAP

23 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

24 7319546

  • 7319546 - CABLE BATTERY NEGATIVE

25 7305629

  • 7305629 - CABLE NEGATIVE

26 7324553

  • 7324553 - BATTERY DISCONNECT

27 6674264

  • 6674264 - RETAINER BOLT

28 6679034

  • 6679034 - MOUNT
