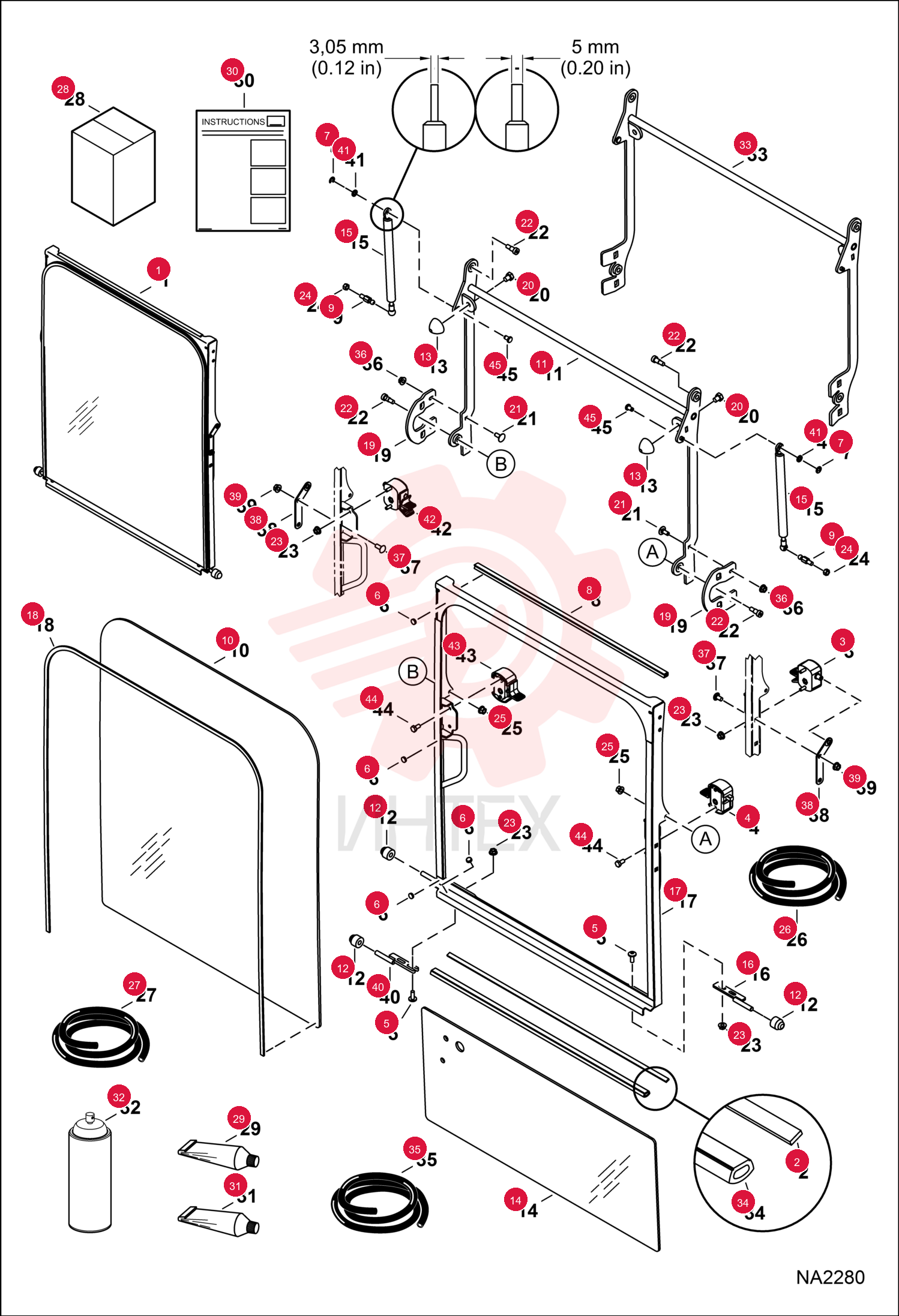

INSTRUCTIONS 6990363
1 6990363
- 6990363 - INSTRUCTIONS
2 7023294
- 7023294 - LATCH
- LH
- W/square pin
3 6803202
- 6803202 - SCREW
4 7101512
- 7101512 - BUMPER
5 9JM60
- 9JM60 - PIN
- RETAINER
6 7177735
- 7177735 - STUD
- BALL JOINT
7 7220258
- 7220258 - LINK
- WINDOW FRONT
8 7178689
- 7178689 - ROLLER
9 7178702
- 7178702 - BUMPER
- RUBBER
10 7179045
- 7179045 - WINDOW
- CAB LOWER
- Also order (2) 7174507
11 7209896
- 7209896 - GAS SPRING
- 5 mm (.20") base end - must use in matching pairs
12 7179320
- 7179320 - GAS SPRING
- 3
- 05 mm (.12") base end - must use in matching pairs
13 7214569
- 7214569 - MOUNT
- ROLLER
14 7220029
- 7220029 - FRAME
- WINDOW FRONT
15 7194706
- 7194706 - PLATE
- LATCH
- Use W/Ref. 11
16 1CM1012
- 1CM1012 - SCREW
17 28CM820
- 28CM820 - BOLT CARRIAGE 8.8
- 8 mm thread
18 28CM620
- 28CM620 - BOLT CARRIAGE 8.8
- 6 mm thread - Was 21CM616
19 38C608
- 38C608 - SCREW
20 51DM6
- 51DM6 - NUT HX THDLK PREAPPL
21 53DM8
- 53DM8 - NUT HX THDLK PREAPPL
22 83D5
- 83D5 - LKNUT HEX FLG GR8
23 6648416
- 6648416 - SEAL BULK /FT
- sold per foot
24 6682492
- 6682492 - EDGE TRIM BULK/FT
- bulk - sold per foot
25 7185152
- 7185152 - KIT WINDOW
- Ref. 6
- 10
- 29
- & 30 - Also Order Ref. 31 & 32
26 7230824
- 7230824 - ADHESIVE
- NON-PRIMER
- 0
- 31 L (10.5 oz) - Was 6808882
27 6989489ENUS
- 6989489ENUS - INSTRUCTIONS
- Was 6989489
28 7110861
- 7110861 - CLEANER
29 7173999
- 7173999 - SEAL
- BULK
- BULB
- bulk - sold per foot
30 51DM8
- 51DM8 - NUT HX THDLK PREAPPL
- 8 mm thread
31 51DM6
- 51DM6 - NUT HX THDLK PREAPPL
- 6 mm thread
32 33GM816
- 33GM816 - SCREW
- torx - if equipped
33 28CM816
- 28CM816 - BOLT CARRIAGE 8.8
- carriage - if equipped
34 7192212
- 7192212 - BRACKET
- LATCH
- if equipped - Use W/NLA latch W/round pin only
35 51DM8
- 51DM8 - NUT HX THDLK PREAPPL
- 8 mm thread
36 7214570
- 7214570 - MOUNT
- ROLLER
37 15EM80
- 15EM80 - WASHER
- if equipped
38 7023293
- 7023293 - LATCH
- RH
- W/square pin
39 4CM612
- 4CM612 - BOLT
- Use W/square pin latch - Was 1CM612
40 7214146
- 7214146 - PIN
