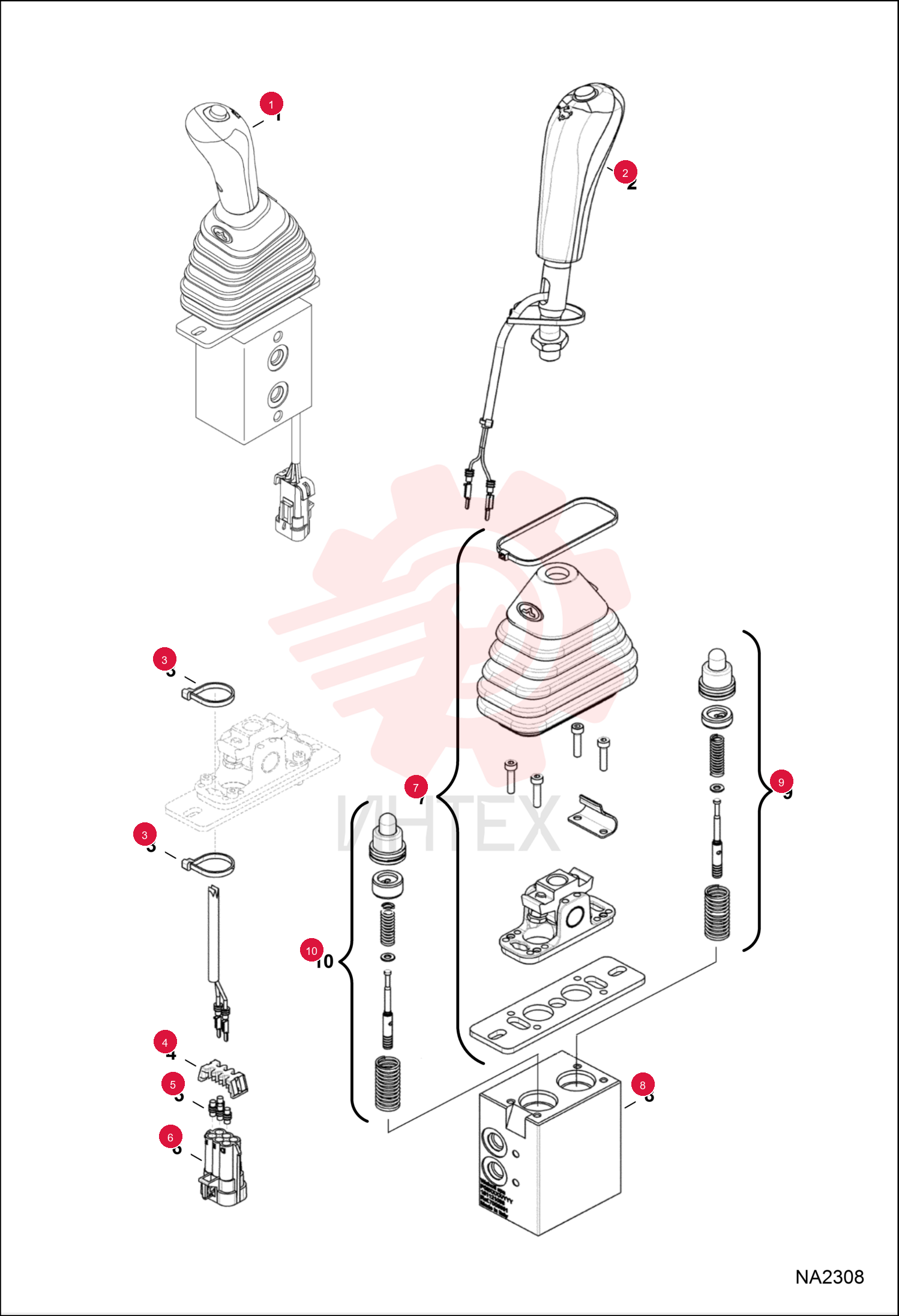

JOYSTICK, BLADE 7008581 (1)

JOYSTICK, BLADE 7008581 (1)

JOYSTICK, BLADE 7008581 (1)

1 7008581

  • 7008581 - JOYSTICK
  • BLADE
  • Ref. 2-10

2 7010549

  • 7010549 - HANDLE
  • JOYSTICK

3 6610510

  • 6610510 - STRAP
  • TIE 10

4 7010550

  • 7010550 - LOCK
  • 6 pin

5 7010551

  • 7010551 - PLUG

6 7010552

  • 7010552 - CONNECTOR
  • 6 pin

7 7010553

  • 7010553 - BASE
  • JOYSTICK

8 7010554

  • 7010554 - HOUSING
  • JOYSTICK

9 7010555

  • 7010555 - SPOOL
  • ACTUATOR ASSY

10 7010556

  • 7010556 - SPOOL
  • ACTUATOR ASSY
