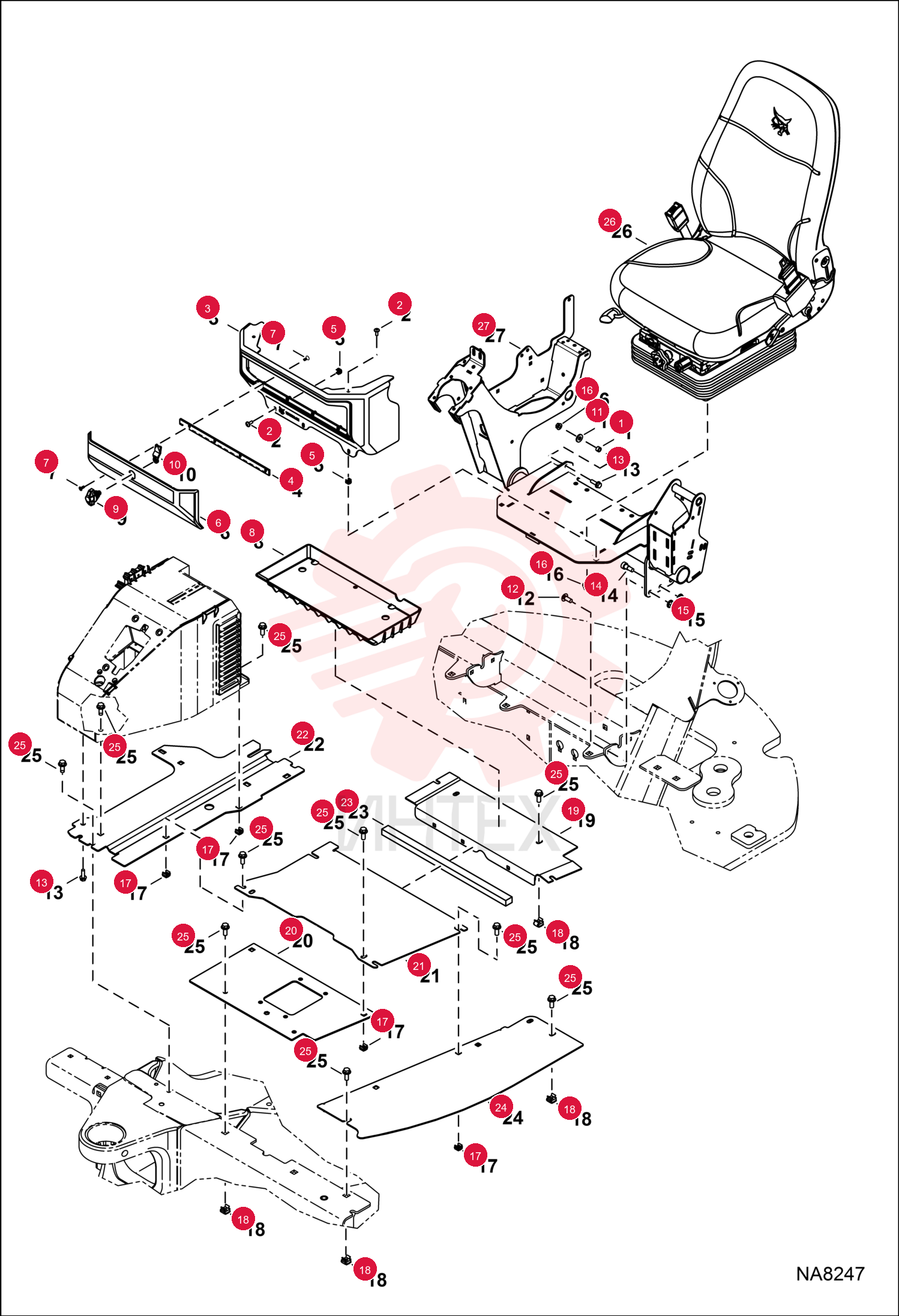

SPACER 6802539 (4)

SPACER 6802539 (4)

SPACER 6802539 (4)

1 6802539

  • 6802539 - SPACER

2 6803202

  • 6803202 - SCREW

3 7170706

  • 7170706 - CONTAINER
  • STORAGE

4 7170709

  • 7170709 - HINGE
  • COVER

5 7170765

  • 7170765 - NUT

6 7188090

  • 7188090 - DOOR
  • STORAGE

7 7208340

  • 7208340 - SCREW

8 7236279

  • 7236279 - MAT
  • FLOOR

9 7239170

  • 7239170 - LATCH
  • HANDLE

10 7239274

  • 7239274 - CAM
  • LEVER

11 25E16

  • 25E16 - WASHER FLAT PLAIN

12 28CM1025

  • 28CM1025 - BOLT CARRIAGE 8.8

13 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

14 38CM1212

  • 38CM1212 - BOLT
  • SHOULDER

15 43DM10

  • 43DM10 - NUT FLANGED HEX

16 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

17 7155411

  • 7155411 - NUT

18 7155413

  • 7155413 - NUT

19 7256421

  • 7256421 - PLATE
  • FLOOR REAR

20 7226511

  • 7226511 - PLATE
  • FLOOR

21 7226512

  • 7226512 - PLATE
  • FLOOR

22 7256196

  • 7256196 - PLATE
  • FLOOR

23 7226515

  • 7226515 - SEAL
  • FOAM

24 7226701

  • 7226701 - PLATE
  • FLOOR

25 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

26 7334688

  • 7334688 - FRAME OPERATOR W/A
  • Was 7218096
