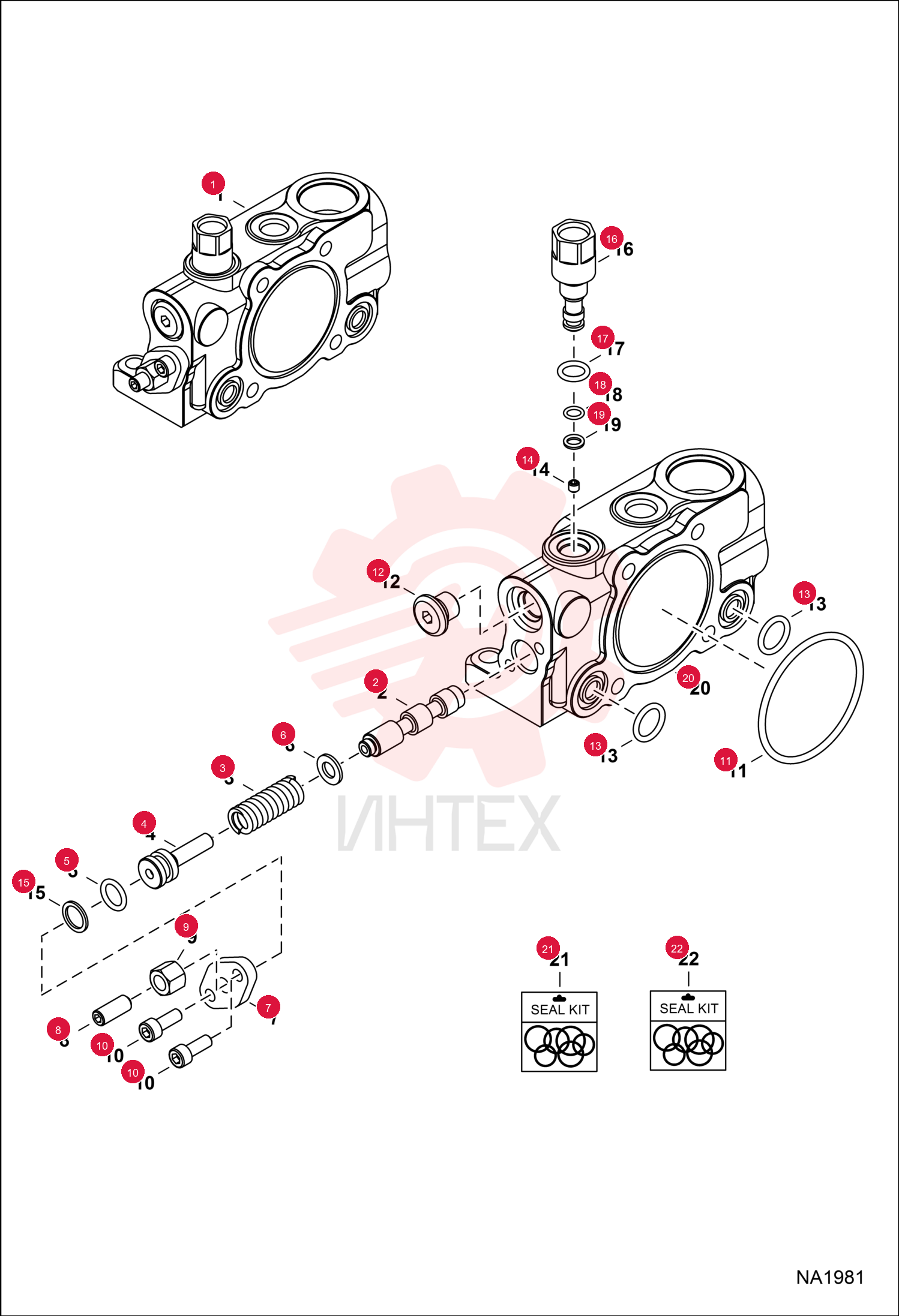

SECTION, VALVE 7012685 (2)

SECTION, VALVE 7012685 (2)

SECTION, VALVE 7012685 (2)

1 7012685

  • 7012685 - SECTION
  • VALVE
  • inlet - Ref. 2-20

2 7012702

  • 7012702 - SPRING
  • VALVE

3 7012703

  • 7012703 - SPACER

4 6670229

  • 6670229 - O-RING

5 7009630

  • 7009630 - WASHER

6 7012704

  • 7012704 - COVER
  • FLANGE

7 7012705

  • 7012705 - SCREW

8 7012706

  • 7012706 - NUT

9 7012707

  • 7012707 - BOLT

10 7012708

  • 7012708 - O-RING

11 7012709

  • 7012709 - PLUG

12 7012710

  • 7012710 - O-RING

13 7012711

  • 7012711 - PLUG
  • ORIFICE

14 6660719

  • 6660719 - BAKUPRING

15 7012712

  • 7012712 - PLUG

16 6670224

  • 6670224 - O-RING

17 6670227

  • 6670227 - O-RING

18 6653446

  • 6653446 - RING
  • BACK-UP

19 7012777

  • 7012777 - KIT
  • SEAL
  • Ref. 11 & 13

20 7020610

  • 7020610 - KIT
  • SEAL
  • Ref. 5
  • 15
  • & 17-19 - Was 7012776
