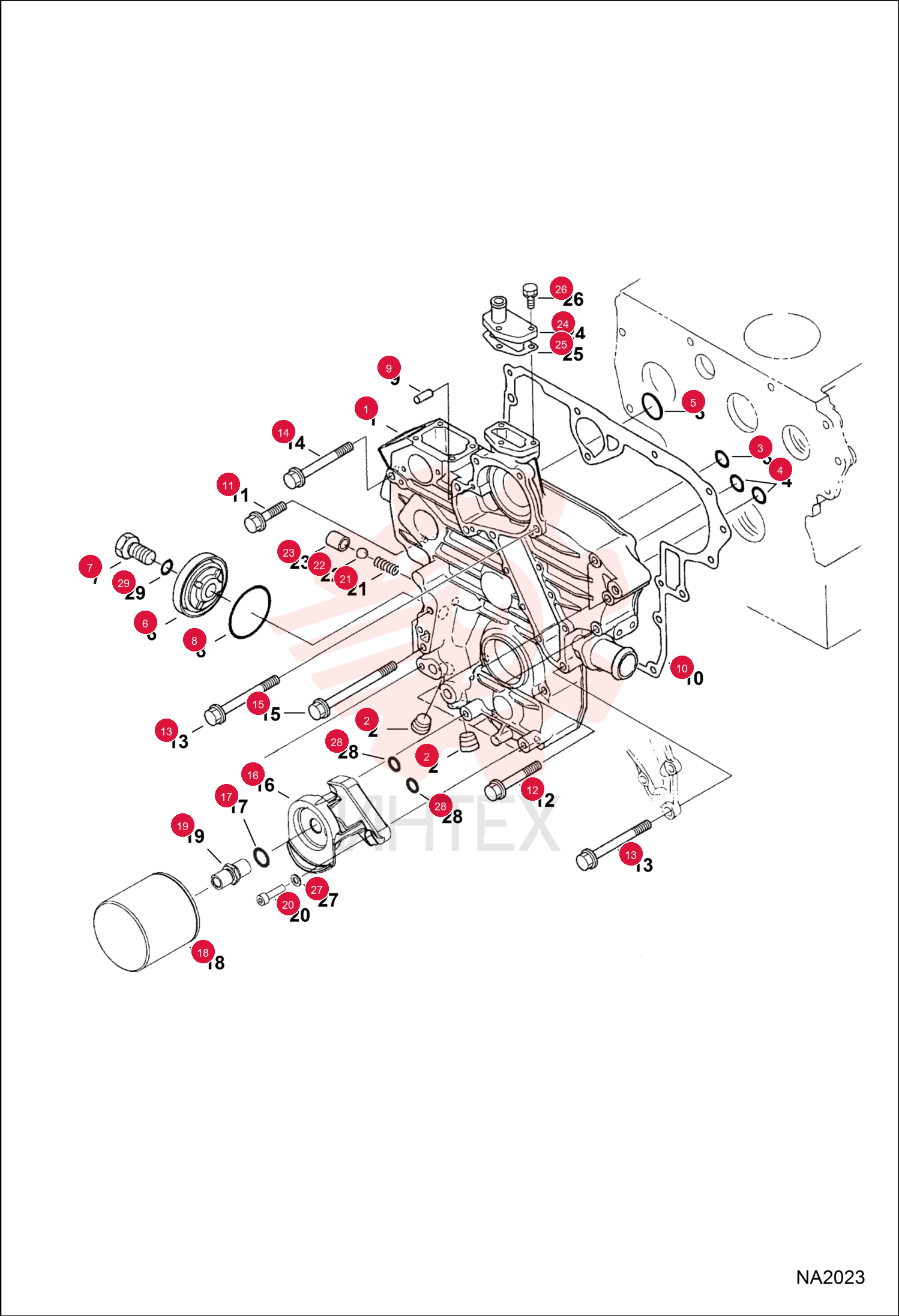

HOUSING, GEAR 7016900 (1)

HOUSING, GEAR 7016900 (1)

HOUSING, GEAR 7016900 (1)

1 7016900

  • 7016900 - HOUSING
  • GEAR
  • W/Ref. 2

2 6698263

  • 6698263 - HOUSING
  • GEAR FRT
  • W/Ref. 2

3 6672360

  • 6672360 - PLUG

4 6685466

  • 6685466 - O-RING

5 6685467

  • 6685467 - O-RING

6 6685468

  • 6685468 - O-RING

7 6684766

  • 6684766 - COVER

8 6684768

  • 6684768 - BOLT

9 6684769

  • 6684769 - O-RING

10 3974395

  • 3974395 - PIN
  • straight

11 7010599

  • 7010599 - GASKET
  • GEARCASE

12 6684770

  • 6684770 - GASKET
  • gear case

13 6680706

  • 6680706 - BOLT

14 6692375

  • 6692375 - BOLT

15 6692377

  • 6692377 - BOLT

16 6680686

  • 6680686 - BOLT

17 6692376

  • 6692376 - BOLT

18 7204111

  • 7204111 - ADAPTER
  • FILTER OIL
  • Was 7166578

19 6536802

  • 6536802 - WASHER

20 6675517

  • 6675517 - FILTER
  • OIL ENG 12

21 7168523

  • 7168523 - CONNECTOR
  • oil filter

22 3GM830

  • 3GM830 - SCREW

23 6652652

  • 6652652 - SPRING

24 10J13

  • 10J13 - BALL

25 3974893

  • 3974893 - SEAT
  • valve

26 3974894

  • 3974894 - FLANGE
  • water return

27 6666803

  • 6666803 - GASKET
  • water return flange

28 4CM620

  • 4CM620 - BOLT
  • Was 1CM620

29 15EM80

  • 15EM80 - WASHER

30 54K30018

  • 54K30018 - O-RING

31 6685466

  • 6685466 - O-RING
