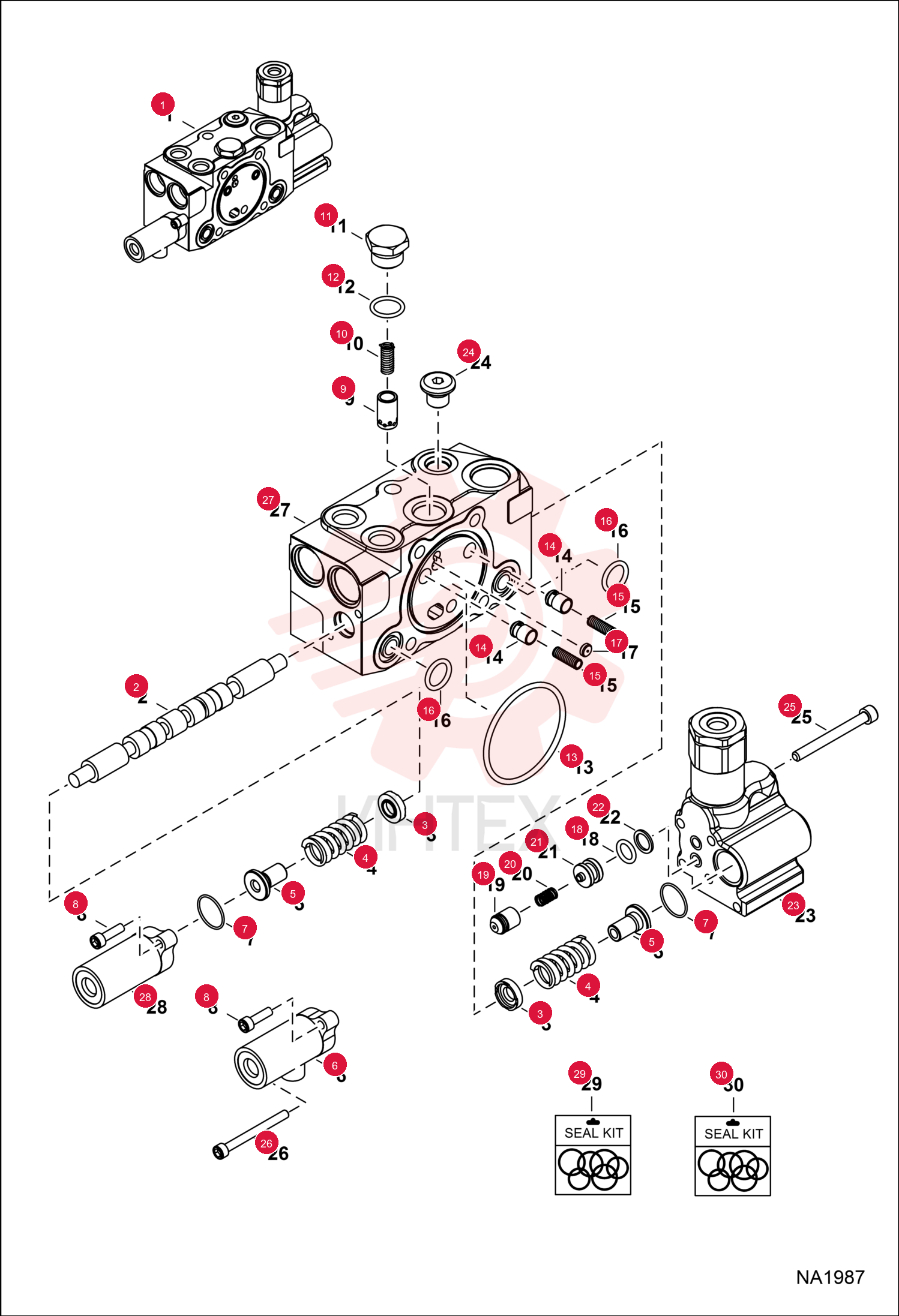

SECTION, VALVE 7012691

SECTION, VALVE 7012691

SECTION, VALVE 7012691

1 7012691

  • 7012691 - SECTION
  • VALVE
  • boom - Ref. 2-27

2 7028569

  • 7028569 - SECTION
  • VALVE
  • boom - Ref. 2-5 & 7-28

3 7012713

  • 7012713 - SEAT
  • SPRING

4 7012714

  • 7012714 - SPRING
  • VALVE

5 7012715

  • 7012715 - SEAT
  • SPRING

6 7012724

  • 7012724 - CAP
  • END
  • dual port

7 7012717

  • 7012717 - O-RING

8 7012718

  • 7012718 - BOLT

9 7012719

  • 7012719 - SPRING
  • VALVE

10 7012720

  • 7012720 - PLUG

11 7012721

  • 7012721 - O-RING

12 7012708

  • 7012708 - O-RING

13 7012722

  • 7012722 - POPPET

14 7012723

  • 7012723 - SPRING
  • VALVE

15 7012710

  • 7012710 - O-RING

16 6670224

  • 6670224 - O-RING

17 7012731

  • 7012731 - RING
  • BACK-UP

18 7012758

  • 7012758 - VALVE
  • ANTI DRIFT

19 7012709

  • 7012709 - PLUG

20 7012759

  • 7012759 - BOLT

21 7012725

  • 7012725 - BOLT

22 7012716

  • 7012716 - CAP
  • END

23 7012777

  • 7012777 - KIT
  • SEAL
  • Ref. 13 & 16

24 7020609

  • 7020609 - KIT
  • SEAL
  • Ref. 7
  • 12
  • 18
  • & 22 - this is a standard seal kit some seals may not be used - Was 7012776
