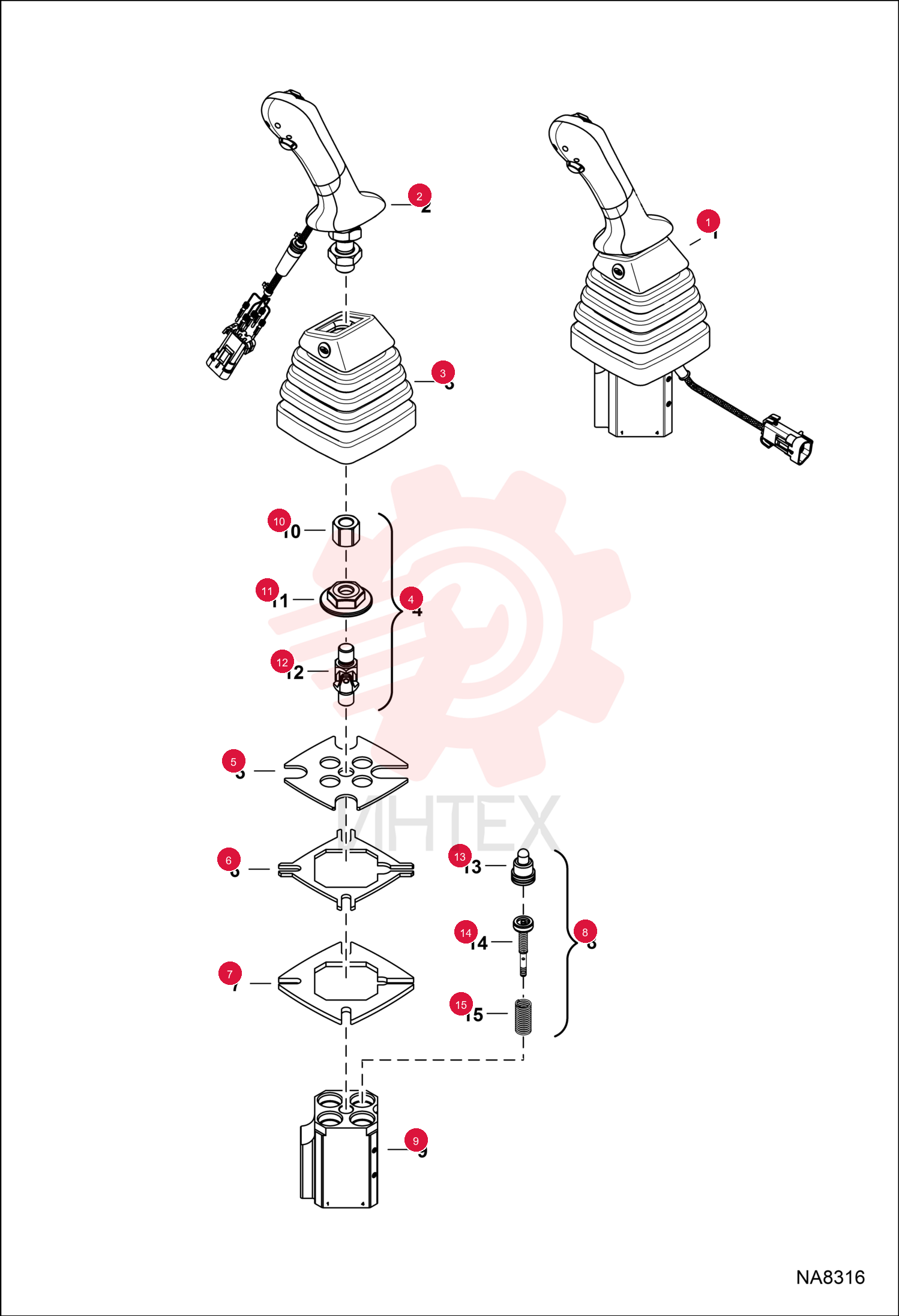

JOYSTICK, LH ASSY 7024440

JOYSTICK, LH ASSY 7024440

JOYSTICK, LH ASSY 7024440

1 7024440

  • 7024440 - JOYSTICK
  • LH ASSY
  • Ref. 2-15

2 7031601

  • 7031601 - HANDLE
  • JOYSTICK

3 6692548

  • 6692548 - BOOT

4 6679956

  • 6679956 - JOINT KIT
  • Ref. 10-12

5 7028624

  • 7028624 - KIT PLUNGER
  • Ref. 13-15

6 7031600

  • 7031600 - HOUSING
  • JOYSTICK
  • W/Ref. 5-7
