Главная
/
Бренды
/
Bobcat
/
E32i
/

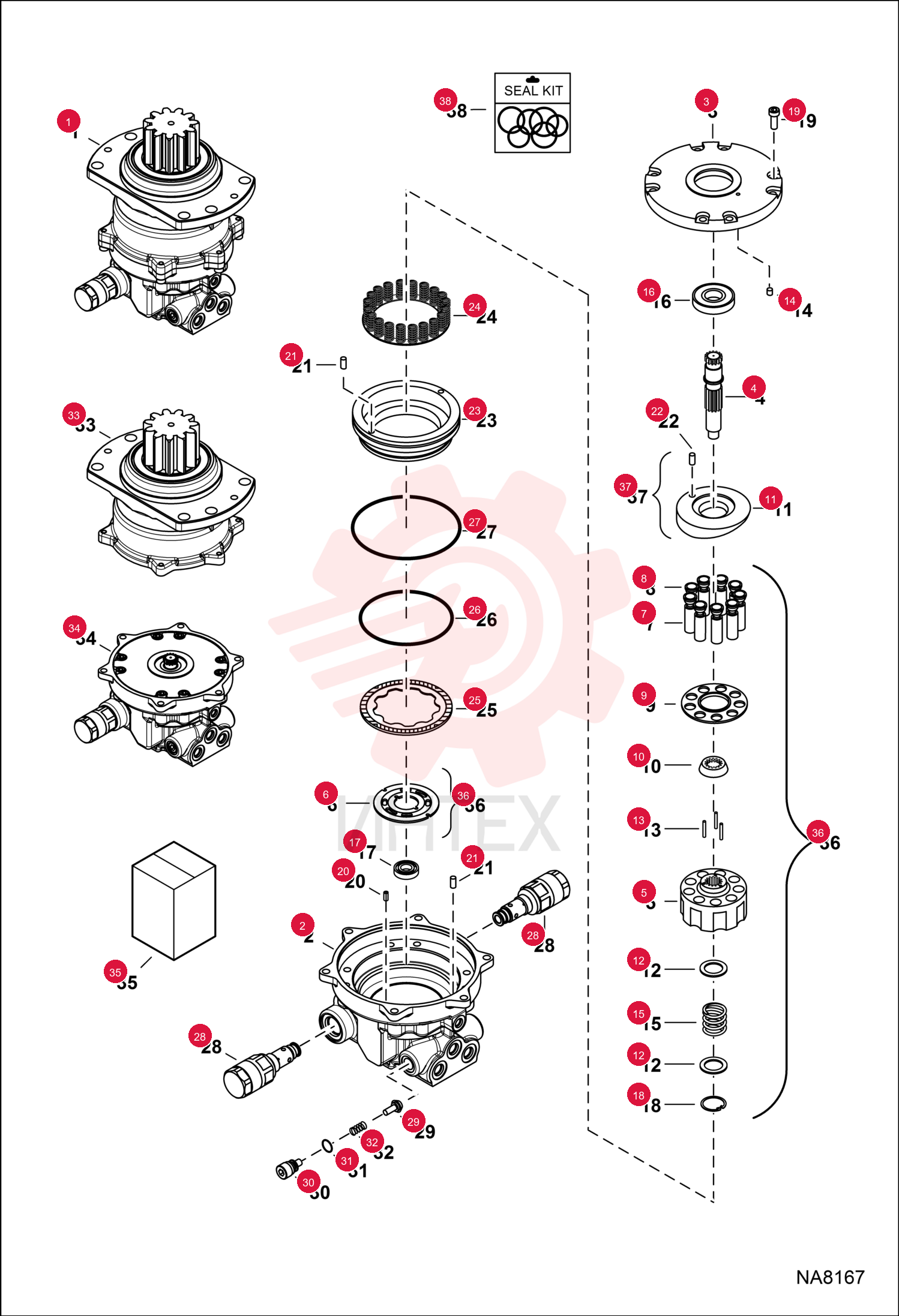

MOTOR, SLEW 7025615 (1)

MOTOR, SLEW 7025615 (1)

MOTOR, SLEW 7025615 (1)

1 7025615

  • 7025615 - MOTOR
  • SLEW
  • Ref. 2-34

2 7010801

  • 7010801 - SCREEN
  • DEBRIS

3 7010802

  • 7010802 - BEARING
  • MOTOR SLEW

4 7010803

  • 7010803 - BEARING
  • MOTOR SLEW

5 7010804

  • 7010804 - RING
  • SNAP

6 7010805

  • 7010805 - SCREW

7 7010806

  • 7010806 - PIN
  • SPRING

8 7010807

  • 7010807 - PIN

9 7010808

  • 7010808 - O-RING

10 7010809

  • 7010809 - O-RING

11 7010811

  • 7010811 - O-RING

12 7030238

  • 7030238 - KIT
  • HOUSING MOTOR
  • Ref. 2
  • 17
  • 20
  • & 29-32

13 7010826

  • 7010826 - GROUP
  • ROTATING
  • Ref. 5-10
  • 12
  • 13
  • 15
  • & 18

14 7010827

  • 7010827 - KIT
  • SWASHPLATE
  • Ref. 11 & 22

15 7010828

  • 7010828 - KIT
  • SEAL
  • Ref. 26
  • 27
  • & 32
