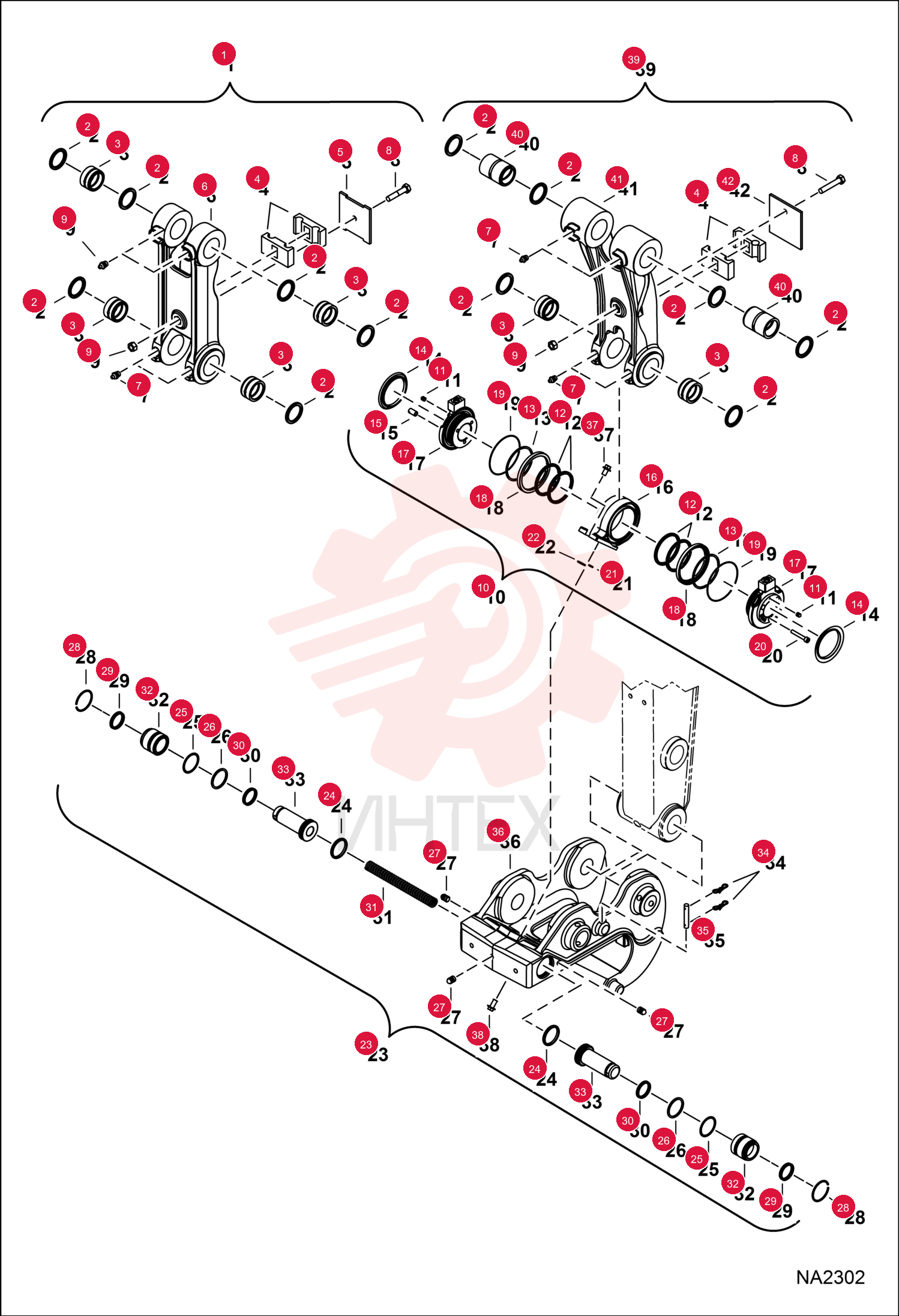

LINK, HYD X-CHANGE 7154148 (1)

LINK, HYD X-CHANGE 7154148 (1)

LINK, HYD X-CHANGE 7154148 (1)

1 7154148

  • 7154148 - LINK
  • HYD X-CHANGE
  • Ref. 2-9 - Use W/O extendable arm

2 6652915

  • 6652915 - SEAL
  • OIL

3 6803309

  • 6803309 - BUSHING
  • PRESS FIT
  • for Ref. 1

4 6803309

  • 6803309 - BUSHING
  • PRESS FIT
  • for Ref. 39

5 7115813

  • 7115813 - BLOCK RUBBER

6 7226711

  • 7226711 - COVER
  • HOSE
  • Also Order Ref. 8 (59CM1060 screw) - Was 7115814

7 10H25

  • 10H25 - FTG GREASE STRAIGHT

8 59CM1060

  • 59CM1060 - SCREW
  • Use W/ 7194411 link assy - Was 1CM1055

9 59CM860

  • 59CM860 - SCREW
  • HEX FLANGE
  • Use W/ 7236895 link assy

10 4DM10

  • 4DM10 - NUT HEX
  • Use W/ 7194411 link assy

11 4DM8

  • 4DM8 - NUT HEX
  • Use W/ 7236895 link assy

12 7115437

  • 7115437 - SWIVEL ASSEMBLY
  • Ref. 11-22

13 6686678

  • 6686678 - PLUG

14 6689035

  • 6689035 - SEAL

15 6689036

  • 6689036 - RING WEAR

16 6689622

  • 6689622 - SEAL DUST

17 6816599

  • 6816599 - NUT

18 7115434

  • 7115434 - BASE HYD

19 7115436

  • 7115436 - SWIVEL HYD
  • Also order Ref. 11

20 7135580

  • 7135580 - O-RING

21 7135631

  • 7135631 - SEAL DUST

22 3GM640

  • 3GM640 - SCREW

23 58K10

  • 58K10 - O RING 10

24 58K015

  • 58K015 - O-RING 10

25 7155425

  • 7155425 - X-CHANGE
  • HYD
  • Ref. 10
  • 24-33
  • & 36-38

26 6680402

  • 6680402 - SEAL

27 6680998

  • 6680998 - RING

28 6683233

  • 6683233 - O-RING

29 6686679

  • 6686679 - PLUG

30 6686682

  • 6686682 - RING

31 6688634

  • 6688634 - SEAL PIN

32 6690161

  • 6690161 - SEAL PIN

33 6815592

  • 6815592 - SPRING

34 7114212

  • 7114212 - HEAD

35 7126140

  • 7126140 - PISTON
  • PIN
  • W/retainer pin hole

36 7221582

  • 7221582 - PISTON
  • PIN
  • W/O retainer pin hole

37 7130431

  • 7130431 - CLIP
  • if equipped

38 7132119

  • 7132119 - PIN
  • if equipped

39 29CM1020

  • 29CM1020 - SCREW HEX 10MMX20MM

40 29CM1030

  • 29CM1030 - SCREW FLGD HEX CAP

41 7194411

  • 7194411 - LINK
  • HYD X-CHANGE
  • Ref. 2-4
  • 7-9
  • & 40-42 - Use W/extendable arm

42 7196810

  • 7196810 - BUSHING
  • WEAR

43 7197895

  • 7197895 - PLATE
  • Use W/ 7194411 link assy

44 7236897

  • 7236897 - PLATE
  • COVER
  • Use w/ 7236895 link assy
