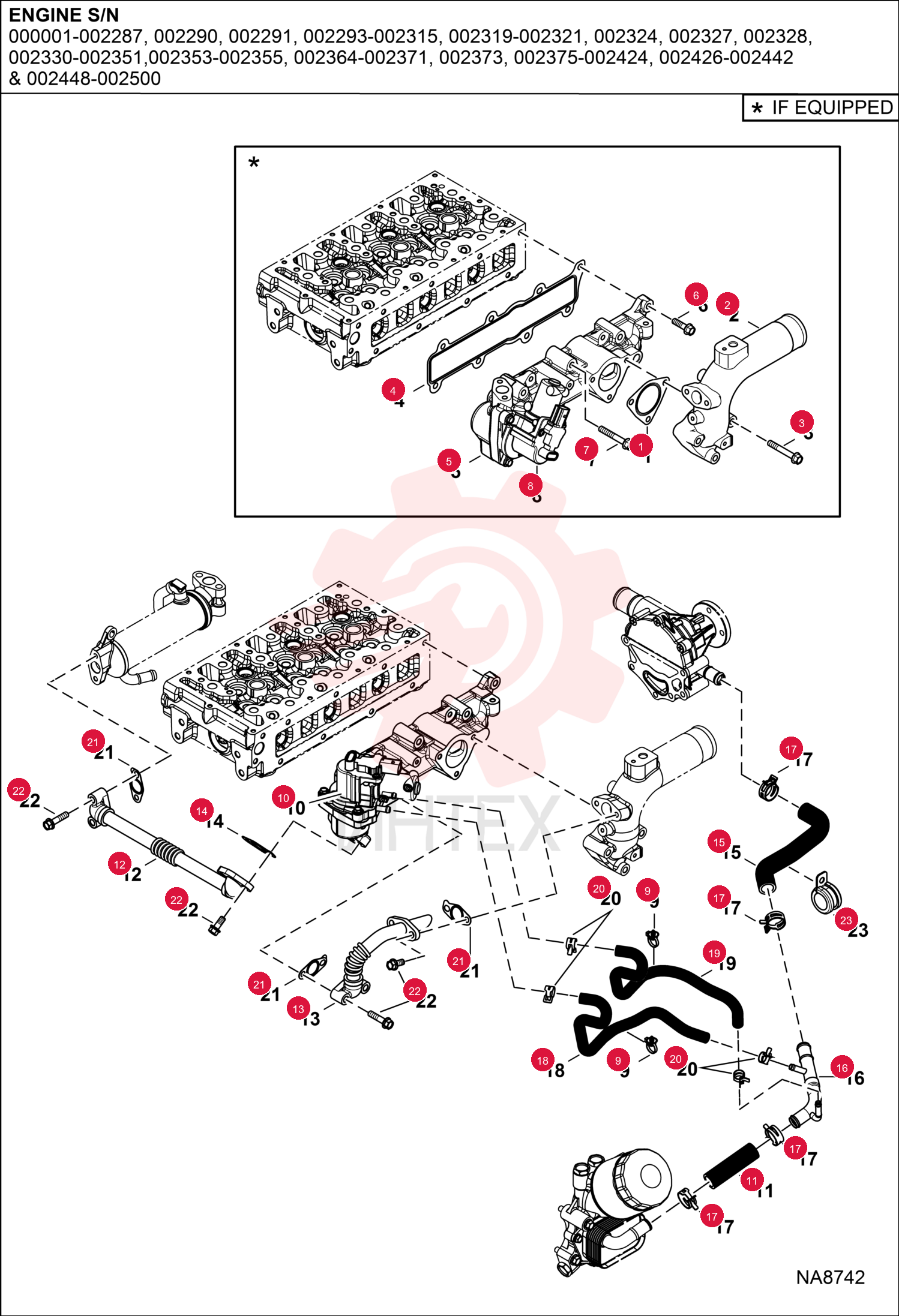

GASKET 7249379 (1)

GASKET 7249379 (1)

GASKET 7249379 (1)

1 7249379

  • 7249379 - GASKET

2 7249378

  • 7249378 - PIPE
  • INTAKE

3 7030275

  • 7030275 - BOLT

4 7249377

  • 7249377 - GASKET
  • INTAKE MANIFOLD

5 7030265

  • 7030265 - BOLT

6 7030275

  • 7030275 - BOLT

7 7311553

  • 7311553 - MANIFOLD INTAKE

8 7342828

  • 7342828 - HOSE WATER

9 7329719

  • 7329719 - PIPE EGR

10 7329720

  • 7329720 - PIPE EGR

11 7256778

  • 7256778 - GASKET

12 7342829

  • 7342829 - HOSE WATER

13 7342830

  • 7342830 - PIPE WATER

14 7030305

  • 7030305 - CLAMP
  • HOSE

15 7342836

  • 7342836 - HOSE AIR
  • Was 7365710

16 7342837

  • 7342837 - HOSE AIR
  • Was 7365711

17 7342838

  • 7342838 - CLAMP HOSE

18 7030331

  • 7030331 - GASKET

19 7030268

  • 7030268 - BOLT

20 7030314

  • 7030314 - CLIP
  • HOSE
