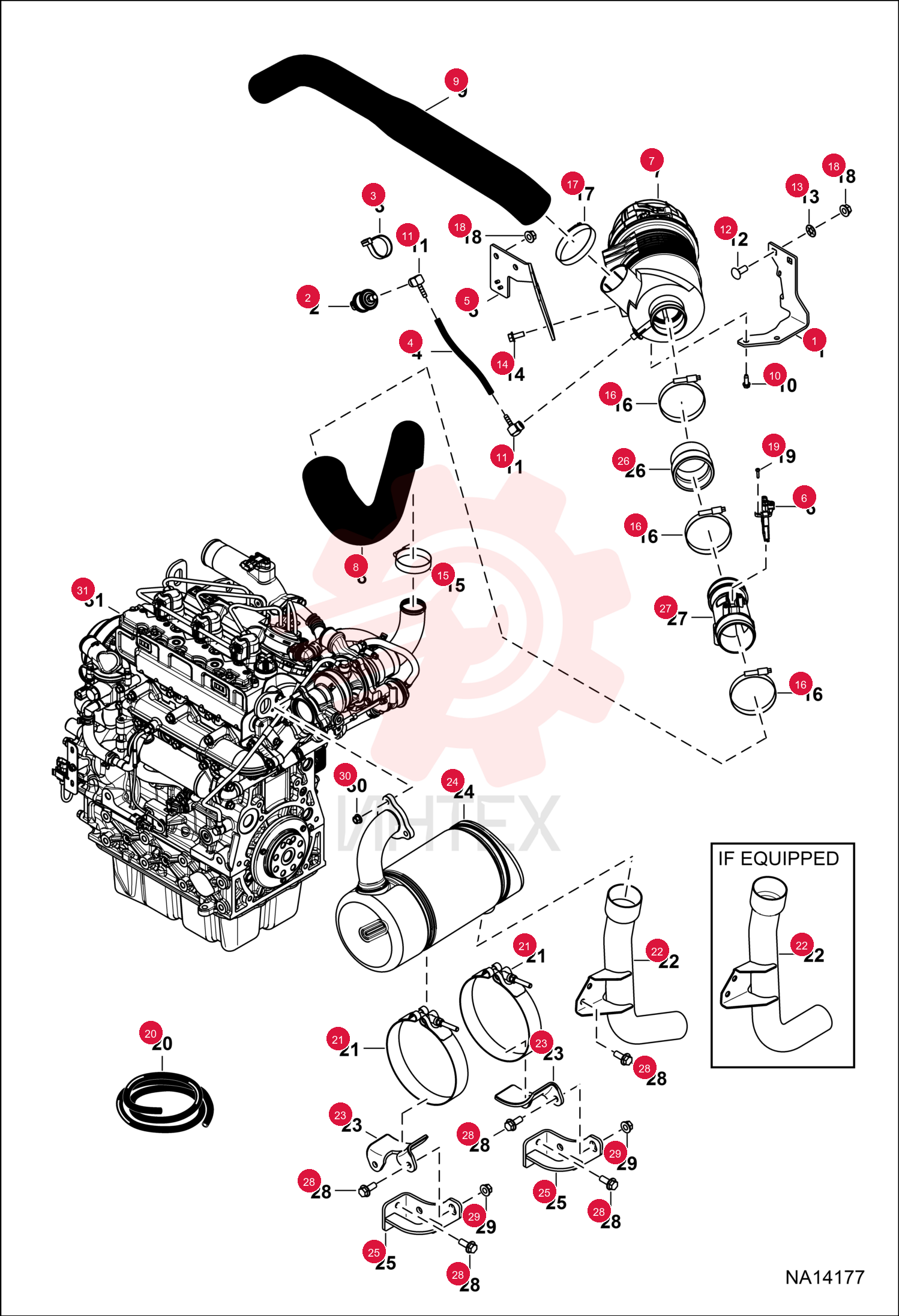

MOUNT ATTACH 7271359

MOUNT ATTACH 7271359

MOUNT ATTACH 7271359

1 7271359

  • 7271359 - MOUNT ATTACH

2 6665371

  • 6665371 - SWITCH
  • VACUUM

3 6678669

  • 6678669 - STRAP T250 H/D

4 7280147

  • 7280147 - MOUNT ATTACH

5 7230439

  • 7230439 - SENSOR
  • FLOW AIR MASS

6 7280145

  • 7280145 - HOSE
  • AIR

7 7280146

  • 7280146 - HOSE
  • AIR

8 6702642

  • 6702642 - SCREW WSHRD PLASTITE

9 7244824

  • 7244824 - FITTING

10 28CM1025

  • 28CM1025 - BOLT CARRIAGE 8.8

11 6674264

  • 6674264 - RETAINER BOLT

12 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

13 42HC250

  • 42HC250 - CLAMP

14 42HC325

  • 42HC325 - CLAMP

15 42HL325

  • 42HL325 - CLAMP HOSE TYPE MX

16 43DM10

  • 43DM10 - NUT FLANGED HEX

17 7231674

  • 7231674 - SCREW
  • PLASTIC

18 6557720

  • 6557720 - HOSE BULK
  • sold per foot

19 7301024

  • 7301024 - CLAMP PIPE

20 7223996

  • 7223996 - TUBE
  • EXHAUST

21 7294861

  • 7294861 - TUBE EXHAUST
  • if equipped

22 7229439

  • 7229439 - MOUNT
  • CLAMP

23 7319025

  • 7319025 - DOC (DIESEL OXIDATION CATALYST)
  • Was 7232432

24 7235439

  • 7235439 - BRACKET
  • ASSY

25 7235544

  • 7235544 - HOSE
  • AIR FORMED

26 7234970

  • 7234970 - TUBE
  • MAF

27 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

28 47DM10

  • 47DM10 - NUT HEX FLG LOCK C10

29 7030370

  • 7030370 - NUT
