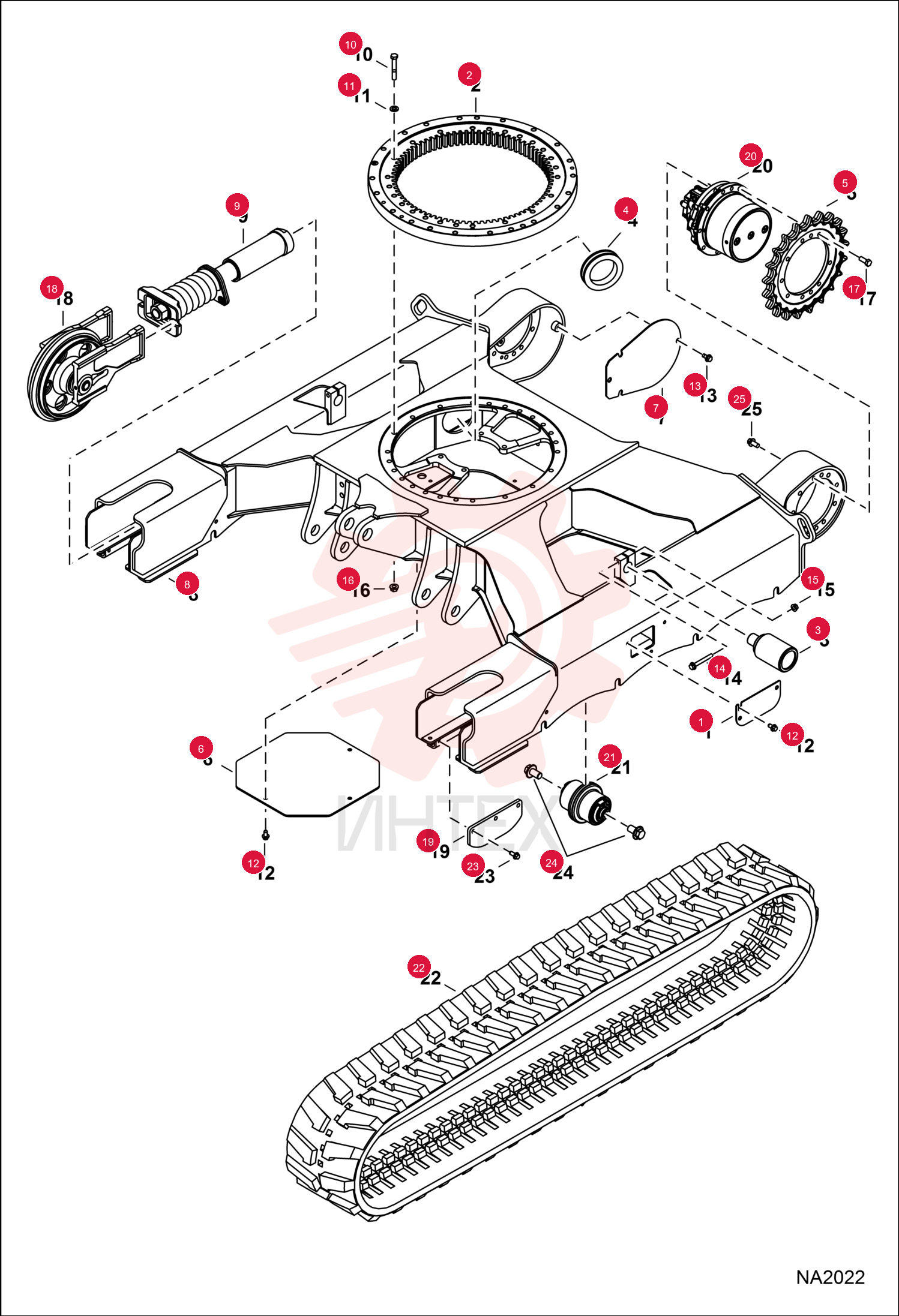

COVER 6596723

COVER 6596723

COVER 6596723

1 6596723

  • 6596723 - COVER

2 6692964

  • 6692964 - RING
  • SLEW

3 7020867

  • 7020867 - ROLLER
  • TRACK

4 7127210

  • 7127210 - GROMMET

5 7199006

  • 7199006 - SPROCKET
  • MACHINED

6 7328146

  • 7328146 - COVER ACCESS
  • Was 7142236

7 7142237

  • 7142237 - COVER
  • MOTOR

8 7185033

  • 7185033 - UNDERCARRIAGE

9 7161099

  • 7161099 - BOLT

10 18EM1224

  • 18EM1224 - WASHER HARDENED PLN

11 26GM10020

  • 26GM10020 - SCREW HEX THRDRLG

12 29CM1020

  • 29CM1020 - SCREW HEX 10MMX20MM

13 29CM1080

  • 29CM1080 - SCREW

14 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

15 7334195

  • 7334195 - NUT HEX
  • Was 51DM12

16 55CM1230

  • 55CM1230 - SCREW HEX W/T 10.9

17 6596396

  • 6596396 - PLATE
  • guide - steel track

18 26GM10025

  • 26GM10025 - SCREW HEX THRDRLG

19 7011925

  • 7011925 - BOLT

20 7162236

  • 7162236 - SCREW
