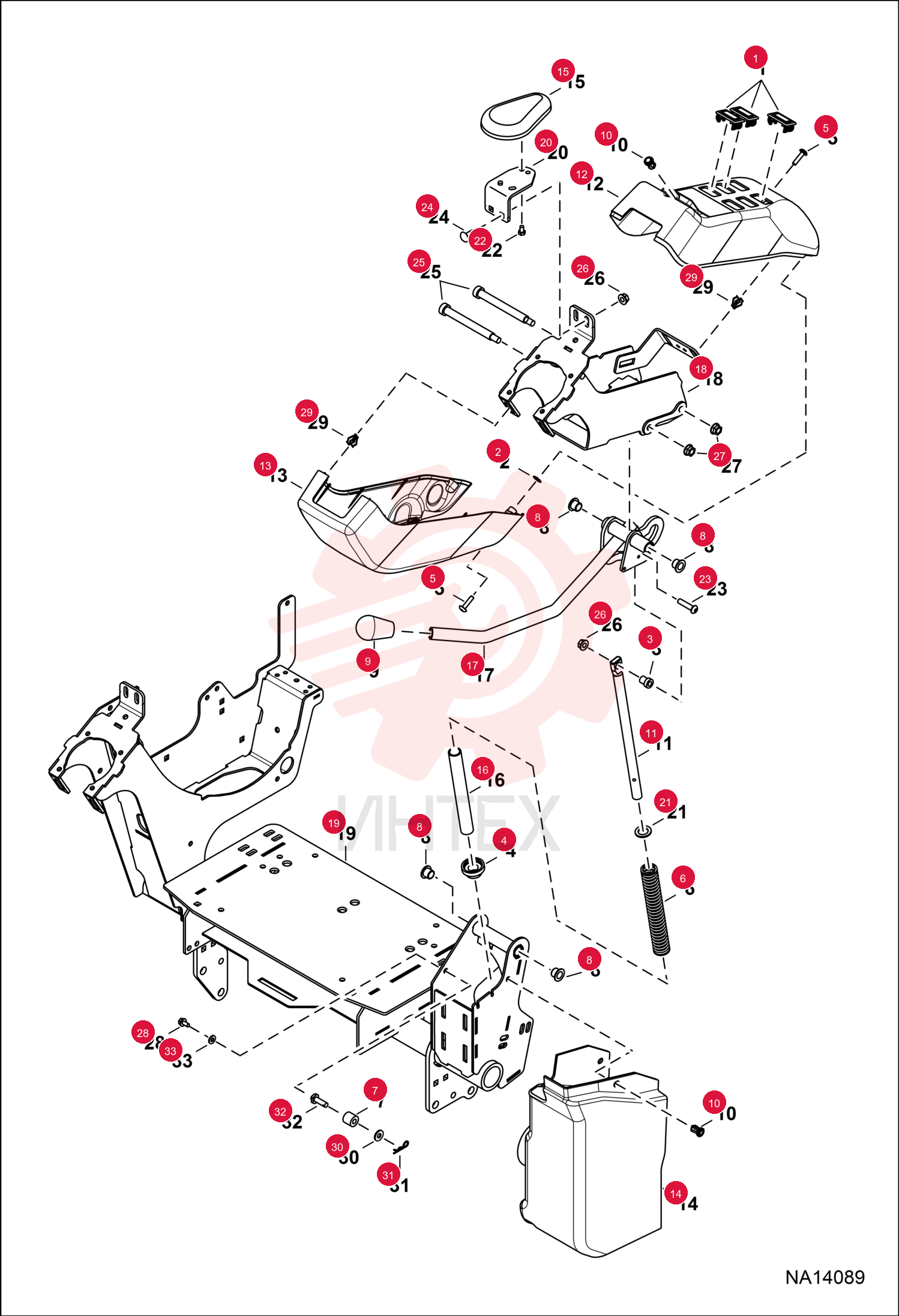

PLUG ROCKER SW 6665314 (5)

PLUG ROCKER SW 6665314 (5)

PLUG ROCKER SW 6665314 (5)

1 6665314

  • 6665314 - PLUG ROCKER SW

2 6675212

  • 6675212 - RETAINER BOLT

3 6808749

  • 6808749 - BUSHING

4 6810456

  • 6810456 - BUSHING

5 6816193

  • 6816193 - SCREW

6 7003497

  • 7003497 - SPRING
  • COMPRESSION

7 7272959

  • 7272959 - BUSHING
  • NYLON

8 7003499

  • 7003499 - BUSHING

9 7154041

  • 7154041 - KNOB

10 7160383

  • 7160383 - RIVET
  • BIRD CAGE

11 7165097

  • 7165097 - SHAFT

12 7165562

  • 7165562 - COVER
  • LH

13 7165563

  • 7165563 - COVER
  • LH

14 7165564

  • 7165564 - COVER
  • LH

15 7169719

  • 7169719 - SUPPORT

16 7171264

  • 7171264 - SPACER
  • TUBE

17 7199664

  • 7199664 - HANDLE
  • OPERATING

18 7338524

  • 7338524 - CONSOLE W/A
  • Was 7218095

19 7271050

  • 7271050 - FRAME OPERATOR W/A

20 7356250

  • 7356250 - MOUNT ARMREST
  • Was 7227780

21 15EM160

  • 15EM160 - WASHER

22 4CM612

  • 4CM612 - BOLT
  • Was 1CM612

23 27CM835

  • 27CM835 - SCREW

24 28CM820

  • 28CM820 - BOLT CARRIAGE 8.8

25 38C868

  • 38C868 - SCREW

26 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

27 53D6

  • 53D6 - NUT

28 29CM612

  • 29CM612 - BOLT
  • FLANGED

29 7165333

  • 7165333 - CLIP

30 25E15

  • 25E15 - WASHER FLAT PLAIN

31 6513495

  • 6513495 - PIN 5

32 7275041

  • 7275041 - PIN

33 25E11

  • 25E11 - WASHER
