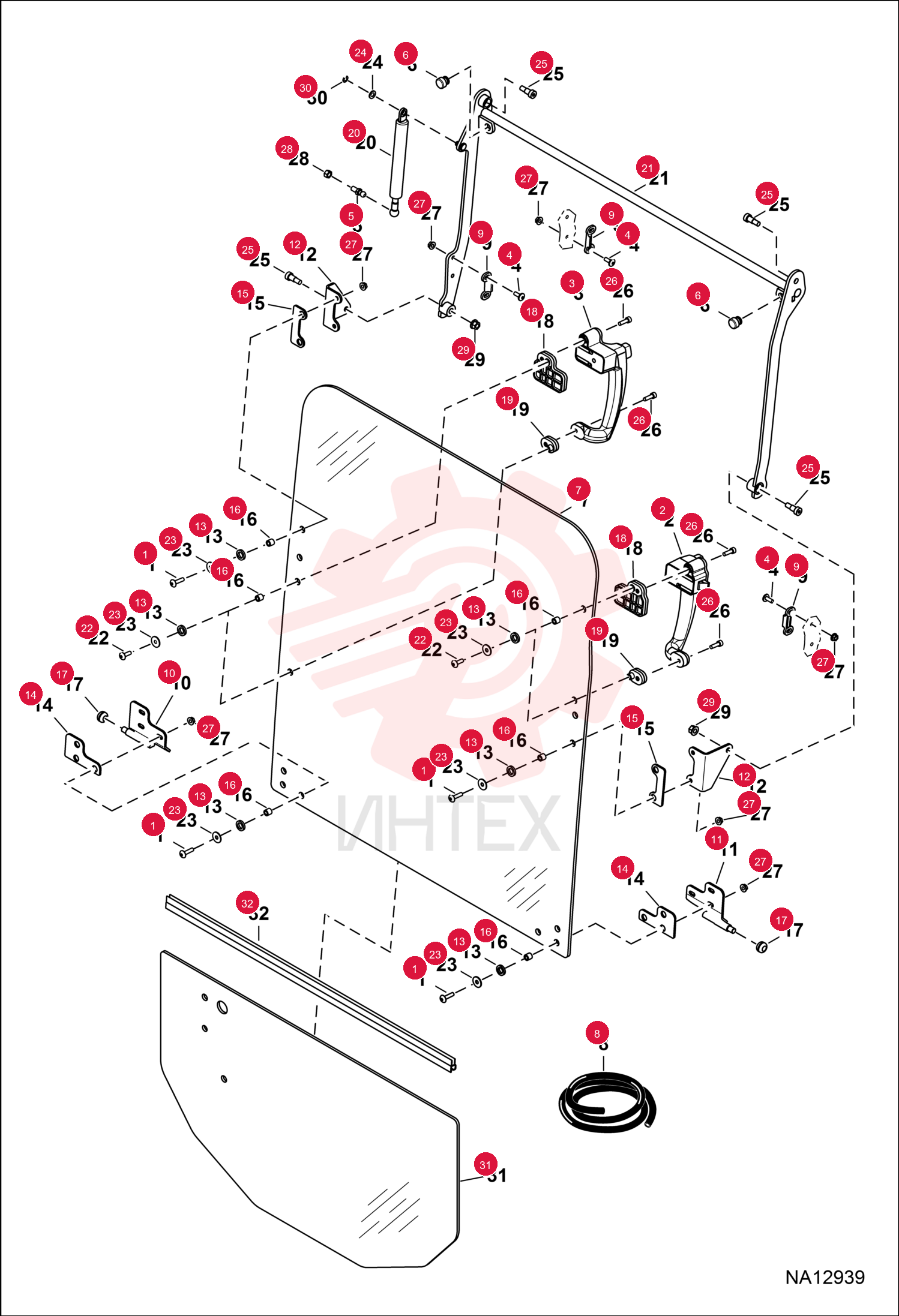

SCREW 6816193

SCREW 6816193

SCREW 6816193

1 6816193

  • 6816193 - SCREW

2 7023166

  • 7023166 - LATCH
  • WINDOW CAB

3 7023167

  • 7023167 - LATCH
  • WINDOW CAB

4 7122310

  • 7122310 - TORX BOLT

5 7170322

  • 7170322 - STUD
  • BALL JOINT

6 7226984

  • 7226984 - BUMPER
  • RUBBER

7 7250149

  • 7250149 - WINDOW FRONT

8 7269486

  • 7269486 - SEAL BULB

9 7210303

  • 7210303 - STRIKER
  • LATCH WINDOW

10 7250154

  • 7250154 - MOUNT ROLLER

11 7250156

  • 7250156 - MOUNT ROLLER

12 7269478

  • 7269478 - MOUNT WINDOW

13 7210811

  • 7210811 - GASKET
  • WASHER

14 7269484

  • 7269484 - GASKET ROLLER

15 7269483

  • 7269483 - GASKET MOUNT

16 7210929

  • 7210929 - SPACER
  • BRACKET

17 7212726

  • 7212726 - ROLLER
  • WINDOW

18 7213043

  • 7213043 - SPACER
  • LATCH UPPER

19 7213044

  • 7213044 - SPACER
  • LATCH LOWER

20 7355823

  • 7355823 - SPRING GAS
  • Was 7269479

21 7250151

  • 7250151 - LINKAGE WINDOW CAB

22 7215172

  • 7215172 - SCREW
  • MACHINE

23 7215175

  • 7215175 - WASHER
  • FLAT

24 15EM80

  • 15EM80 - WASHER

25 38C608

  • 38C608 - SCREW

26 3GM620

  • 3GM620 - SCREW
  • MACHINE

27 45DM6

  • 45DM6 - NUT 10

28 53DM8

  • 53DM8 - NUT HX THDLK PREAPPL

29 83D5

  • 83D5 - LKNUT HEX FLG GR8

30 9JM60

  • 9JM60 - PIN
  • RETAINER

31 7250150

  • 7250150 - WINDOW LOWER

32 7269486

  • 7269486 - SEAL BULB
