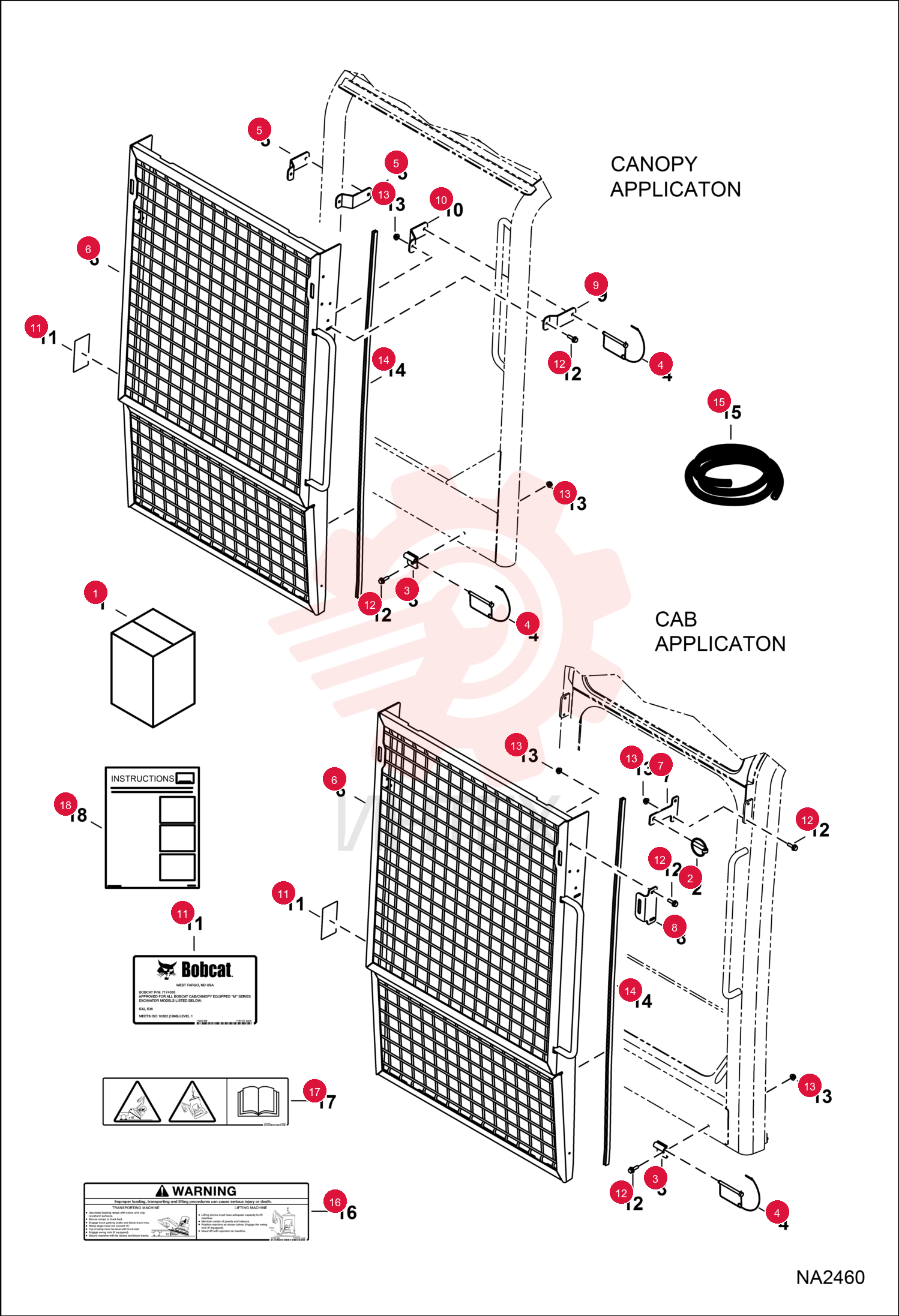

PIN, LOCK 6668928 (4)

PIN, LOCK 6668928 (4)

PIN, LOCK 6668928 (4)

1 6668928

  • 6668928 - PIN
  • LOCK

2 6808924

  • 6808924 - HINGE

3 6808926

  • 6808926 - PIN

4 6818017

  • 6818017 - BRACKET

5 7174037

  • 7174037 - PLATE

6 7174038

  • 7174038 - BRACKET

7 7181010

  • 7181010 - BRACKET

8 7181011

  • 7181011 - BRACKET

9 7355636

  • 7355636 - DECAL SPECIAL APPLICATIONS
  • Was 7181121

10 29CM620

  • 29CM620 - SCREW FLGD HEX CAP

11 51DM6

  • 51DM6 - NUT HX THDLK PREAPPL

12 6682492

  • 6682492 - EDGE TRIM BULK/FT
  • bulk - sold per foot

13 7178178

  • 7178178 - DECAL
  • WARNING

14 7178215

  • 7178215 - DECAL
  • WARNING

15 6989510ENUS

  • 6989510ENUS - INSTRUCTIONS
  • Was 6989510
