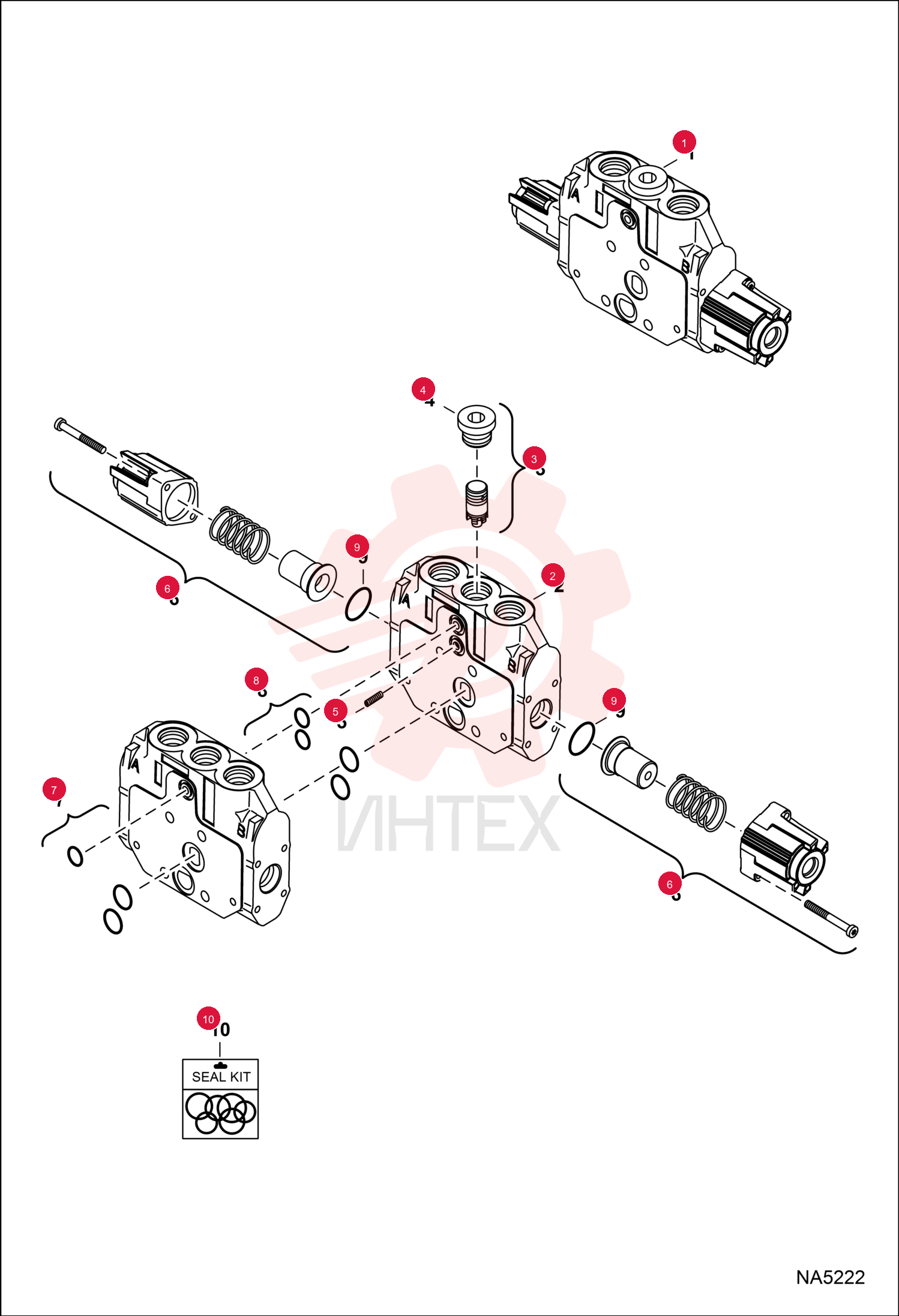

SECTION, VALVE 7016130 (2)

SECTION, VALVE 7016130 (2)

SECTION, VALVE 7016130 (2)

1 7016130

  • 7016130 - SECTION
  • VALVE
  • Ref. 2-7
  • 9 & 10

2 6677690

  • 6677690 - KIT
  • COMPENSATOR

3 6685248

  • 6685248 - PLUG

4 6677695

  • 6677695 - SCREW

5 6677699

  • 6677699 - ACTUATOR ASSEMBLY
  • includes both sides

6 6677467

  • 6677467 - KIT
  • SEAL

7 6677472

  • 6677472 - KIT
  • SEAL
  • not included with right travel section - Also Order if needed

8 6677470

  • 6677470 - SEAL KIT
  • Ref. 7 & 9
