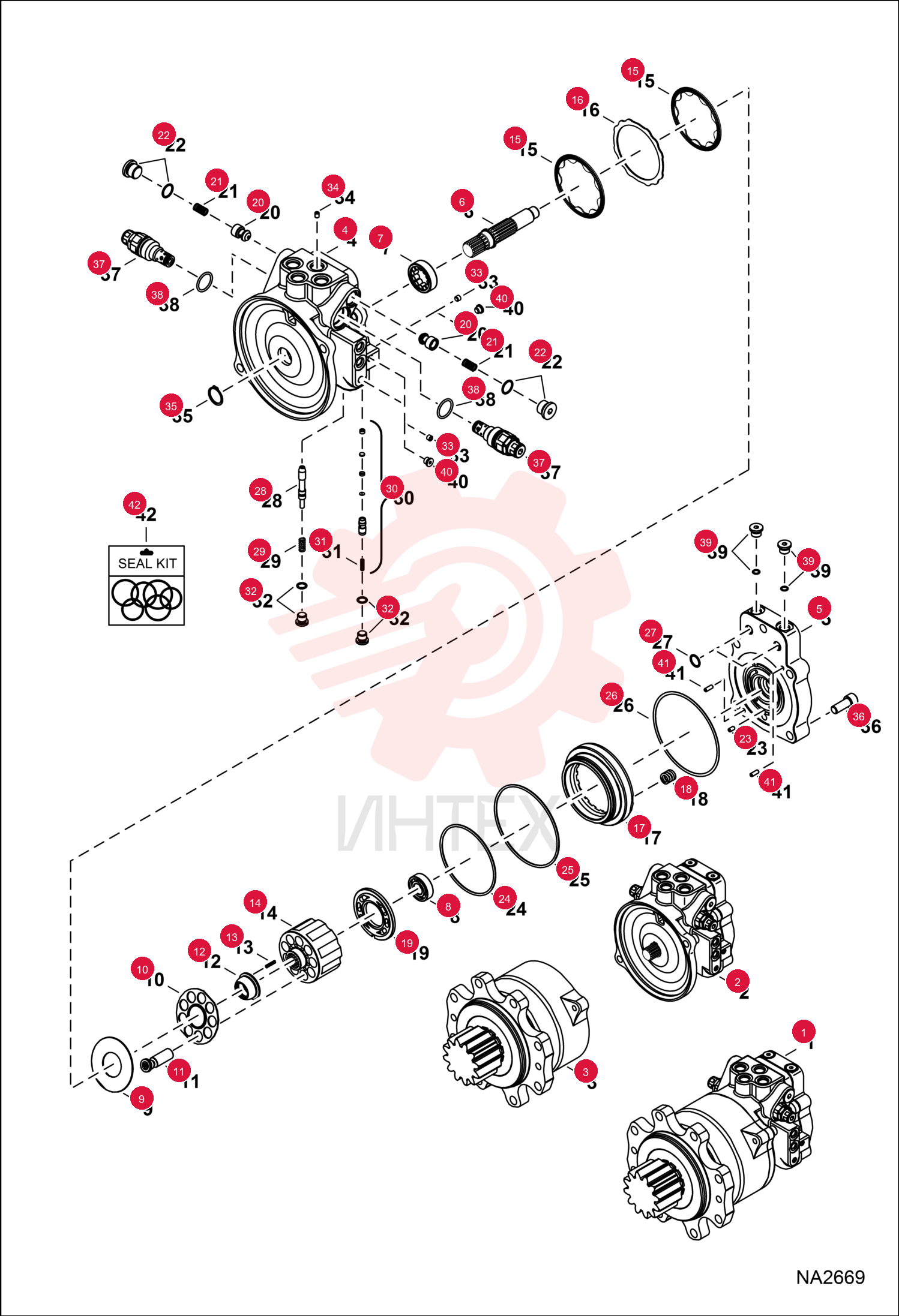

MOTOR, SLEW 7020242 (4)

MOTOR, SLEW 7020242 (4)

MOTOR, SLEW 7020242 (4)

1 7020242

  • 7020242 - MOTOR
  • SLEW
  • Ref. 2-41

2 7022119

  • 7022119 - HOUSING
  • VALVE

3 7019216

  • 7019216 - SHAFT
  • DRIVE

4 7019217

  • 7019217 - BEARING
  • ROLLER

5 7019218

  • 7019218 - BEARING
  • BALL

6 7019219

  • 7019219 - PLATE
  • SHOE

7 7019220

  • 7019220 - PLATE
  • RETAINER

8 7019214

  • 7019214 - PISTON
  • ASSY

9 7019221

  • 7019221 - BUSHING

10 7019222

  • 7019222 - SPRING

11 7019223

  • 7019223 - BLOCK
  • CYL

12 7019224

  • 7019224 - PLATE
  • FRICTION

13 7019225

  • 7019225 - PLATE

14 7019226

  • 7019226 - PISTON
  • BRAKE

15 7019227

  • 7019227 - SPRING

16 7019228

  • 7019228 - PLATE
  • VALVE

17 7019229

  • 7019229 - PLUNGER

18 7019230

  • 7019230 - SPRING
  • CHECK VALVE

19 7019231

  • 7019231 - PLUG

20 7019232

  • 7019232 - PIN
  • SPRING

21 7019233

  • 7019233 - O-RING

22 7019234

  • 7019234 - O-RING

23 7019235

  • 7019235 - O-RING

24 7009881

  • 7009881 - ORING
  • if equipped

25 7019237

  • 7019237 - SPOOL
  • VALVE

26 7019238

  • 7019238 - SPRING

27 7019239

  • 7019239 - PLUNGER

28 7019240

  • 7019240 - SPRING

29 7019241

  • 7019241 - PLUG

30 7009897

  • 7009897 - PLUG
  • if equipped

31 7019243

  • 7019243 - ORIFICE

32 7019244

  • 7019244 - RING
  • SNAP

33 7019245

  • 7019245 - BOLT

34 7019246

  • 7019246 - VALVE
  • RELIEF

35 7019242

  • 7019242 - PLUG

36 7022120

  • 7022120 - PLUG

37 7022121

  • 7022121 - PIN
  • STRAIGHT

38 7019213

  • 7019213 - KIT
  • SEAL
  • Ref. 24-27 & 38 on this page and Ref. 2 & 9 on NA2723
