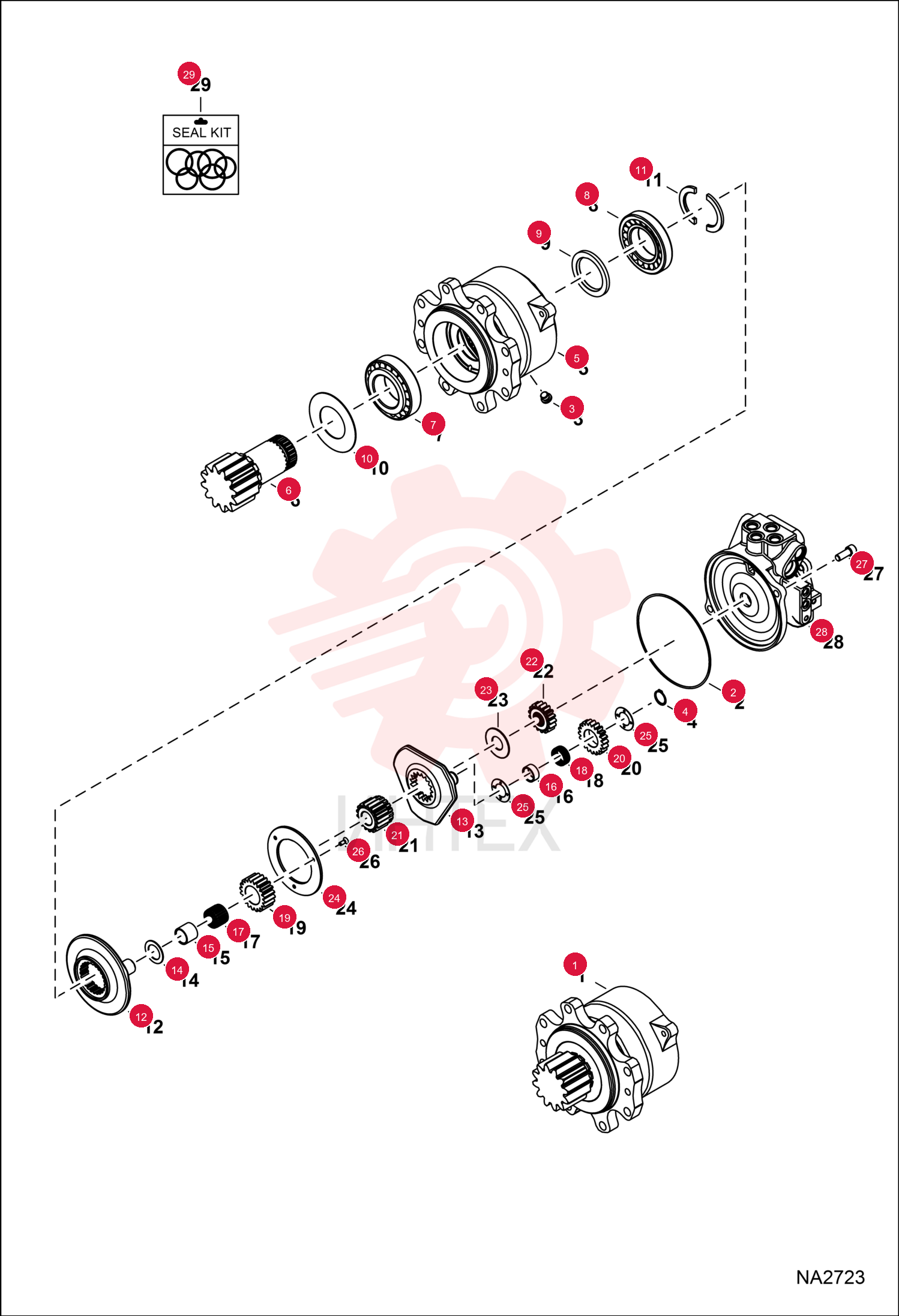

O-RING 7019236 (1)

O-RING 7019236 (1)

O-RING 7019236 (1)

1 7019236

  • 7019236 - O-RING

2 7019242

  • 7019242 - PLUG

3 7019244

  • 7019244 - RING
  • SNAP

4 7019295

  • 7019295 - SHAFT
  • MOTOR

5 7019248

  • 7019248 - BEARING
  • TAPERED ROLLER

6 7019249

  • 7019249 - BEARING
  • TAPERED ROLLER

7 7019250

  • 7019250 - SEAL
  • OIL

8 7019251

  • 7019251 - COVER
  • BEARING

9 7019252

  • 7019252 - COLLAR
  • HALF

10 7019253

  • 7019253 - CARRIER
  • MOTOR

11 7019254

  • 7019254 - CARRIER
  • MOTOR

12 7019255

  • 7019255 - WASHER
  • THRUST

13 7019256

  • 7019256 - RING
  • INNER

14 7019257

  • 7019257 - RING
  • INNER

15 7019258

  • 7019258 - BEARING
  • NEEDLE

16 7019259

  • 7019259 - BEARING
  • NEEDLE

17 7019260

  • 7019260 - GEAR
  • MOTOR

18 7019261

  • 7019261 - GEAR
  • MOTOR

19 7019262

  • 7019262 - GEAR
  • MOTOR

20 7019263

  • 7019263 - GEAR
  • MOTOR

21 7019264

  • 7019264 - WASHER
  • THRUST

22 7019265

  • 7019265 - PLATE

23 7019266

  • 7019266 - WASHER
  • THRUST

24 7019289

  • 7019289 - BOLT

25 7019245

  • 7019245 - BOLT

26 7019213

  • 7019213 - KIT
  • SEAL
  • Ref. 2 & 9 on this page and Ref. 24-27 & 38 on NA2669
