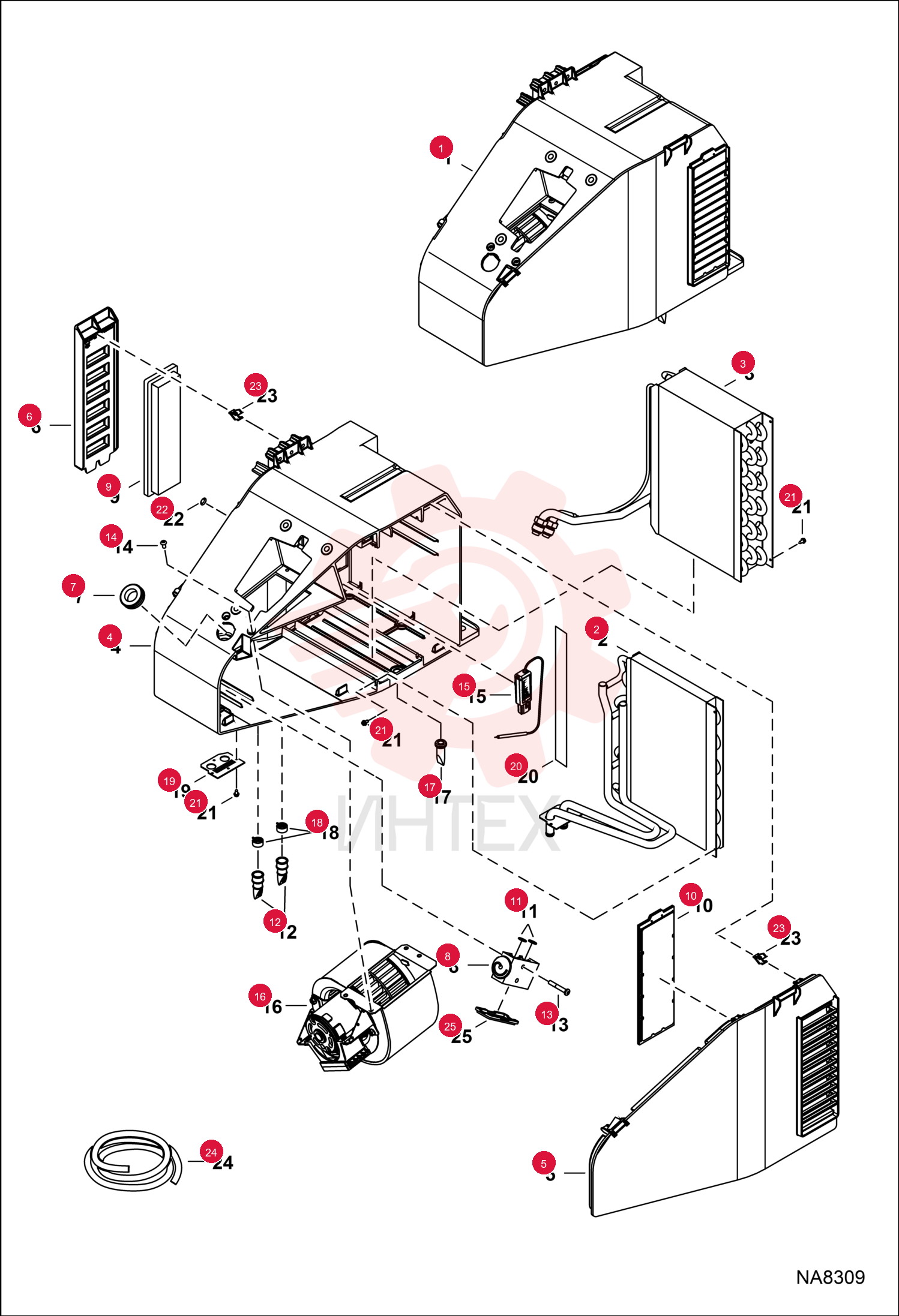

HVAC, CAB 7222776 (1)

HVAC, CAB 7222776 (1)

HVAC, CAB 7222776 (1)

1 7222776

  • 7222776 - HVAC
  • CAB
  • Ref. 2-25

2 7222772

  • 7222772 - CORE
  • HEATER

3 7222773

  • 7222773 - CORE
  • EVAPORATOR

4 7222770

  • 7222770 - HOUSING
  • BASE

5 7222771

  • 7222771 - COVER
  • HVAC

6 7224878

  • 7224878 - COVER
  • FILTER PARTICULATE

7 7240761

  • 7240761 - HARNESS
  • HVAC
  • harness not shown - grommet included

8 6675534

  • 6675534 - BLOCK
  • VALVE A/C
  • Was 7193538

9 7176099

  • 7176099 - FILTER
  • AIR FRESH 10

10 7222791

  • 7222791 - FILTER
  • AIR RECIRCULATING

11 7240092

  • 7240092 - O-RING
  • Was 7009977

12 7193541

  • 7193541 - DRAIN
  • WATER SEAT

13 7192371

  • 7192371 - BOLT

14 7240759

  • 7240759 - SCREW
  • Was 7192287

15 7332632

  • 7332632 - THERMOSTAT ASSY
  • 1260 mm (49.6") lead

16 7031587

  • 7031587 - RESISTOR

17 7240095

  • 7240095 - BLOWER
  • HEATER-A/C

18 7018001

  • 7018001 - VALVE
  • DRAIN

19 7240094

  • 7240094 - CLAMP
  • HOSE

20 7240091

  • 7240091 - SEAL
  • FOAM

21 6677119

  • 6677119 - SCREW

22 7240097

  • 7240097 - RETAINER
  • HOLDER

23 7165333

  • 7165333 - CLIP

24 6676538

  • 6676538 - INSULATION TAPE FT
  • bulk - sold per foot

25 7193533

  • 7193533 - GROMMET
