Bobcat
/
E50
/

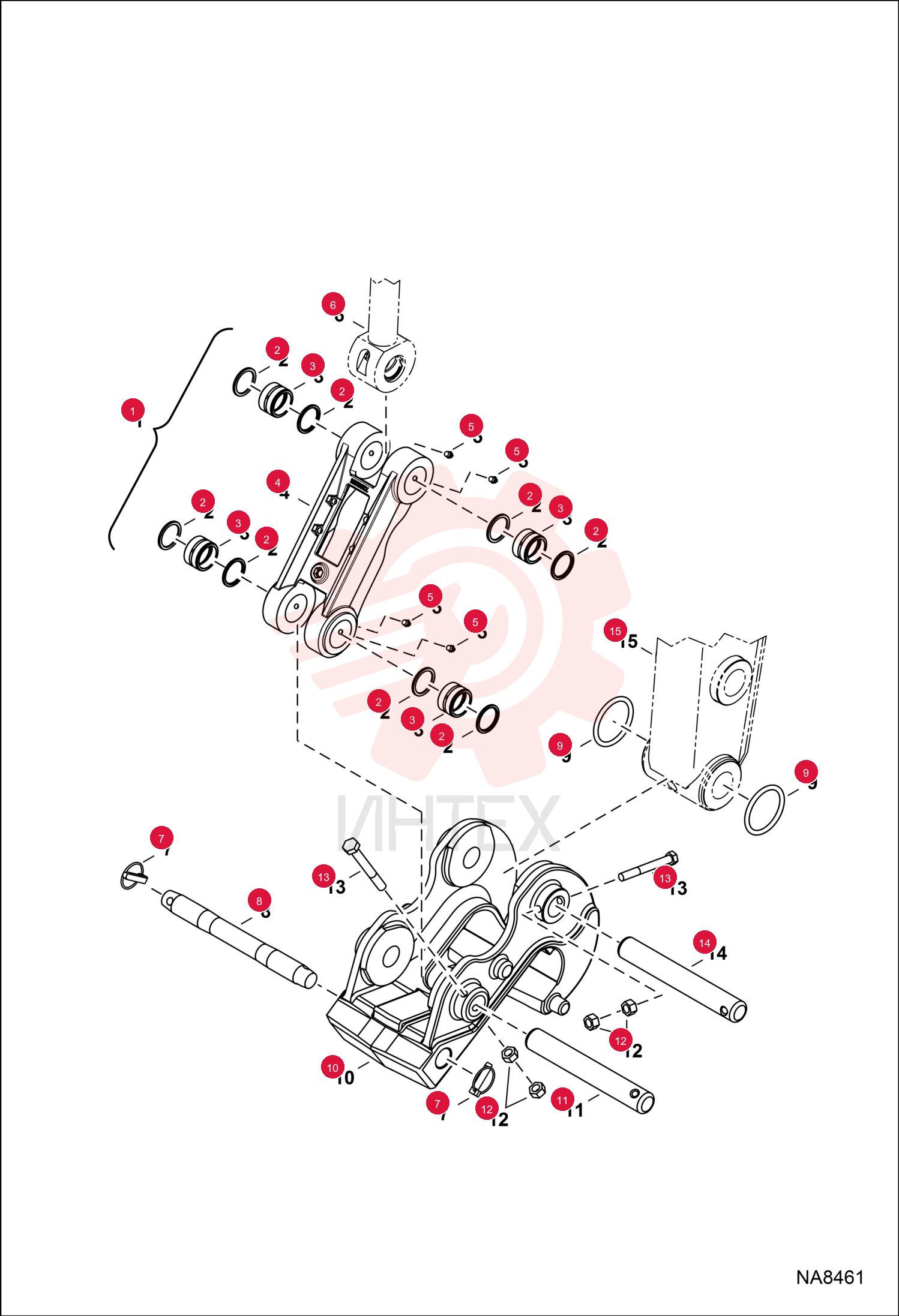

LINK ASSEMBLY 7236787

LINK ASSEMBLY 7236787

LINK ASSEMBLY 7236787

1 7236787

  • 7236787 - LINK ASSEMBLY
  • Ref. 2-5

2 6669287

  • 6669287 - SEAL

3 7173292

  • 7173292 - BUSHING
  • WEAR

4 10H25

  • 10H25 - FTG GREASE STRAIGHT

5 6560382

  • 6560382 - PIN
  • LOCK

6 7137214

  • 7137214 - PIN

7 7143561

  • 7143561 - O-RING
  • 3.23" (81
  • 9 mm) ID

8 7204274

  • 7204274 - X-CHANGE
  • PIN-ON

9 7143036

  • 7143036 - PIN
  • PIVOT

10 43DM10

  • 43DM10 - NUT FLANGED HEX

11 7CM12100

  • 7CM12100 - BOLT

12 7143036

  • 7143036 - PIN
  • PIVOT
  • 10.97" (278.7 mm) long

13 7166241

  • 7166241 - PIN
  • PIVOT
  • 17.2" (436 mm) long - see clamp attachment
