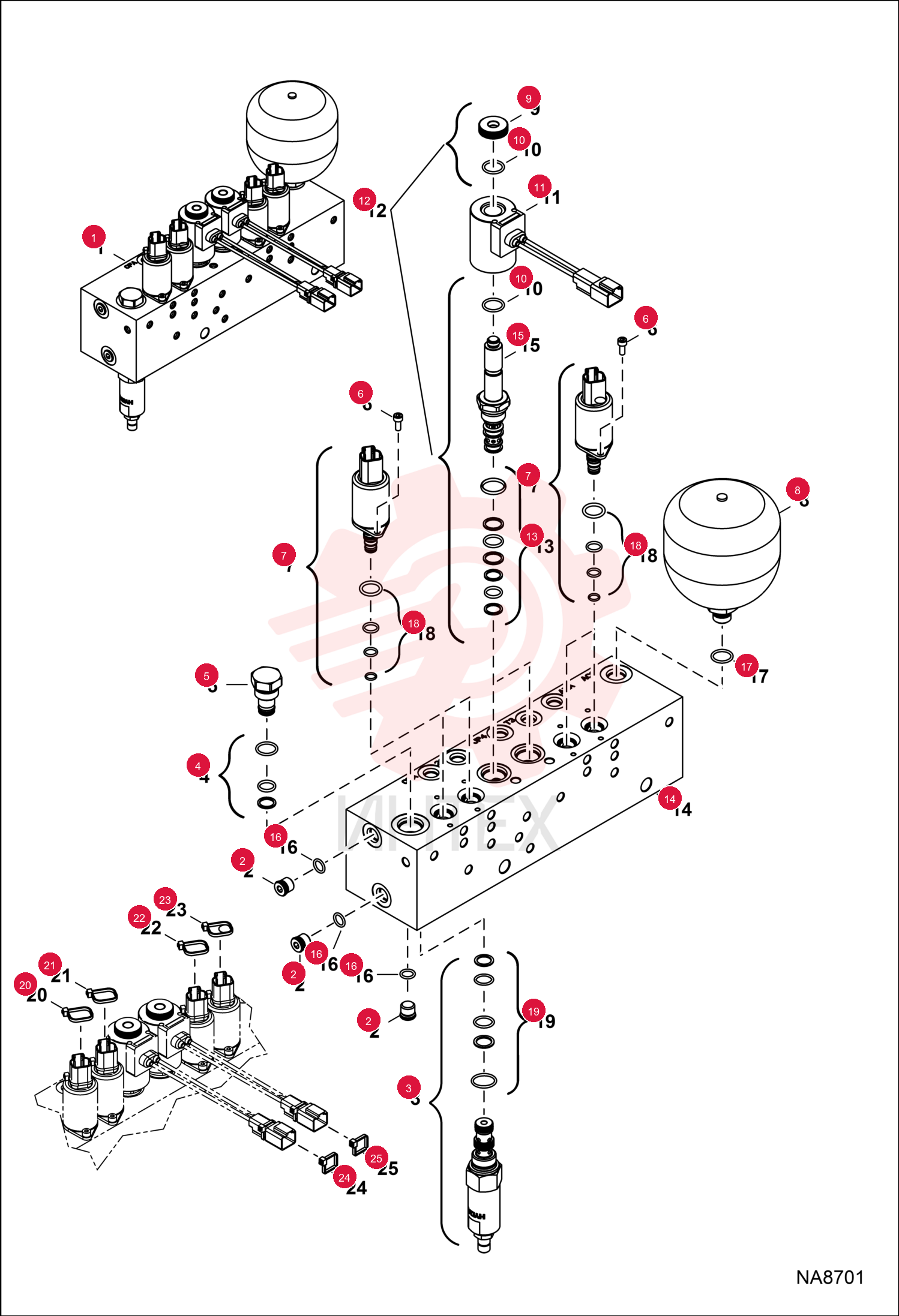

MANIFOLD, HYD ASSY 7231545 (4)

MANIFOLD, HYD ASSY 7231545 (4)

MANIFOLD, HYD ASSY 7231545 (4)

1 7231545

  • 7231545 - MANIFOLD
  • HYD ASSY
  • Ref. 2-25 Ref. 2-25 - NA

2 7281163

  • 7281163 - MANIFOLD
  • HYD ASSY
  • Ref. 2-25 - EMEA

3 7235664

  • 7235664 - PLUG
  • W/Ref. 16

4 7232748

  • 7232748 - VALVE

5 7232750

  • 7232750 - VALVE
  • CHECK
  • Was 6664026

6 3GM410

  • 3GM410 - BOLT

7 7232745

  • 7232745 - VALVE
  • PROPORTIONAL

8 7369457

  • 7369457 - KIT SEAL

9 6669537

  • 6669537 - ACCUMULATOR
  • W/Ref. 17

10 6679076

  • 6679076 - NUT
  • Was 6688625

11 6679509

  • 6679509 - O-RING

12 7010625

  • 7010625 - COIL
  • SOLENOID

13 6678988

  • 6678988 - ASSY
  • VALVE
  • does not include Ref. 11

14 6679078

  • 6679078 - KIT
  • SEAL

15 79K6

  • 79K6 - O RING 10
